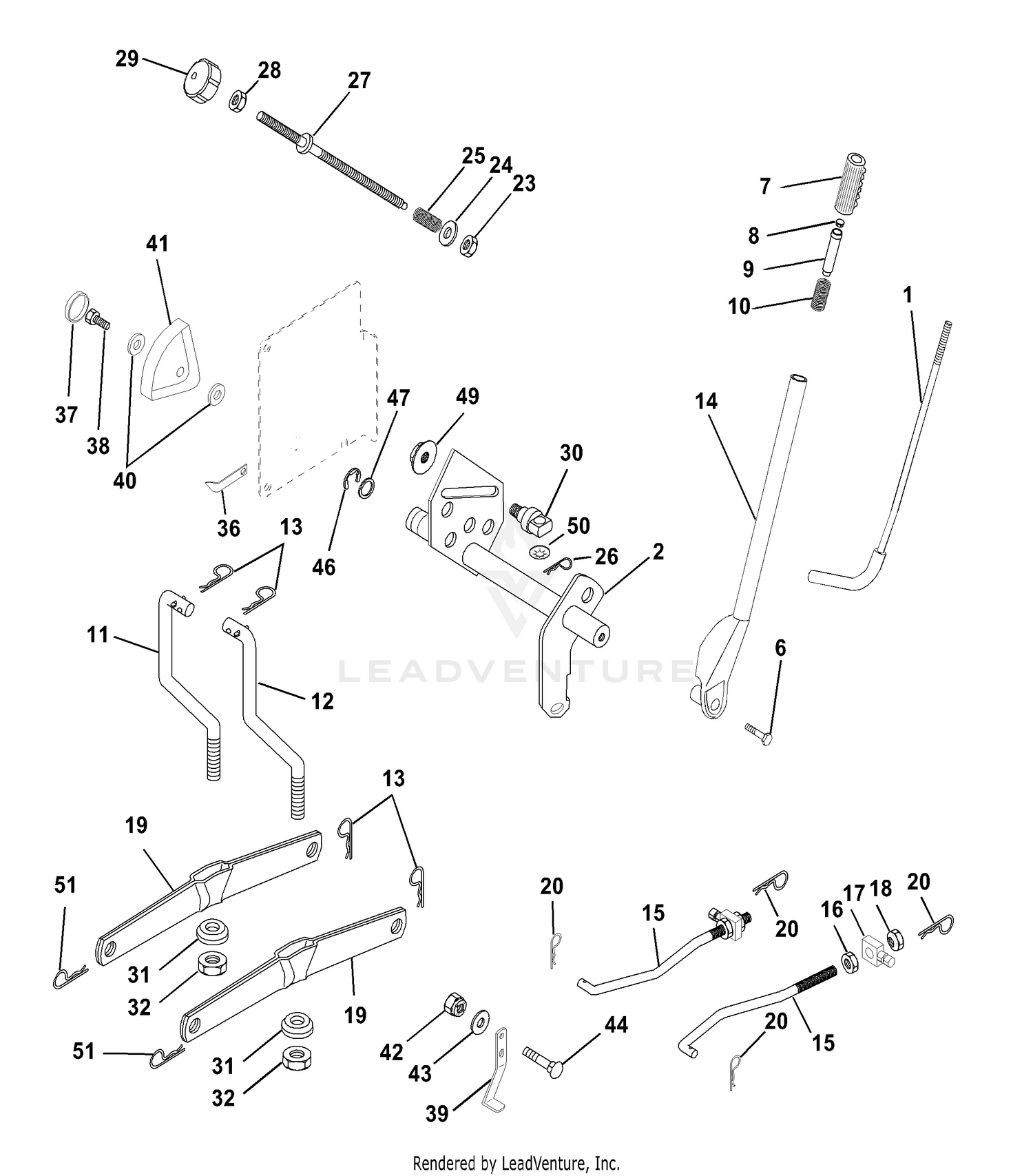

| Ref | Part Number | Description |
|---|
| 1 |
532121006 |
LEVER ROD LT Price: $24.99 |
| 1 |
93-2085-01 |
ROD ASM This part replaces 93-2085. Price: $134.61 |
| 2 |
532159188 |
Shaft Assembly, Lift Price: Call Us |
| 2 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 3 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 4 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 5 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 6 |
33124-020 |
SCREW-CARR Price: $0.88 |
| 6 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99 |
| 7 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 8 |
93-2142 |
DISCONTINUED Price: Call Us |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 9 |
93-2141 |
PLATE - FLOOR *R Price: $148.63 |
| 10 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 10 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 11 |
532145537 |
LIFT LINK LH Price: $22.99 |
| 11 |
94-1371 |
SPACER Price: $14.81 |
| 12 |
532145536 |
LIFT LINK RH Price: $22.99 |
| 12 |
94-1383 |
PEDAL-PIVOT Price: $229.74 |
| 13 |
256-311 |
BUSHING-SPLIT Price: $13.37 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 14 |
33115-090 |
SCREW-HH Price: $13.76 |
| 14 |
532159189 |
LEVER ASSY-LIFT RH Price: $79.99 |
| 15 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 16 |
107-2550 |
CABLE-CONTROL, TRACTION This part replaces 93-2099. Price: $194.40 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 17 |
532175689 |
TRUNNION This part replaces 532130171. Price: $3.99 |
| 18 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 19 |
94-1373 |
BRACKET-LOCK Price: $24.82 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 20 |
94-1372 |
BRACKET-MOW Price: $18.44 |
| 21 |
94-1375 |
TRUNNION-BRACKET, LOCK Price: $23.45 |
| 22 |
94-1374 |
TRUNNION-BRACKET, MOW Price: $14.18 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 23 |
94-1386 |
SHAFT-PEDAL Price: $44.42 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 24 |
94-1304 |
CABLE-LOCK, NEUTRAL Price: $153.45 |
| 25 |
32128-20 |
NUT-HF Price: $0.99 |
| 25 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 26 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 26 |
94-3489 |
SCREW-HH Price: $1.70 |
| 27 |
140-6108 |
PIN-FLAG, NEUTRAL LOCK This part replaces 94-1300. Price: $31.21 |
| 27 |
532126971 |
ROD ADJ LIFT Price: $5.99 |
| 28 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
2411-34 |
JOINT-BALL Price: $29.99 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
3296-13 |
NUT-LOCK, NI Price: $0.34 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 31 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 32 |
33114-016 |
SCREW-HH Price: $0.27 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 33 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 34 |
93-2279 |
CLAMP-CABLE Price: $7.12 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
33115-016 |
SCREW-HH Price: $0.75 |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 37 |
33014-00 |
NUT-HEX Price: $0.25 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 39 |
3220-1 |
NUT-JAM Price: $0.99 |
| 39 |
532142992 |
MOWER STOP Price: $4.99 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 42 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 43 |
596140201 |
Washers This part replaces 819131612. Price: $2.99 |
| 44 |
872240608 |
BOLT Price: $3.99 |
| 46 |
812000022 |
E-RING Price: $3.99 |
| 47 |
819292016 |
Washer Price: $6.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 50 |
532110452 |
NUT PUSH M Price: $2.99 |
