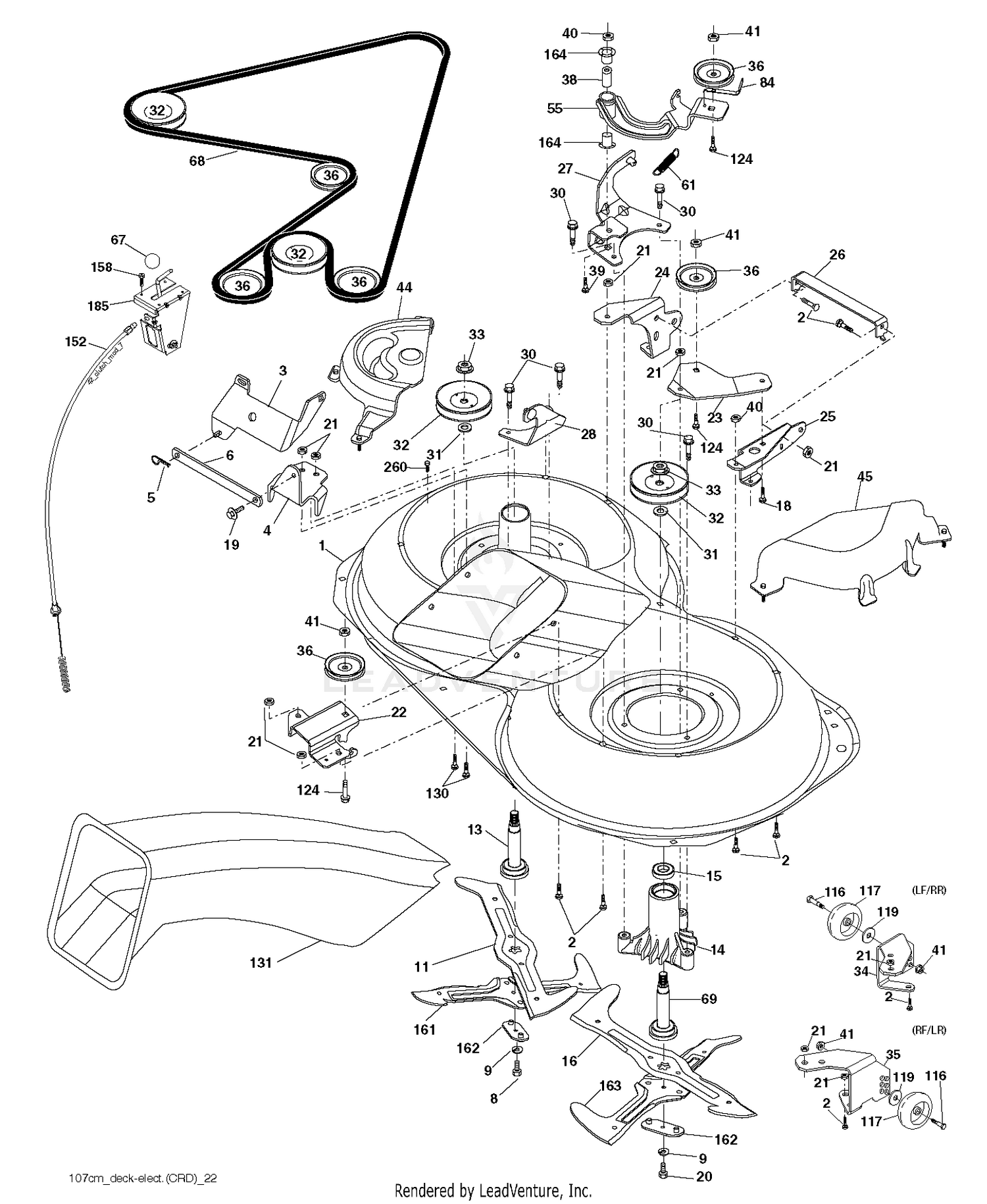

| Ref | Part Number | Description |
|---|
| 1 |
532169160 |
HOUSING Price: Call Us |
| 1 |
76-6010 |
SPACER Price: $18.94 |
| 2 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 2 |
76-4240 |
DISCONTINUED Price: Call Us |
| 3 |
3274-87 |
SCREW-HSFH Price: $1.09 |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $14.99 |
| 4 |
532169167 |
BRACKET Price: $14.76 |
| 4 |
74-3640 |
DISC-MIDDLE Price: $195.30 |
| 5 |
106-1021 |
DISC-ACTUATING This part replaces 74-3630. Price: $320.62 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 6 |
3234-30 |
SCREW-HHF Price: $0.41 |
| 6 |
532165557 |
BAR SWAY Price: $6.99 |
| 8 |
532181712 |
Bolt 3/8-24 x 1.25 Gr. 8 Patched Price: $1.99 |
| 8 |
76-8300-03 |
COVER-HOUSING, AXLE This part replaces 76-8300. Price: $14.53 |
| 9 |
32128-50 |
NUT-FLANGE Price: $1.78 |
| 9 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 10 |
84-1620-03 |
PLATE-SUPPORT, AXLE This part replaces 84-1620. Price: $19.85 |
| 11 |
532180583 |
BLADE.3N1.LH.CRD Price: $24.99 |
| 11 |
92-9704-03 |
HOUSING-AXLE This part replaces 92-9704. Price: $1,379.19 |
| 12 |
92-9708 |
COLLAR-BEARING Price: $30.60 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 13 |
92-9710 |
BEARING Price: $81.81 |
| 14 |
532128774 |
HSG MANDREL Price: $22.99 |
| 14 |
92-9709 |
SPACER-BEARING Price: $75.52 |
| 15 |
32151-76 |
RING-RETAINING, INTERNAL Price: $4.66 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
532180584 |
BLADE.3N1.RH.CRD Price: $49.99 |
| 16 |
92-9714 |
DISCONTINUED Price: Call Us |
| 17 |
86-5900 |
TIRE (26X12-12) 8-PLY Price: $229.98 |
| 18 |
104-0161 |
RIM This part replaces 217-124. Price: $404.23 |
| 18 |
872110606 |
BOLT Price: $2.99 |
| 19 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $2.99 |
| 20 |
23-7270 |
NUT-LUG Price: $10.37 |
| 20 |
532181713 |
Bolt 3/8-24 x 1.25 Gr. 8 Ptch Price: $1.99 |
| 21 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 21 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 22 |
532169165 |
BRACKET Price: $11.99 |
| 22 |
92-9706 |
SPACER-AXLE, FLANGED Price: $89.64 |
| 23 |
112-8446 |
SEAL-V RING This part replaces 92-9712. Price: $4.26 |
| 23 |
532169166 |
BRACKET Price: $22.99 |
| 24 |
532413436 |
Price: $7.99 |
| 24 |
84-1590 |
U-BOLT, FRONT AXLE Price: $23.41 |
| 25 |
325-15 |
SCREW-HH Price: $3.19 |
| 25 |
532400105 |
Price: $9.99 |
| 26 |
532400110 |
Brace Support Susp Frt CRD Price: $3.99 |
| 26 |
86-5430 |
DISCONTINUED Price: Call Us |
| 27 |
325-4 |
SCREW-HH Price: $0.95 |
| 27 |
532169172 |
BRACKET Price: $17.99 |
| 28 |
532169168 |
Price: $9.99 |
| 28 |
92-7774 |
STUD Price: $47.95 |
| 29 |
92-7775 |
DISCONTINUED Price: Call Us |
| 30 |
532173984 |
SCREW, WASHER HEAD Price: $2.99 |
| 30 |
92-7776 |
SPRING-EXTENSION Price: $13.09 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 31 |
92-7777 |
DISCONTINUED Price: Call Us |
| 32 |
532198145 |
Price: $5.99 |
| 32 |
92-7773 |
BALL Price: $13.09 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
532400103 |
Price: $6.99 |
| 35 |
532400104 |
Price: $5.99 |
| 36 |
532146763 |
PULLEY.IDLER.4.25 Price: $14.99 |
| 38 |
532169851 |
SPACER Price: $4.99 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 40 |
873680600 |
LOCKNUT Price: $1.99 |
| 41 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 44 |
532432773 |
Price: Call Us |
| 45 |
532432772 |
Price: Call Us |
| 55 |
532169849 |
ARM IDLER Price: $24.99 |
| 61 |
532199487 |
Price: $2.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $2.99 |
| 68 |
532402009 |
HEX-BELT 107 MOWER Price: $74.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $35.99 |
| 84 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532156085. Price: $4.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8 Price: $1.99 |
| 117 |
532174873 |
WHEEL. GUAGE RALLY Price: $7.99 |
| 119 |
819132012 |
WASHER Price: $2.99 |
| 124 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 130 |
872110506 |
BOLT Price: $3.99 |
| 131 |
532165661 |
CHUTE BAGGER Price: $57.99 |
| 152 |
532176074 |
Cable Clutch Price: Call Us |
| 158 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 161 |
532180424 |
Price: Call Us |
| 162 |
532180878 |
Price: Call Us |
| 163 |
532180425 |
Price: $47.99 |
| 164 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 185 |
532188234 |
HEAD ASM. CABLE CLUTCH Price: $33.99 |
| 260 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
