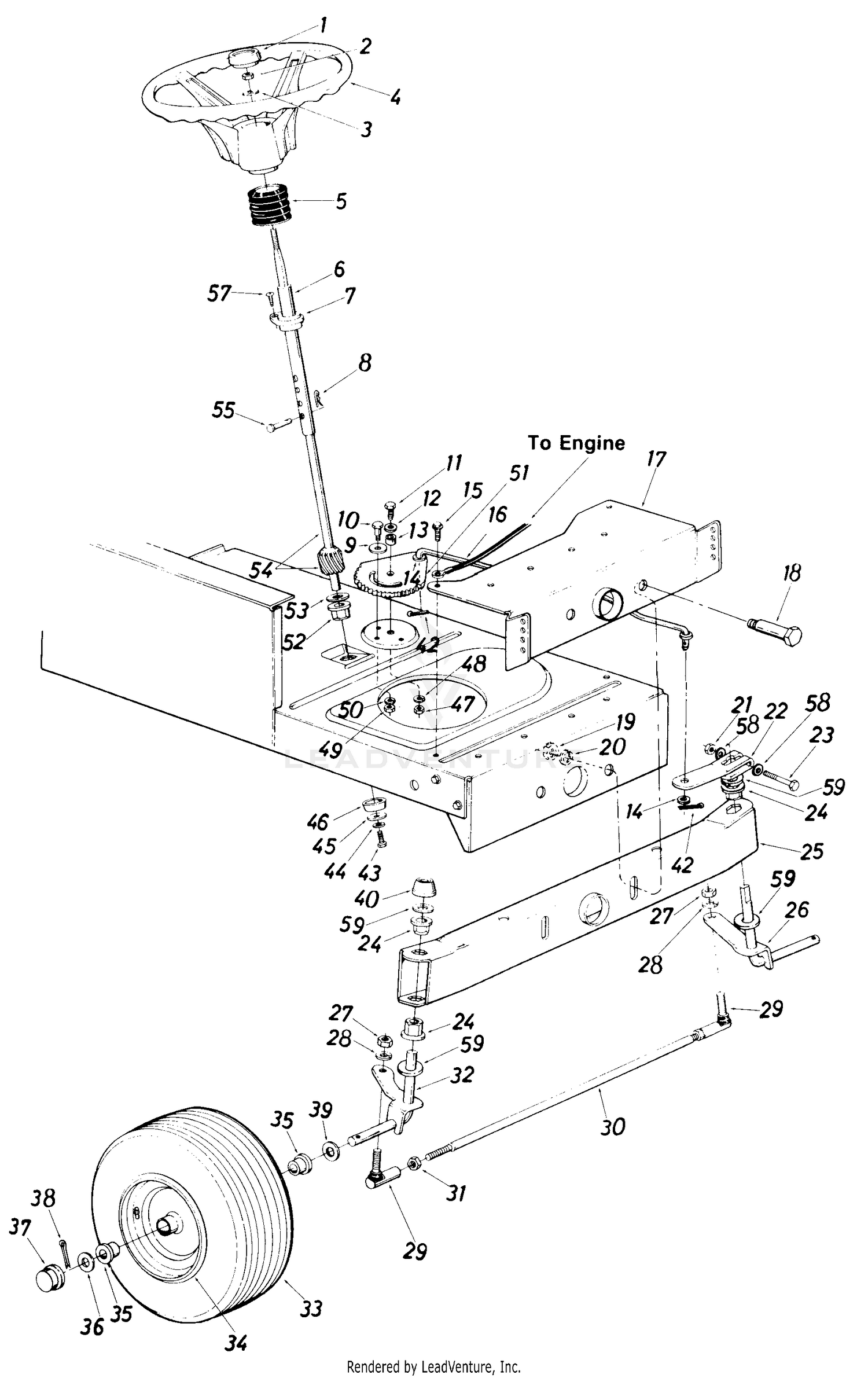

| Ref | Part Number | Description |
|---|
| 1 |
931-0220 |
Steering Wheel Cap This part replaces 731-0220. Price: $7.93 |
| 2 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 3 |
736-0242 |
Belleville Wash. .345" I.D. Price: $3.75 |
| 4 |
731-0219 |
STEERING WHEEL ASSEMBLY Not Available Price: |
| 5 |
731-0559B |
STEERING BELLOW Not Available This part replaces 731-0559. Price: |
| 6 |
14775 |
STEERING C Not Available Price: |
| 7 |
741-0356A |
FLANGE BEARING This part replaces 741-0356. Price: $6.19 |
| 8 |
714-0147 |
Internal Cotter Pin 1/4" Dia. Price: $4.20 |
| 9 |
936-0319 |
Fl-Wash. .438" I.D. x 1.37" O.D. Not Available This part replaces 736-0319. Price: |
| 10 |
938-0141 |
SHOULDER SCREW .437 DIA x .350 Not Available This part replaces 738-0141. Price: |
| 11 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 12 |
936-0206 |
Fl-Wash. .38" I.D. x 1.0" O.D. This part replaces 736-0206. Price: $3.93 |
| 13 |
950-0535 |
Spacer.380" I.D. x .625" O.D. x .227 This part replaces 750-0535. Price: $3.90 |
| 14 |
736-0355 |
Flat Washer .56 I.D. x 1.0 O.D. Not Available Price: |
| 15 |
710-0726 |
Hex Wash. Hd. Self-Tap Scr. Price: $3.82 |
| 16 |
711-0782 |
DRAG LINK:51 Not Available Price: |
| 17 |
14619 |
Front Pivot Brkt. Price: Call Us |
| 18 |
738-0527 |
Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd. Price: $7.90 |
| 19 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 20 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 21 |
712-0237 |
Hex Cent. L-Nut 5/16-24 Thd. Price: $4.37 |
| 22 |
14611 |
STEERING ARM F RONT AXLE Not Available Price: |
| 23 |
710-0772 |
Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5) Price: $3.93 |
| 24 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 25 |
753-0642-0637 |
Pivot Bar Ass'y. This part replaces 14608. Price: $112.11 |
| 26 |
15841 |
KIT-AXLE R Not Available Price: |
| 27 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 28 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 29 |
923-0156 |
Ball Joint This part replaces 723-0156. Price: $15.54 |
| 30 |
711-0613 |
TIE ROD Not Available Price: |
| 31 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 32 |
683-0040 |
FRONT AXLE ASSEMBLY (RH) Not Available This part replaces 15840. Price: |
| 33 |
N/A |
Wheel Ass'y. Comp. |
| 34 |
N/A |
Front Wheel Rim Only |
| 35 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0313. Price: $6.87 |
| 36 |
736-0285 |
Fl-Wash. .635 I.D. x 1.59" O.D. Price: $3.89 |
| 37 |
931-0484A |
Hub Cap This part replaces 731-0484. Price: $5.98 |
| 38 |
714-0470 |
Cotter Pin 118" Dia. x 1.25" Lg. Price: $3.90 |
| 39 |
736-0156 |
Fl-Wash. .635" I.D. x 1.20" O.D. Price: $3.95 |
| 40 |
726-0214 |
Push Cap 518" Dia. Rod Price: $9.11 |
| 42 |
714-0115 |
Cotter Pin 118" Dia. x 1.0" Lg. Price: $3.48 |
| 43 |
710-0538 |
Hex L-Bolt 5/16-18 x .62" Lg.* Price: $4.02 |
| 44 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 45 |
736-0231 |
Fl-Wash. .344" I.D. x 1.25" O.D. Price: $4.02 |
| 46 |
950-0532 |
SPACER Not Available This part replaces 750-0532. Price: |
| 47 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 48 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 49 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 50 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 51 |
917-0468 |
GEAR-SEGMENT Not Available This part replaces 717-0468. Price: |
| 52 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 53 |
736-0187 |
Fl-Wash. (Hardened) Price: $4.02 |
| 54 |
738-0522A |
STEERING SHAFT-LOWER This part replaces 738-0522. Price: $66.57 |
| 55 |
711-0684 |
CLEVIS PIN .25 x 1.00 Not Available Price: |
| 57 |
710-0837 |
Oval Hd. Cr.-Sunk Scr. #10 x 5/8" Lg. Price: $3.85 |
| 58 |
736-0242 |
Bell-Wash. Price: $3.75 |
