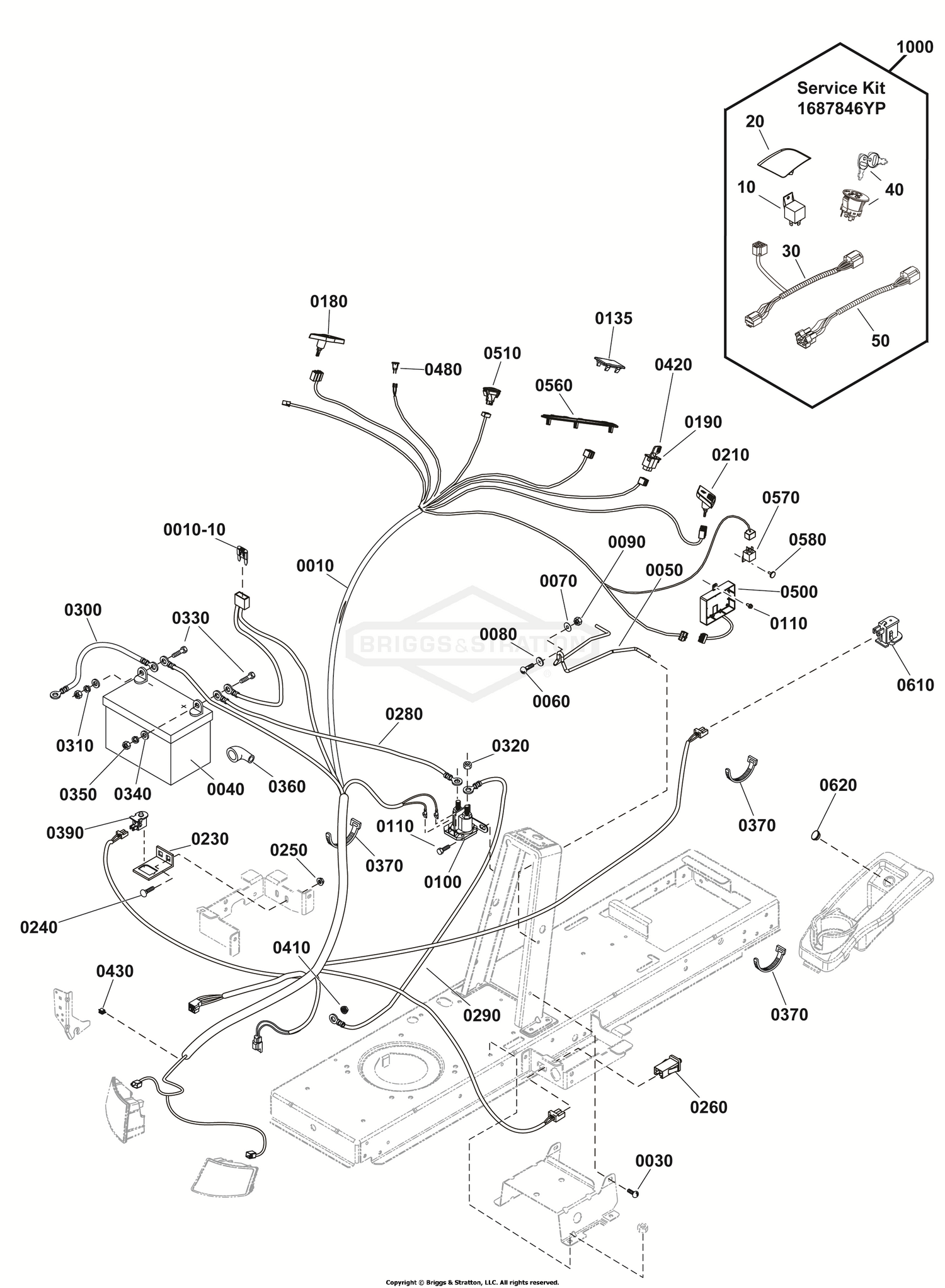

| Ref | Part Number | Description |
|---|
| 0010 |
1738984YP |
WIRING HARNESS Price: $242.49 |
| 0030 |
703949 |
SCREW, 5/16-18.625 This part replaces 1930601SM. Price: $3.40 |
| 0050 |
1730007SM |
HOLD DOWN, Battery Price: $25.50 |
| 0060 |
1931318SM |
BOLT, Carriage, 1/4-20 x 7/8, G5 Price: $3.61 |
| 0070 |
703229 |
WASHER, 1/4 Price: $3.94 |
| 0080 |
703826 |
BOLT, PUSHNUT 1/4 This part replaces 1960518SM. Price: $2.95 |
| 0090 |
703232 |
NUT, 1/4-20, NYLOCK Price: $3.94 |
| 0100 |
1755381YP |
SOLENOID, L-BRACKET Price: $20.93 |
| 0110 |
704130 |
SCREW, HEX, 1/4-20X.5 This part replaces B4300GS. Price: $3.28 |
| 0135 |
1722611SM |
PLUG-HOLE BLACK Price: $5.82 |
| 0180 |
1738982YP |
SWITCH, PTO Price: $40.25 |
| 0190 |
84008079 |
SWITCH This part replaces 1726556SM. Price: $23.99 |
| 0210 |
1738983YP |
SWITCH, Light Price: $34.23 |
| 0230 |
1728026ASM |
SUPPORT, RMO Switch Price: $12.24 |
| 0240 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0250 |
703409 |
NUT, 5/16-18, GR5 Price: $4.92 |
| 0260 |
7022886YP |
SWITCH, DP NO/NC SNAP This part replaces 1732006SM. Price: $13.77 |
| 0280 |
1752685YP |
CABLE, Two Ring, #6 x 10 Price: $10.88 |
| 0290 |
1751450YP |
CABLE,#6 x 25 Price: $10.59 |
| 0300 |
1752686YP |
CABLE, # 6 x 26 Price: $11.86 |
| 0310 |
7090052SM |
SLW, .256X.487X.062 Z Price: $2.88 |
| 0320 |
2860750SM |
NUT-HEX KEPS 5/16-24 Price: $2.55 |
| 0330 |
5025010X6SM |
BOLT, 1/4-20 X 3/4" G This part replaces 1923341SM. Price: $3.29 |
| 0340 |
703332 |
WASHER Price: $3.72 |
| 0350 |
703127 |
NUT Price: $3.06 |
| 0360 |
1677296SM |
BOOT,INSULATOR BATTER Price: $6.00 |
| 0370 |
703586 |
TIE, SELF LOCKING Price: $4.05 |
| 0390 |
1732004SM |
SWITCH-PUSH BUTTON Price: $8.26 |
| 0410 |
703233 |
NUT, 1/4-20, GR5 Price: $3.94 |
| 0420 |
84013445 |
KEY This part replaces 1726557SM. Price: $9.67 |
| 0430 |
2172434SM |
CLIP- WIRE DIA .390 Price: $4.15 |
| 0480 |
791944 |
SWITCH, Starter (Without Key) Price: $12.94 |
| 0510 |
1753667YP |
SWITCH, Push Button Start This part replaces 1739277YP. Price: $40.25 |
| 0560 |
1752934YP |
PLUG, Dash, No Hourmeter Price: $4.55 |
| 0570 |
1726829SM |
RELAY, Single Pole, Double Throw Price: $14.73 |
| 0580 |
1704351SM |
FASTENER, Panel Price: $4.49 |
| 0610 |
7023354YP |
SWITCH, SEAT Price: $11.23 |
| 0620 |
1732007SM |
PLUG, Hole, 7/8 Dia. Price: $3.84 |
