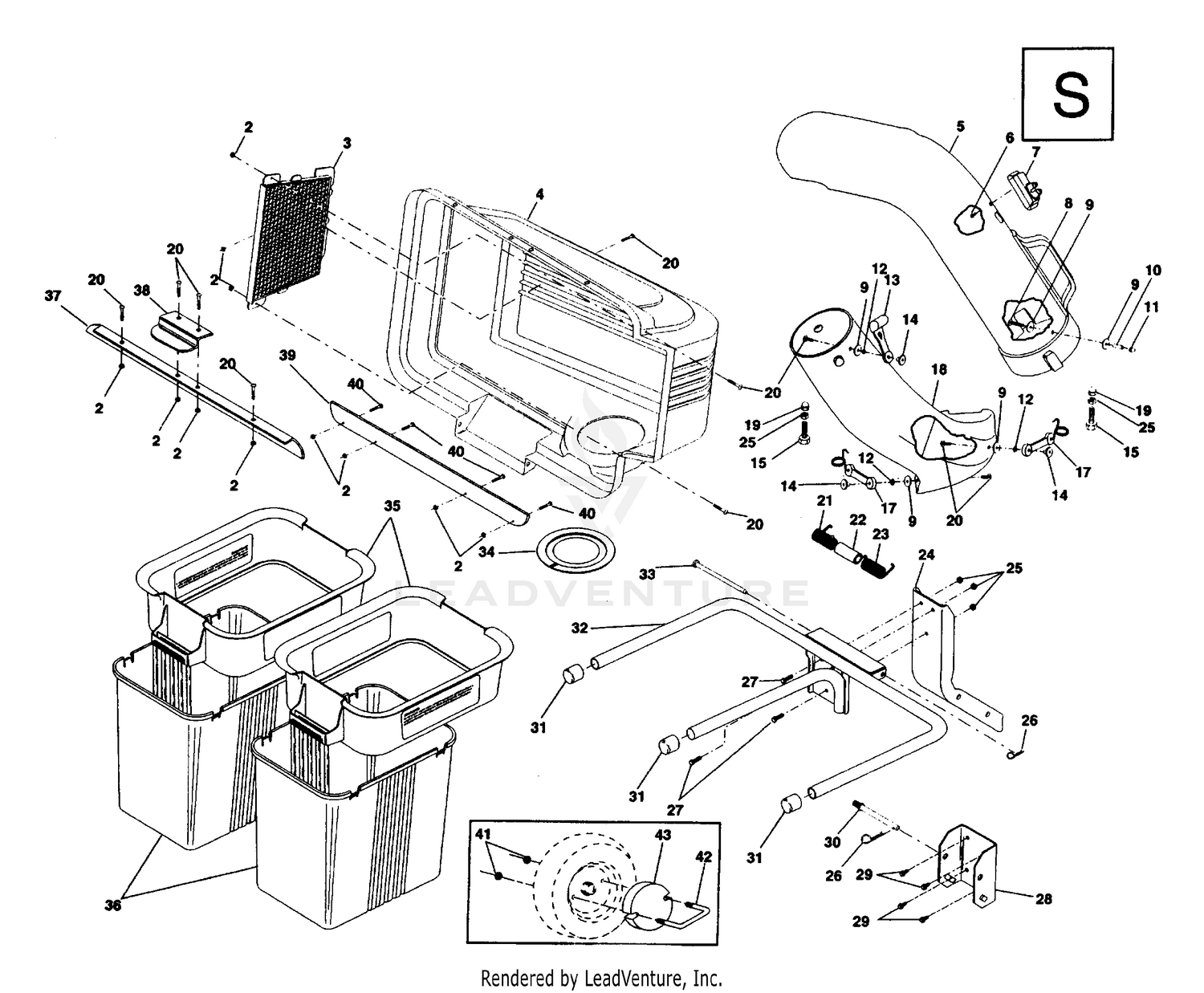

| Ref | Part Number | Description |
|---|
| 1 |
9335044 |
PIN-HAIR Price: $1.29 |
| 2 |
12-8810 |
SPRING-EXTENSION Price: $26.98 |
| 2 |
532069180 |
LOCKNUT Price: $2.99 |
| 3 |
532127533 |
COVER SCREEN Price: $14.99 |
| 3 |
67-7920 |
DECAL Price: $96.70 |
| 4 |
532171061 |
COVER.ASM.BAG.W/STRIP This part replaces 532140654. Price: $89.99 |
| 4 |
80-2570 |
PIN-CLEVIS Price: $9.99 |
| 5 |
532128598 |
CHUTE.UPPER.BAGGER.36" Price: $58.99 |
| 5 |
93-0184 |
DECAL-HOPPER Price: $41.42 |
| 6 |
100-1663 |
PIN-HITCH Price: $14.95 |
| 6 |
818021008 |
SCREW Price: $4.99 |
| 7 |
105-3450 |
GRIP-LEVER, LIFT Price: $6.25 |
| 7 |
532140572 |
INDICATOR DUMP BAG Price: $6.99 |
| 8 |
107-1549 |
HINGE-HALF Price: $18.68 |
| 8 |
874981024 |
SCREW.PAN.HEAD This part replaces 532087175. Price: $4.99 |
| 9 |
119-6227 |
BRACKET-ATTACHMENT, CHUTE EXTENSION Price: $14.38 |
| 9 |
819070816 |
Washer 7/32 x 1/2 x 16 Gauge This part replaces 734114601. Price: $5.99 |
| 10 |
119-6230 |
MOUNT-NOZZLE Price: $4.84 |
| 10 |
532007206 |
SPACER LT Price: $5.99 |
| 11 |
120-6150 |
HOPPER FRAME ASM Price: $3,602.02 |
| 11 |
539108086 |
NUT 10-24 ACORN ZD This part replaces 532060867. Price: $3.99 |
| 12 |
120-6156-01 |
PANEL-BOTTOM, RH Price: $496.19 |
| 12 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 13 |
120-6157-01 |
PANEL-BOTTOM, LH Price: $404.32 |
| 13 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 14 |
120-6158-01 |
PANEL-SIDE Price: $779.84 |
| 14 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 15 |
120-6159 |
PANEL-FLOOR, RH SIDE Price: $381.58 |
| 15 |
596580801 |
Bolts This part replaces 874930516. Price: $2.99 |
| 16 |
120-6160 |
HOPPER ROOF ASM Price: Call Us |
| 17 |
120-6161-01 |
PANEL-CENTER, INSIDE This part replaces 120-6161. Price: $187.77 |
| 17 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130758. Price: $5.99 |
| 18 |
120-6162-01 |
PANEL-HOUSING, UPPER Price: $40.02 |
| 18 |
532128599 |
CHUTE LOWER 36" Price: $99.99 |
| 19 |
120-6163-01 |
PANEL-CENTER, LOWER Price: $174.18 |
| 19 |
532133841 |
ACORN NUT Price: $2.99 |
| 20 |
120-6164-01 |
PANEL-CLOSEOFF Price: $46.52 |
| 20 |
874291010 |
SCREW.10-24X5/8 Price: $2.99 |
| 21 |
120-6166-01 |
PANEL-UPPER CLOSEOFF Price: $17.96 |
| 21 |
532132796 |
SPRING COVER LH Price: $5.99 |
| 22 |
120-6167-01 |
SEAL-CHUTE, SIDE Price: $43.49 |
| 22 |
532133235 |
SPACER.COVER.BAGGER Price: $5.99 |
| 23 |
120-6168-01 |
SEAL-DOOR, TOP Price: $113.89 |
| 23 |
532132983 |
SPRING COVER RH Price: $5.99 |
| 24 |
121-2877 |
SEAL-DOOR, SIDE Price: $84.02 |
| 24 |
532127720 |
SUPPORT POST Price: $13.00 |
| 25 |
120-6173 |
PANEL-FLOOR, LH SIDE Price: $468.28 |
| 26 |
121-2767-01 |
SEAL-DOOR, BOTTOM Price: $115.15 |
| 27 |
121-2768-01 |
SCREEN, FLOOR Price: $225.25 |
| 27 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 28 |
121-2769 |
PLATE-HINGE BACKING Price: $4.60 |
| 28 |
532170053 |
MOUNTING BRACKET, BAGGER This part replaces 532130889. Price: $11.99 |
| 29 |
321-15 |
SCREW-HH Price: $0.61 |
| 29 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 30 |
321-8 |
SCREW-HH Price: $0.34 |
| 30 |
532131137 |
SUPPORT POST PIN Price: $11.99 |
| 31 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 31 |
532174083 |
PLUG, TUBING END This part replaces 532134496. Price: $5.99 |
| 32 |
3229-34 |
SCREW-CARR Price: $1.99 |
| 32 |
532126919 |
BAGGER FRAME Price: $64.99 |
| 33 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 33 |
532192786 |
BAGGER.HINGE.PIN This part replaces 532128600. Price: $14.99 |
| 34 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 34 |
532127534 |
GASKET.COVER.BAGGER Price: $11.99 |
| 35 |
32105-32 |
SCREW-TTH Price: $0.89 |
| 35 |
532183286 |
CONTAINER TOP This part replaces 532129585. Price: $29.99 |
| 36 |
32128-32 |
NUT-HHF Price: $2.69 |
| 36 |
532129586 |
CONTAINER BOTTOM Price: $59.99 |
| 36 |
532400226 |
CONTAINER BAG, SOFT This part replaces 532132431. Price: $69.99 |
| 37 |
107069 |
CLIP Price: $1.79 |
| 37 |
532132256 |
SEAL.COVER.BAGGER Price: $7.99 |
| 38 |
32128-33 |
NUT-HF Price: $0.25 |
| 38 |
532130895 |
LATCH CER38 Price: $5.99 |
| 39 |
532155042 |
STRIP.REINFORCE.BAGGER.2BIN.BL This part replaces 532135495. Price: $11.99 |
| 40 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $7.99 |
| 41 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 42 |
532137031 |
U-BOLT Price: $2.42 |
| 43 |
532123635 |
WEIGHT, FRT WHEEL Price: $53.79 |
