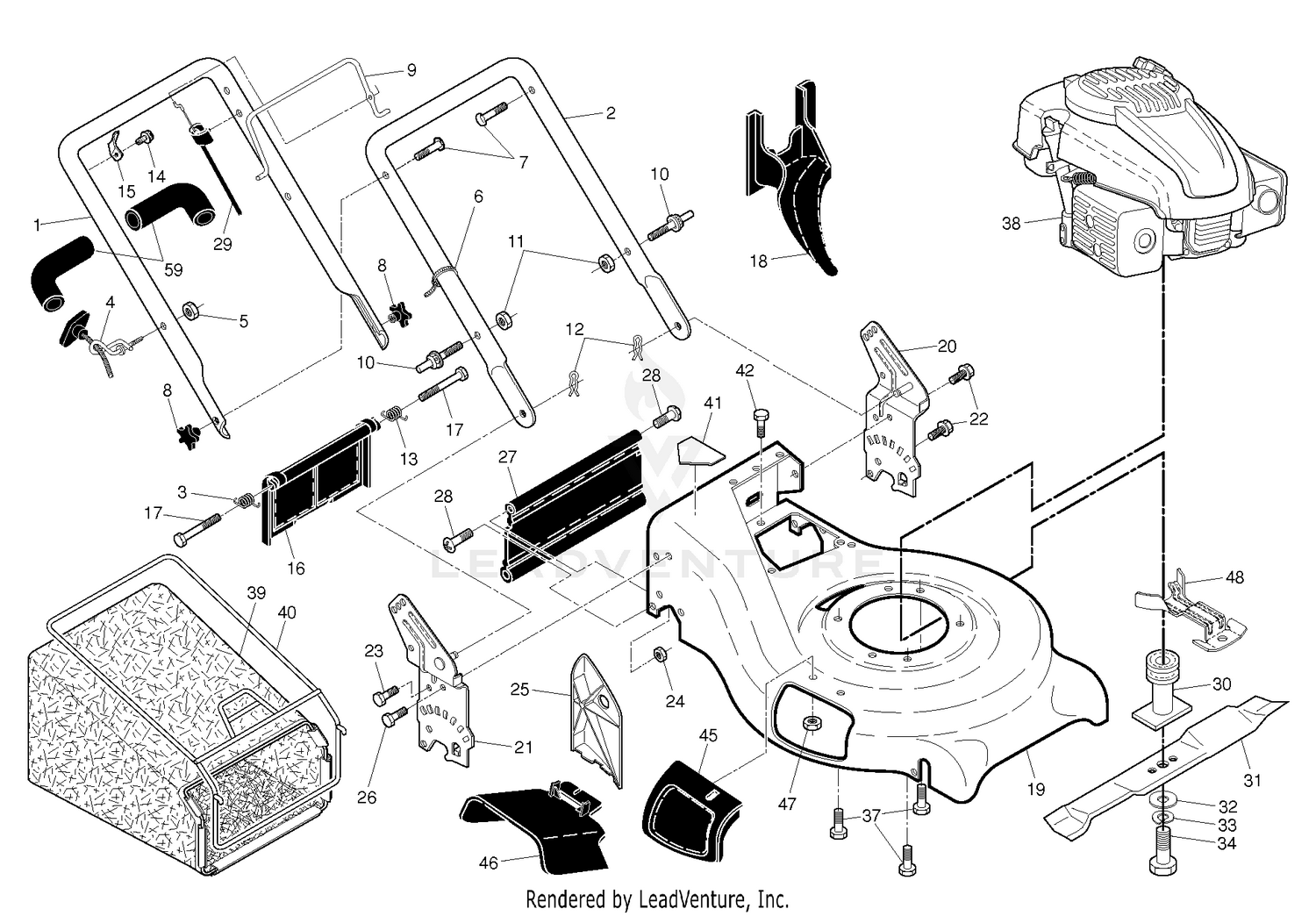

| Ref | Part Number | Description |
|---|
| 1 |
532186296 |
HANDLE.ASM.UPPER.W/GRIP Price: $44.99 |
| 2 |
532197202 |
HANDLE.LOWER.21.GREY Price: $19.99 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 7 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 8 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 9 |
532426812 |
BAIL.CONTROL.MZR.BS.ORANGE Price: $37.99 |
| 10 |
532188821 |
BOLT Price: $4.99 |
| 11 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 12 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 14 |
532178848 |
SCREW Price: $3.99 |
| 15 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 16 |
532401815 |
DOOR.REAR.21.RWGD This part replaces 532408888. Price: $14.99 |
| 18 |
532198170 |
PLUG.MULCHER.RGD.21. Price: $32.99 |
| 19 |
532407535 |
HOUSING.21.RWD.ORANGE.WALK. Price: $139.99 |
| 22 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 23 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 24 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 25 |
532161333 |
CLIPPING DEFLECTOR Price: $9.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
532408442 |
SKIRT.REAR.21.RWGD.BLACK(2 2M) Price: $8.99 |
| 28 |
532088652 |
HINGE SCREW Price: $3.99 |
| 29 |
532427497 |
CABLE.MZR.50.SNAP-IN This part replaces 532197740. Price: $12.99 |
| 30 |
532421176 |
ADAPTER.BLADE/PULLEY.25M Price: $24.99 |
| 32 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 33 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 37 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 39 |
581002901 |
GBAG.93230010.BLK.GEN This part replaces 532425667. Price: $38.99 |
| 40 |
532411951 |
FRAME.GBAG.21.RWGD.SC Price: $59.99 |
| 41 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 42 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 45 |
532183058 |
DOOR.ASM.MULCH.21.RWD This part replaces 532190510. Price: $99.99 |
| 46 |
532169699 |
DEFLECTOR.21.MCUT.RWGD.GRAY This part replaces 532190512. Price: $8.99 |
| 47 |
532088349 |
NUT Price: $3.99 |
| 48 |
532429001 |
BRACKET.ENG/BELTKEEPER.BZP Price: $5.99 |
| 59 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
