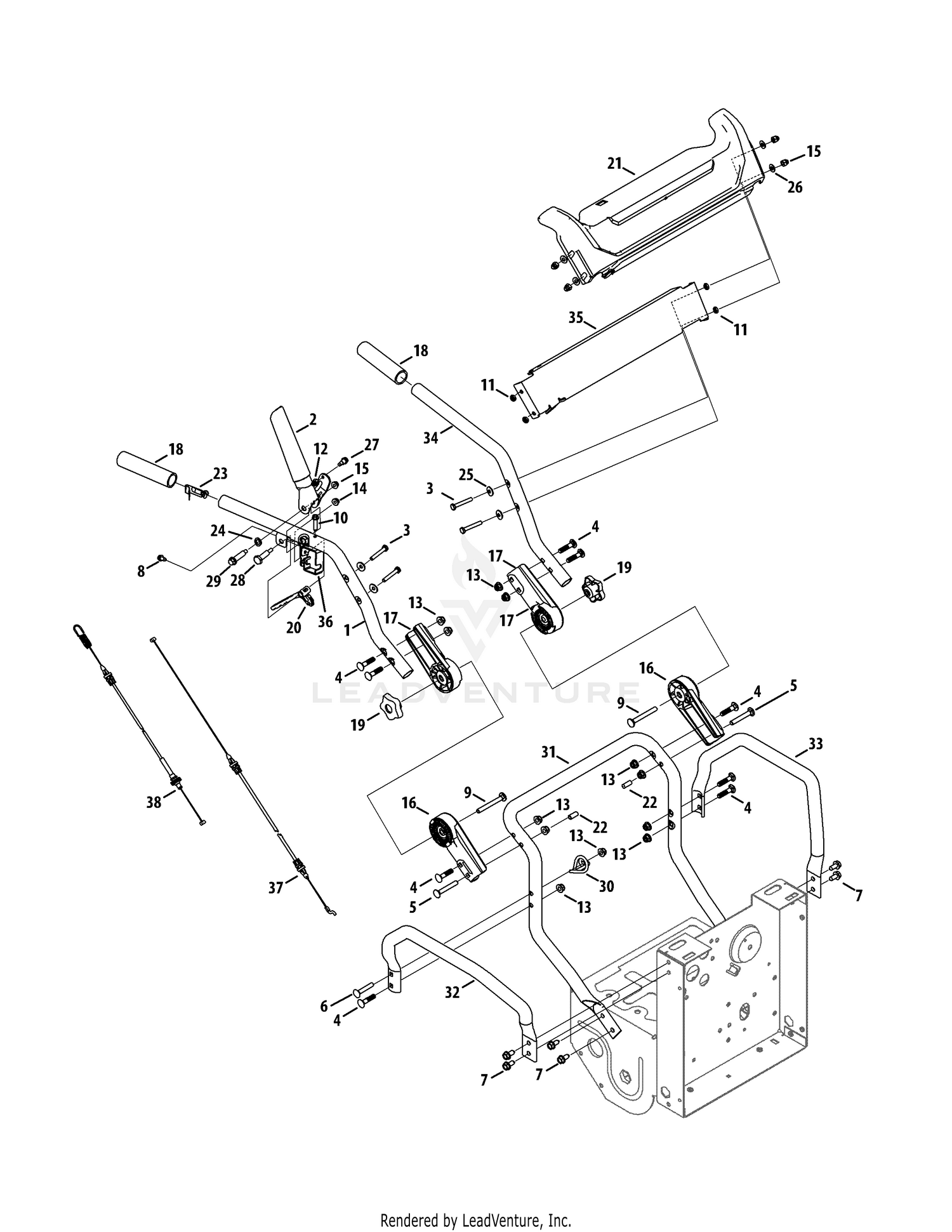

| Ref | Part Number | Description |
|---|
| 1 |
649-05060A-0638 |
UPPER HANDLE ASSEMBLY (RH)(MTD RED) Not Available Price: |
| 2 |
687-05136A |
LEVER ASSEMBLY(RH) Not Available This part replaces 687-05136. Price: |
| 3 |
710-0136 |
Hex Cap Screw, 1/4-20 x 1.75 Price: $3.66 |
| 4 |
710-0262 |
Carriage Bolt, 5/16-18 x 1.50 Price: $3.66 |
| 5 |
710-0572 |
Carriage Screw, 5/16-18 x 2.25 Price: $3.75 |
| 6 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 7 |
710-05424 |
Self Tapping Screw, 5/16-18 x .750 Price: $2.94 |
| 8 |
710-0599 |
Hex Washer Screw, 1/4-20 x .500 Price: $3.86 |
| 9 |
710-06075 |
Carriage Bolt, 5/16-18 x 2.75 Price: $6.01 |
| 10 |
710-3288 |
Self-tapping Screw, 1/4-20 x 1.25 Price: $5.94 |
| 11 |
912-0298 |
Jam Nut, 1/4-20 Price: $5.38 |
| 12 |
712-0392 |
Nut, 1/4-28, Lock Price: $6.01 |
| 13 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 14 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 15 |
712-0442 |
Cap Lock Nut, 1/4-20 This part replaces 912-0442. Price: $6.01 |
| 16 |
719-05180 |
Lower Handle Adjustment Price: $30.86 |
| 17 |
719-05195A |
UPPER ADJUST HANDLE Not Available This part replaces 719-05195. Price: |
| 18 |
720-0274 |
Grip, 1.0 x 5.0 Price: $9.99 |
| 19 |
720-05028 |
Star Knob, 5/16-18 Price: $3.70 |
| 20 |
731-11124A |
Drive Lever Price: $5.52 |
| 21 |
731-11125 |
HANDLE COVER Not Available Price: |
| 22 |
N/A |
Cap |
| 23 |
732-05328 |
SPRING Not Available Price: |
| 24 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 25 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 26 |
736-0463 |
Washer, Flat, .25 x .630 x .0515 This part replaces 936-0463. Price: $3.91 |
| 27 |
738-04425 |
SHOULDER SCREW Price: $3.60 |
| 28 |
938-0572 |
Shoulder Screw, .374 x 1.16 Price: $7.03 |
| 29 |
738-1226 |
Shoulder Screw This part replaces 938-1226. Price: $6.73 |
| 30 |
747-06516A |
Rope Guide Price: $5.52 |
| 31 |
749-05271A-0638 |
LOWER HANDLE (MTD RED) Not Available Price: |
| 32 |
749-05327-0638 |
CART FRAME TUBE (RH)(MTD RED) Not Available This part replaces 749-05327A-0638. Price: |
| 33 |
749-05328-0638 |
CART FRAME TUBE (LH)(MTD RED) Not Available This part replaces 749-05328A-0638. Price: |
| 34 |
749-05404-0638 |
UPPER HANDLE (LH) (MTD RED) Not Available Price: |
| 35 |
787-03375B-0637 |
HANDLE PANEL This part replaces 787-03375A-0637. Price: $42.88 |
| 36 |
787-03443-0638 |
Cable Support Bracket Not Available Price: |
| 37 |
946-05219 |
Engagement Cable Price: $27.62 |
