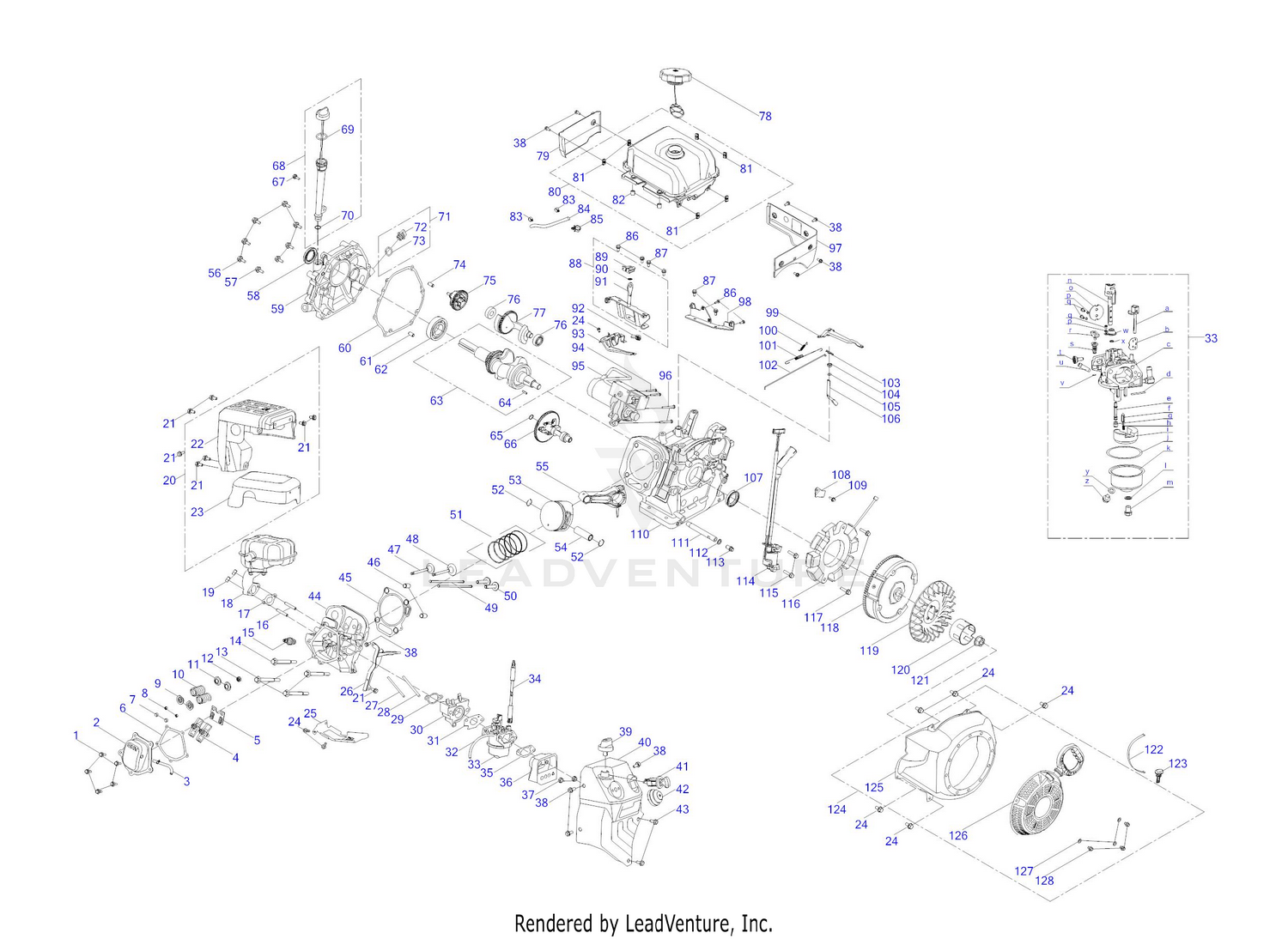

| Ref | Part Number | Description |
|---|
| a |
None |
Choke Shaft |
| b |
None |
Choke Plate |
| c |
None |
Carburetor Body |
| d |
None |
Float Pin |
| e |
None |
Nozzle Tube |
| f |
None |
Needle Valve |
| g |
None |
Main Jet |
| h |
None |
Needle Valve Spring |
| i |
None |
Float |
| j |
951-11970 |
O-Ring, Float Bowl Price: $5.95 |
| k |
951-15487 |
Float Bowl Price: $8.96 |
| l |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| m |
710-04945 |
Bolt Price: $3.66 |
| n |
None |
Throttle Shaft |
| o |
None |
Throttle Plate |
| p |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| q |
None |
Screw, M3X6 |
| r |
None |
Idle Jet Rivet |
| s |
None |
Idle Jet |
| t |
None |
Idle Adjusting Screw |
| u |
None |
Venting Hose |
| v |
None |
Primer Line |
| w |
None |
Throttle Shaft Sleeve |
| x |
None |
Gasket |
| y |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| z |
710-04938 |
FUEL DRAIN PLUG Price: $3.66 |
| 1 |
710-05054 |
Bolt, M6X16 Price: $5.38 |
| 2 |
951-11220 |
Valve Cover Price: $31.06 |
| 3 |
951-15424 |
Breather Hose Price: $7.16 |
| 4 |
951-11981A |
ROCKER ARM ASSEMBLY This part replaces 951-15353. Price: $35.16 |
| 5 |
951-11965B |
PUSH ROD GUIDE This part replaces 951-11965A. Price: $5.75 |
| 6 |
951-15425A |
VALVE COVER GASKET This part replaces 951-15425. Price: $9.59 |
| 7 |
951-12269 |
Exhaust Valve Adjuster This part replaces 951-12081. Price: $5.48 |
| 8 |
951-14912A |
VALVE CAP This part replaces 951-14912. Price: $3.03 |
| 9 |
951-14911A |
VALVE SPRING SEAT This part replaces 951-14911. Price: $4.64 |
| 10 |
951-15812 |
Valve Spring Price: $6.88 |
| 11 |
951-12077A |
VALVE SPRING RETAINER This part replaces 951-12077. Price: $3.49 |
| 12 |
951-11964A |
INTAKE VALVE SEAL This part replaces 951-11964. Price: $9.96 |
| 13 |
710-06064 |
Bolt, M10X1.25X87 Price: $5.72 |
| 14 |
710-06065 |
Bolt, M10X1.25X65 Price: $5.53 |
| 15 |
951-10292A |
SPARK PLUG (F6RTC/RN11YC/BPR6ES) This part replaces 951-10292. Price: $6.35 |
| 16 |
710-04964 |
Stud, M8X48.5 Price: $5.48 |
| 17 |
951-11212A |
MUFFLER GASKET This part replaces 951-11212. Price: $4.81 |
| 18 |
951-15426A |
MUFFLER This part replaces 951-15426. Price: $80.84 |
| 19 |
751-15427 |
Nut, M8 Price: $3.64 |
| 20 |
951-05388 |
Muffler Guard Price: $69.86 |
| 21 |
710-04914 |
Bolt, M6X10 Price: $3.71 |
| 22 |
None |
Muffler Shroud |
| 23 |
None |
Muffler Inner Shield |
| 24 |
710-04915 |
Bolt, M6X12 Price: $3.82 |
| 25 |
951-11317 |
Shroud Price: $25.21 |
| 26 |
951-15430 |
Snow Guard Price: $13.06 |
| 27 |
951-15432 |
Stud, M6-8X108 Price: $5.37 |
| 28 |
751-20209 |
STUD M6 x 123 This part replaces 951-15433. Price: $2.45 |
| 29 |
951-15434A |
CARBURETOR INSULATOR GASKET This part replaces 951-15434. Price: $6.24 |
| 30 |
751P11316A |
INSULATOR This part replaces 951-11316. Price: $7.61 |
| 31 |
951-15435 |
Carburetor Gasket Price: $6.24 |
| 32 |
935-05038 |
Fuel Hose, 3.2X6.5X170 Price: $11.24 |
| 33 |
951-05409 |
Carburetor Price: $87.78 |
| 34 |
951-15436 |
Choke Linkage Price: $5.37 |
| 35 |
951-15448 |
Gasket, Air Filter Price: $7.16 |
| 36 |
951-15449 |
Heater Box Price: $9.13 |
| 37 |
712-05015 |
Nut, M6 Price: $5.78 |
| 38 |
710-04916 |
Bolt, M6X14 Price: $3.86 |
| 39 |
951-15450A |
CHOKE KNOB This part replaces 951-15450. Price: $6.35 |
| 40 |
951-15452 |
Control Panel Price: $23.70 |
| 41 |
951-15022A |
ENGINE KEY SWITCH ASSEMBLY This part replaces 951-15022. Price: $9.61 |
| 42 |
951-10639B |
PRIMER This part replaces 951-10639A. Price: $13.84 |
| 43 |
710-05192 |
Bolt, M6X20 Price: $5.38 |
| 44 |
None |
Cylinder Head |
| 45 |
951-12094 |
Gasket, Cylinder Head Price: $11.31 |
| 46 |
715-04097 |
Pin, 12X20 Price: $5.34 |
| 47 |
951-15814 |
Exhaust Valve Price: $17.21 |
| 48 |
951-15777 |
Intake Vavle Price: $17.52 |
| 49 |
951-14226A |
PUSH ROD This part replaces 951-14226. Price: $9.70 |
| 50 |
951-11962A |
TAPPET This part replaces 951-11962. Price: $5.88 |
| 51 |
951-12593 |
Piston Ring Set Price: $23.74 |
| 52 |
951-11953A |
PISTON PIN SNAP RING This part replaces 951-11953. Price: $3.42 |
| 53 |
951-12092 |
Piston Price: $30.43 |
| 54 |
951-11954A |
PISTON PIN This part replaces 951-11954. Price: $7.31 |
| 55 |
951-11951 |
Connecting Rod Assembly Price: $68.39 |
| 56 |
710-06061 |
Bolt, M8X38 Price: $5.67 |
| 57 |
710-06289 |
Bolt, M8X45 Price: $3.89 |
| 58 |
951-11375A |
OIL SEAL This part replaces 951-11375. Price: $13.55 |
| 59 |
951-15454 |
Crankcase Cover Price: $107.48 |
| 60 |
951-15455A |
CRANKCASE COVER GASKET This part replaces 951-15455. Price: $12.54 |
| 61 |
715-04102 |
Pin, 9X12 Price: $4.93 |
| 62 |
951-15456 |
Bearing, 6207 Price: $24.17 |
| 63 |
951-05407 |
Crankshaft Price: $176.98 |
| 64 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 65 |
736-04476 |
Washer, 16.2X0.3X24 Price: $5.01 |
| 66 |
951-11959B |
CAMSHAFT This part replaces 951-11959A. Price: $59.85 |
| 67 |
710-05003A |
BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11 |
| 68 |
951-05391A |
DIPSTICK OIL ASSEMBLY This part replaces 951-05391. Price: $23.25 |
| 69 |
921-04663A |
O-RING This part replaces 921-04663. Price: $5.05 |
| 70 |
951-15459 |
O-Ring, 13.5X2.5 Price: $3.56 |
| 71 |
951-05392A |
OIL DRAIN PLUG This part replaces 951-05392. Price: $6.35 |
| 72 |
None |
Oil Plug |
| 73 |
951-11960 |
O-Ring, 16X3 Price: $3.78 |
| 74 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 75 |
951-11956 |
Governor Gear Price: $36.12 |
| 76 |
951-15463 |
Bearing, 6202 Price: $10.75 |
| 77 |
951-12095 |
Balance Shaft Price: $105.41 |
| 78 |
951-15172A |
FUEL CAP This part replaces 951-15172. Price: $15.87 |
| 79 |
951-15464 |
Decorative Sheet, Right Price: $6.79 |
| 80 |
951-05394 |
Fuel Tank Price: $98.33 |
| 81 |
951-15465A |
THREADED TAB This part replaces 951-15465. Price: $2.82 |
| 82 |
951-15466 |
Bush, 10X14X14 Price: $2.94 |
| 83 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 84 |
951-15467 |
Fuel Hose, 6.3X12.5X255 Price: $16.11 |
| 85 |
723-04071A |
FUEL LINE SUPPORT CLAMP This part replaces 723-04071. Price: $2.77 |
| 86 |
710-06537 |
Bolt, M8X28 Price: $3.23 |
| 87 |
710-04921 |
Bolt, M8X14 Price: $4.75 |
| 88 |
951-05395 |
Front Bracket, Fuel Tank Price: $20.39 |
| 89 |
951-15469 |
Rubber Grommet Price: $3.38 |
| 90 |
951-15470 |
Retaining Ring, 10 Price: $3.71 |
| 91 |
951-15471 |
Front Bracket, Fuel Tank Price: $19.19 |
| 92 |
751P10757A |
THROTTLE LEVER KNOB This part replaces 951-10757. Price: $6.01 |
| 93 |
951-11311 |
Governor Gear Bracket Assembly Price: $41.63 |
| 94 |
751-15472 |
Screw, M4X48 Price: $4.29 |
| 95 |
951-15492 |
Electric Starter Price: $386.66 |
| 96 |
710-04967 |
Bolt, M8X55 Price: $5.59 |
| 97 |
951-15474A |
FUEL TANK FRONT PANEL This part replaces 951-15474. Price: $10.04 |
| 98 |
951-15475 |
Fuel Tank Base Price: $13.41 |
| 99 |
951-14217 |
Governor Lever Price: $10.75 |
| 100 |
951-11306 |
Governor Spring Price: $3.55 |
| 101 |
951-15476 |
Idle Spring Price: $6.79 |
| 102 |
951-11309 |
Throttle Linkage Price: $3.45 |
| 103 |
714-04077 |
Cotter Pin Price: $5.30 |
| 104 |
951-11958 |
Oil Seal, 8X14X4 Price: $3.56 |
| 105 |
736-04453 |
Washer, 8X0.8X20 Price: $5.34 |
| 106 |
951-15477 |
Governor Gear Shaft Price: $7.16 |
| 107 |
951-11499A |
OIL SEAL This part replaces 951-11499. Price: $12.13 |
| 108 |
951-11186 |
Wire Board Price: $4.44 |
| 109 |
710-04966 |
Bolt, M6X8 Price: $5.30 |
| 110 |
951-14222 |
Crankcase Price: $343.20 |
| 111 |
951-11350A |
OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05 |
| 112 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 113 |
710-04906 |
Earth Bolt Price: $5.86 |
| 114 |
951-15478 |
Ignition Module Price: $71.22 |
| 115 |
710-05350 |
Bolt, M6X28 Price: $3.53 |
| 116 |
951-15479 |
Charging Coil Price: $85.49 |
| 117 |
710-04969 |
Bolt, M6X30 Price: $3.66 |
| 118 |
951-12556 |
Flywheel Price: $178.45 |
| 119 |
951-11313A |
COOLING FAN This part replaces 951-11313. Price: $44.17 |
| 120 |
951-11314 |
Starter Cup Price: $16.55 |
| 121 |
712-05169 |
Nut, M16X1.5 Price: $7.30 |
| 122 |
725-06031 |
Tape, L=150mm Price: $2.04 |
| 123 |
951-10630 |
Stop Switch Key Price: $6.07 |
| 124 |
951-05396 |
Recoil Starter Price: $73.14 |
| 125 |
951-15481 |
Blower Housing Price: $41.64 |
| 126 |
951-05397A |
RECOIL START ASSEMBLY This part replaces 951-05397. Price: $49.96 |
| 127 |
736-04455B |
FLAT WASHER This part replaces 736-04455. Price: $5.94 |
| 128 |
710-06354 |
Bolt, M6X10 Price: $5.73 |
