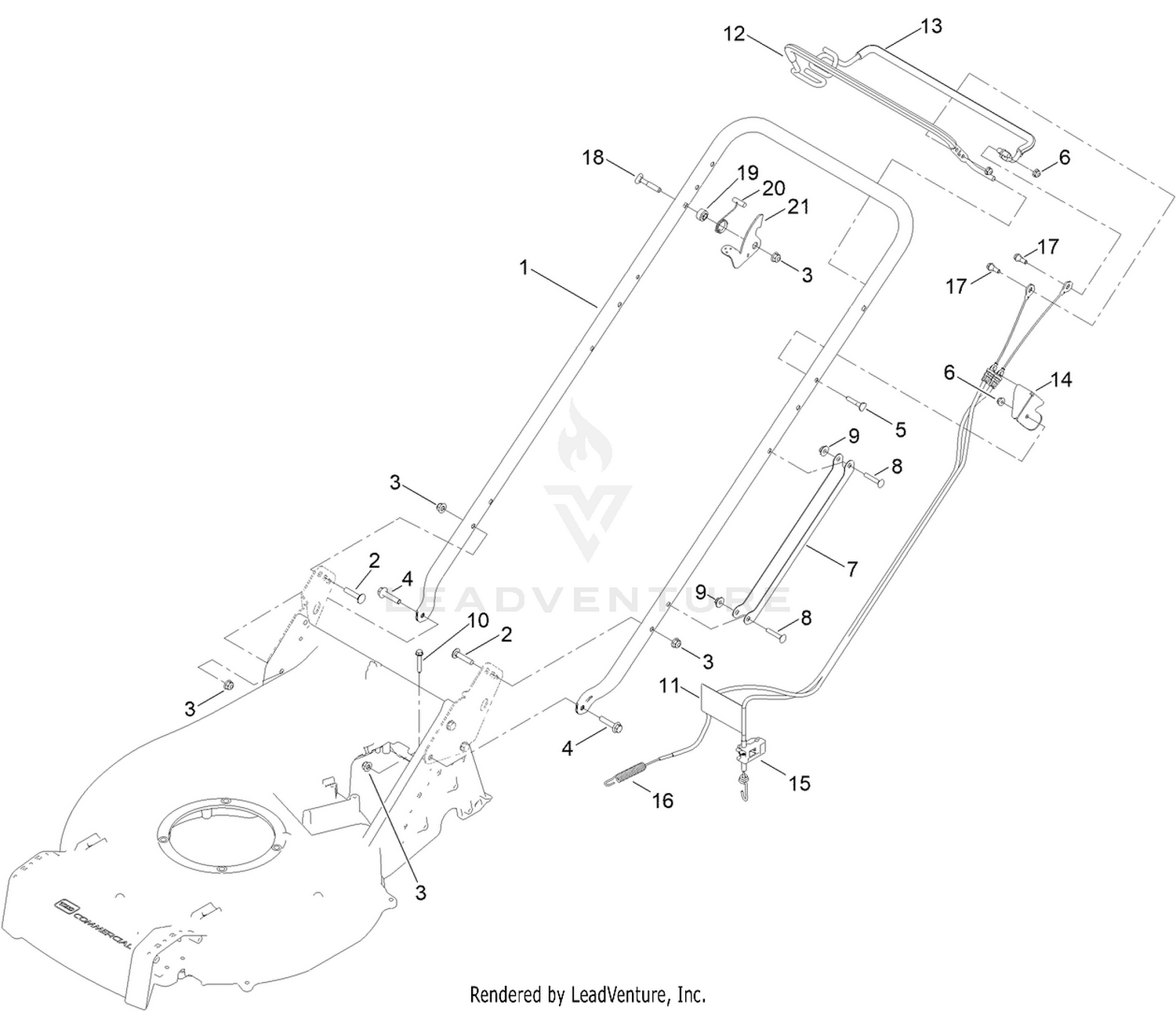

Handle Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-4817-03 | HANDLE Price: $106.99 |
| 2 | 3230-4 | BOLT-CARR Price: $0.47 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 115-1794 | SCREW-HHF Price: $1.73 |
| 5 | 117-7737 | SCREW-HANDLE Price: $1.99 |
| 6 | 104-7201 | NUT-HF Price: $0.69 |
| 7 | 127-6897-03 | GUARD-CABLE, HANDLE Price: $8.99 |
| 8 | 108-0988 | SCREW-CARR Price: $0.79 |
| 9 | 114-3778 | NUT-HF Price: $1.29 |
| 10 | 94-2691 | SCREW-HWH Price: $1.02 |
| 11 | 130-6722 | DECAL Price: $4.39 |
| 12 | 137-4810 | BAIL-BBC, COATED Price: $37.99 |
| 13 | 139-1815 | BAIL-TRACTION, COATED Price: $36.99 |
| 14 | 137-4766-03 | BRACKET-CABLE Price: $22.99 |
| 15 | 137-4768 | CABLE-TRACTION Price: $46.99 |
| 16 | 137-4769 | CABLE-BBC Price: $32.99 |
| 17 | 42-3560 | BOLT-SHOULDER Price: $4.85 |
| 18 | 92-2260 | SCREW-HANDLE This part replaces 112-8876. Price: $3.69 |
| 19 | 116-2690 | BUSHING-STEPPED Price: $12.99 |
| 20 | 109-9318 | SPRING-LEVER, BBC Price: $6.09 |
