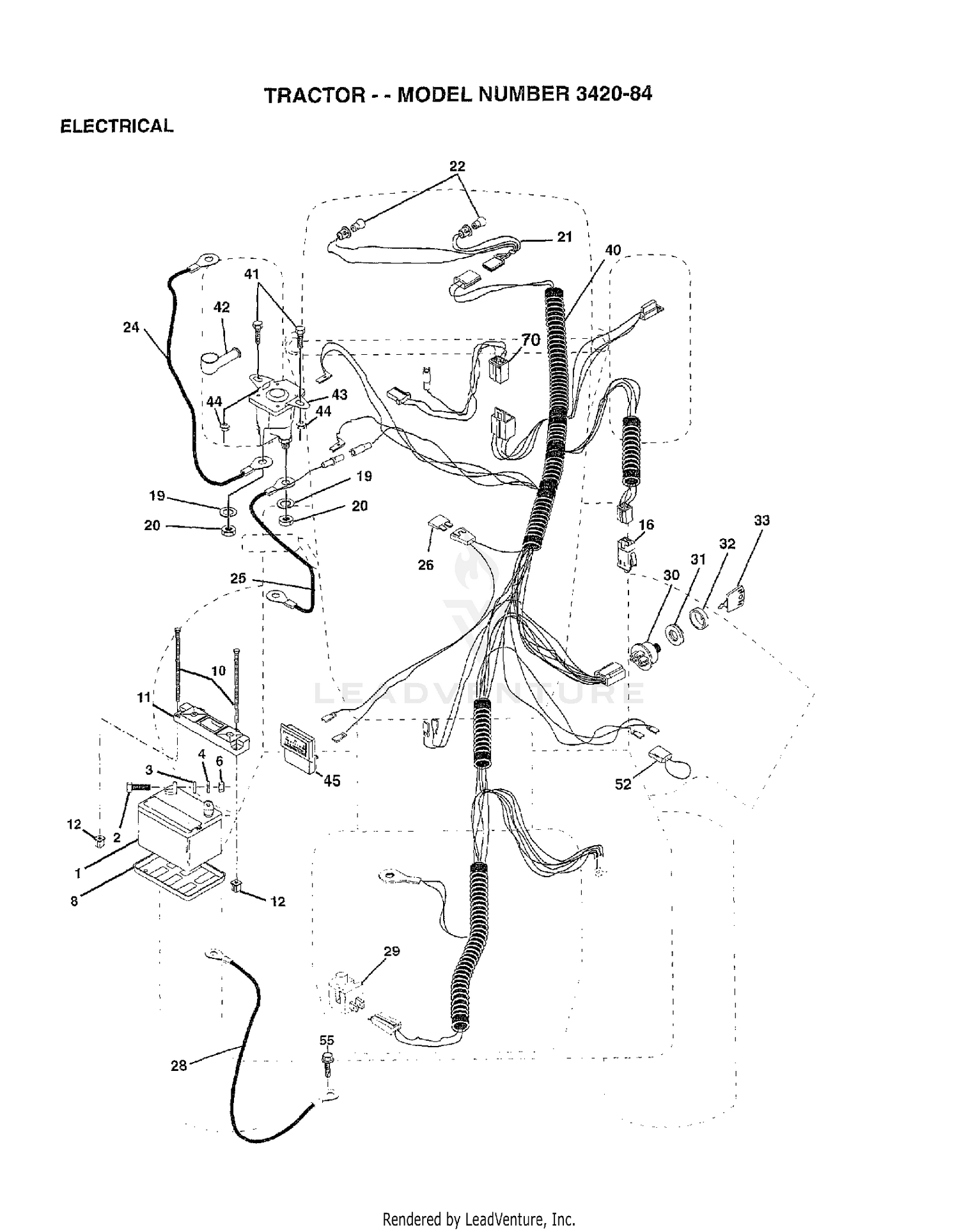

| Ref | Part Number | Description |
|---|
| 1 |
3242-1 |
SCREW-SQH Price: $3.66 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144925. Price: $139.99 |
| 2 |
22-8670 |
TIE ROD Price: $26.76 |
| 2 |
TBD |
Price: Call Us |
| 3 |
22-8650 |
WASHER Price: $1.39 |
| 3 |
819091016 |
WASHER Price: $2.99 |
| 4 |
22-8630 |
HEAD Price: $701.11 |
| 4 |
810040400 |
LOCKWASHER Price: $3.99 |
| 5 |
22-8610 |
ROD-PISTON, 10IN Price: $209.81 |
| 6 |
3217-9 |
NUT-HH Price: $0.37 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 7 |
22-8660 |
WIPER-SEAL, 10IN Price: $44.00 |
| 8 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 8 |
532007603 |
TRAY.BATTERY Price: $3.99 |
| 9 |
22-8680 |
DISCONTINUED Price: Call Us |
| 10 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 10 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145211. Price: $7.99 |
| 11 |
42-2390 |
SWITCH Price: $79.18 |
| 11 |
532150109 |
BATTERY HOLDDOWN Price: $4.99 |
| 12 |
40-6970 |
DISCONTINUED Price: Call Us |
| 12 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145769. Price: $7.99 |
| 13 |
37-2100 |
DISCONTINUED Price: Call Us |
| 14 |
218-461 |
NUT-HH Price: $2.50 |
| 15 |
28-2100 |
DISCONTINUED Price: Call Us |
| 16 |
32151-50 |
DISCONTINUED Price: Call Us |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN This part replaces 532153664. Price: $11.99 |
| 17 |
22-8640 |
O-RING Price: $16.87 |
| 18 |
22-8550 |
O-RING Price: $11.98 |
| 19 |
37-2110 |
DISCONTINUED Price: Call Us |
| 19 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 20 |
37-2160 |
DISCONTINUED Price: Call Us |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 21 |
115-4947-01 |
HYDRAULIC CYLINDER ASM (10.69 STROKE) This part replaces 22-8620. Price: $880.23 |
| 21 |
532136850 |
Harness, Socket, Light (Includes Key #11) (AYP part number) Price: $15.99 |
| 22 |
22-8600 |
O-RING Price: $10.49 |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 23 |
22-8590 |
PISTON Price: $454.13 |
| 24 |
22-8560 |
LOCKNUT Price: $2.37 |
| 24 |
532004799 |
BATTERY CABLE Price: $6.99 |
| 25 |
22-8580 |
WASHER Price: $14.50 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
22-8570 |
O-RING Price: $10.69 |
| 26 |
532108824 |
Fuse (AYP part number) This part replaces 532006347. Price: $3.99 |
| 27 |
22-8540 |
CAP-END Price: $634.77 |
| 28 |
37-2140 |
DISCONTINUED Price: Call Us |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 30 |
532140301 |
SWITCH.IGNITION.4.POSITION Price: $22.99 |
| 31 |
532124211 |
Nut, Ignition (AYP part number) This part replaces 532109788. Price: $3.99 |
| 32 |
532141226 |
Cover, Key Ignition (AYP part number) This part replaces 532123620. Price: $3.99 |
| 33 |
532122147 |
KEY.MOLDED.GENERIC Price: $4.99 |
| 40 |
TBD |
Price: Call Us |
| 41 |
539990071 |
HCS 1/4-20. This part replaces 871110408. Price: $1.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532000719. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $14.99 |
| 44 |
873640400 |
NUT.HEX.KEPS.1/4-20 Price: $2.99 |
| 45 |
532122822 |
Ammeter rectangular (AYP part number) This part replaces 532121433. Price: $11.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $3.99 |
| 55 |
817490508 |
SCREW LT Price: $3.99 |
