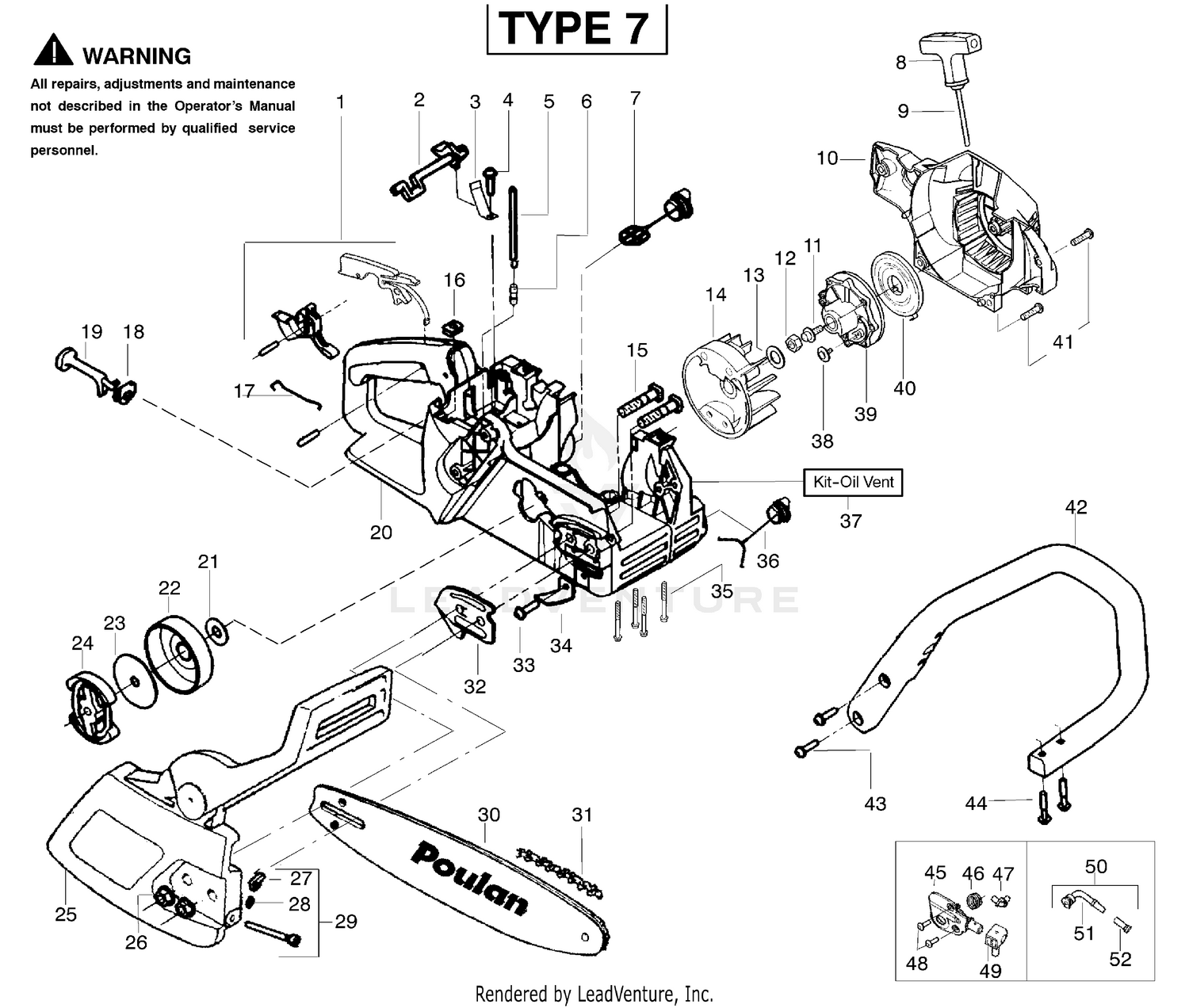

| Ref | Part Number | Description |
|---|
| 1 |
530071832 |
Kit-Trigger & Lockout Price: $6.99 |
| 1 |
99-7984 |
KNOB-SOFT GRIP, PUSH-ON Price: $11.31 |
| 2 |
112-7695-03 |
HANDLE Price: $53.91 |
| 3 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 3 |
530016149 |
Spring-Switch Price: $1.99 |
| 4 |
530015775 |
Screw Price: $1.99 |
| 4 |
92-2651 |
WASHER Price: $1.83 |
| 5 |
112-0038 |
SPACER Price: $7.34 |
| 6 |
114-0621 |
ADAPTER ASM Price: $469.97 |
| 6 |
530023877 |
Fitting Price: $1.99 |
| 7 |
283-83 |
PIN-CLEVIS Price: $9.52 |
| 7 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 8 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 8 |
530056402 |
Handle-Starter This part replaces 530037485. Price: $2.99 |
| 9 |
323-10 |
SCREW-HH Price: $0.89 |
| 9 |
530069232 |
Kit-Rope Price: $3.99 |
| 10 |
112-7686 |
LATCH Price: $40.54 |
| 10 |
530049334 |
Housing-Fan Price: $8.99 |
| 11 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 11 |
530015920 |
Screw Price: $1.99 |
| 12 |
530016134 |
Nut-Flywheel Price: $1.99 |
| 12 |
75-5270 |
SPACER-KNOB, SEAT This part replaces 99-2058. Price: $4.61 |
| 13 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 13 |
530015127 |
Washer-Flywheel Price: $1.99 |
| 14 |
144-7093 |
LINK ASM This part replaces 110-8105. Price: $105.96 |
| 14 |
530047534 |
FLYWHEEL ASSY This part replaces 530039187. Price: $22.99 |
| 15 |
323-12 |
SCREW-HH Price: $1.14 |
| 15 |
530016133 |
Bolt-Bar Mounting Price: $1.99 |
| 16 |
114-0652 |
PIN-LYNCH Price: $253.01 |
| 16 |
530015922 |
Nut-Speed Price: $1.99 |
| 17 |
323-7 |
SCREW-HH Price: $0.65 |
| 17 |
530037809 |
Wire-Throttle Price: $1.99 |
| 18 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
530049005 |
Grommet-Choke Knob Price: $1.99 |
| 19 |
530047989 |
Lever-Choke Price: $1.99 |
| 20 |
530058909 |
Assy-Chassis Price: $49.99 |
| 21 |
530015907 |
Washer - Thrust Price: $1.99 |
| 22 |
530047061 |
Assy-Drum W/brg. Price: $11.99 |
| 23 |
530015611 |
Washer-Clutch Price: $1.99 |
| 24 |
530014949 |
Assy. - Clutch Price: $7.99 |
| 25 |
545139906 |
Assy-Chain Brake Price: $29.99 |
| 26 |
530015917 |
Nut-Bar Mounting Price: $0.99 |
| 27 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 28 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 30 |
952044368 |
BAR 14" .050 3/8 041 52DL Price: $14.99 |
| 31 |
581562101 |
ACCY CHN 14" 52DL 3/8 .050 This part replaces 952051209. Price: $17.99 |
| 32 |
530038238 |
Plate-Bar Mounting Price: $1.99 |
| 33 |
530015814 |
Screw Price: $1.99 |
| 34 |
530029850 |
Chain Catcher Price: $1.99 |
| 35 |
530016132 |
Screw Price: $1.99 |
| 36 |
530057236 |
Assy-Oil Cap w/ret. Price: $5.99 |
| 37 |
530071666 |
Kit-Oil Vent Price: $7.99 |
| 38 |
530016080 |
Screw Price: $1.99 |
| 39 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 40 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 41 |
530015892 |
Screw Price: $1.99 |
| 42 |
530059173 |
Handle-Front This part replaces 530056798. Price: $17.99 |
| 43 |
530015814 |
Screw Price: $1.99 |
| 44 |
530015940 |
Screw Price: $1.99 |
| 46 |
530037820 |
Gear-Worm Spring Price: $1.99 |
| 47 |
530049477 |
Elbow-Oil Pickup Price: $1.99 |
| 48 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 49 |
530019206 |
Seal Block Price: $1.99 |
| 51 |
530038373 |
Pickup-Oiler Price: $1.99 |
