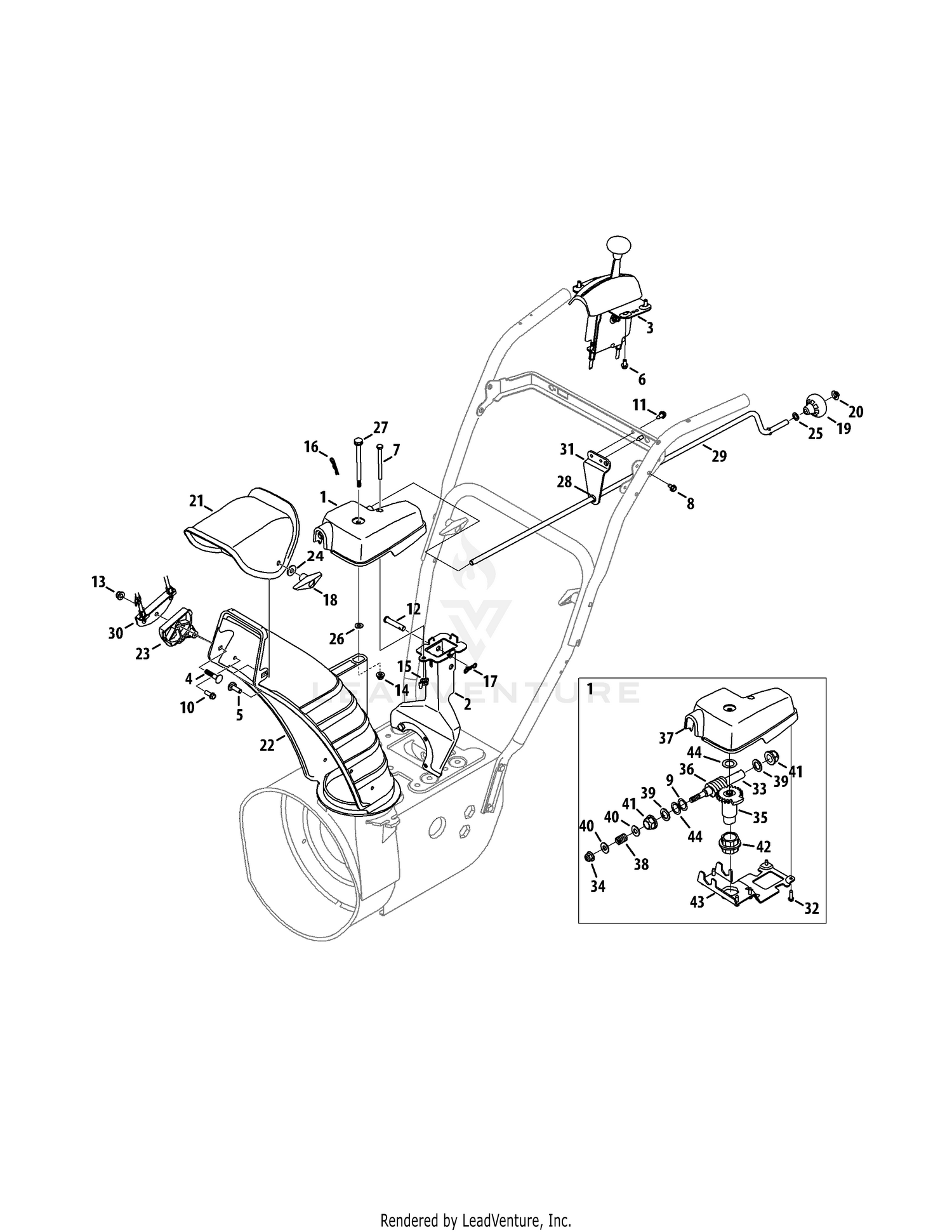

| Ref | Part Number | Description |
|---|
| 1 |
918-04933B |
Chute Rotation Gearbox Price: $81.89 |
| 2 |
684-04310B-0637 |
CHUTE SUPPORT BRACKET (POWDER BLACK) This part replaces 684-04310A-0637. Price: $35.80 |
| 3 |
984-04325A |
Chute Control, 2-Way Price: $86.19 |
| 4 |
710-0262 |
Bolt, Carriage, 5/16-18 x 1.50 Price: $3.66 |
| 5 |
710-04071 |
Bolt, Carrier, 5/16-18 x 1.00 Price: $3.94 |
| 6 |
710-04187A |
HEX SCREW 1/4-15 x .50 This part replaces 710-04187. Price: $5.99 |
| 7 |
710-04370 |
Hex Head Screw, 1/4-20 x 3.00 Price: $3.66 |
| 8 |
710-0599 |
Screw, TT, 1/4-20 x .500 Price: $3.86 |
| 9 |
736-04337 |
Shim Washer, .632 x 1.00 x .010 Price: $3.37 |
| 10 |
710-0895 |
Screw, Hi-Lo, 1/4-15 x 0.750 Price: $5.82 |
| 11 |
710-1652 |
Screw, 1/4-20 x .625 Price: $3.86 |
| 12 |
711-04469A |
Clevis Pin, 3/8 x 1.87 Price: $5.15 |
| 13 |
712-04063 |
Nut, Flange Lock, 5/16-18 Price: $3.56 |
| 14 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 15 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 16 |
714-0101 |
Int. Cotter Pin This part replaces 914-0101. Price: $4.13 |
| 17 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 18 |
720-0284 |
Knob This part replaces 920-0284. Price: $4.08 |
| 19 |
720-04102 |
Shift Knob, .390 Price: $6.01 |
| 20 |
726-0100 |
Push Cap This part replaces 926-0100. Price: $3.75 |
| 21 |
731-04427B |
UPPER REMOTE CHUTE WITH LABEL This part replaces 731-04427A. Price: $14.55 |
| 22 |
731-06440A |
Lower Chute, 5.0 Price: $45.59 |
| 23 |
731-06451 |
Cable Guide, Chute Tilt Price: $4.26 |
| 24 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 25 |
736-0185 |
Flat Washer, .375 x .738 x .063 This part replaces 936-0185. Price: $3.43 |
| 26 |
736-04446 |
Washer, Flat, .25 x .630 Price: $3.75 |
| 27 |
738-04367 |
Shoulder Screw, .312 x 3.5 x 1/4-20 Price: $4.36 |
| 28 |
941-0475 |
Plastic Bushing, .380 ID Price: $3.74 |
| 29 |
747-05386A-0637 |
CHUTE CRANK (POWDER BLACK) This part replaces 747-05386-0637. Price: $27.91 |
| 30 |
784-5594-0637 |
Cable Bracket Price: $10.15 |
| 31 |
790-00341-0637 |
Support Rod Bracket Price: $14.25 |
| 32 |
710-04373A |
Screw, 12-16 x .75 Price: $3.86 |
| 33 |
711-05329A |
Worm Shaft Price: $19.55 |
| 34 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 35 |
717-04667B |
HELICAL GEAR-14T This part replaces 717-04667. Price: $9.09 |
| 36 |
717-04672A |
CHUTE GEARBOX WORM GEAR This part replaces 717-04672. Price: $8.03 |
| 37 |
731-07529A |
Gear Cover Price: $16.45 |
| 38 |
732-04756 |
Compression Spring, .39 x .60 x .88 Price: $2.92 |
| 39 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 40 |
736-3072 |
Flat Washer, .380 x .93 x .110 Price: $4.11 |
| 41 |
941-0225 |
Hex Bearing Price: $6.55 |
| 42 |
741-04388A |
Flange Bearing Price: $6.21 |
| 43 |
790-00342C-0637 |
Gear Bracket Price: $24.60 |
