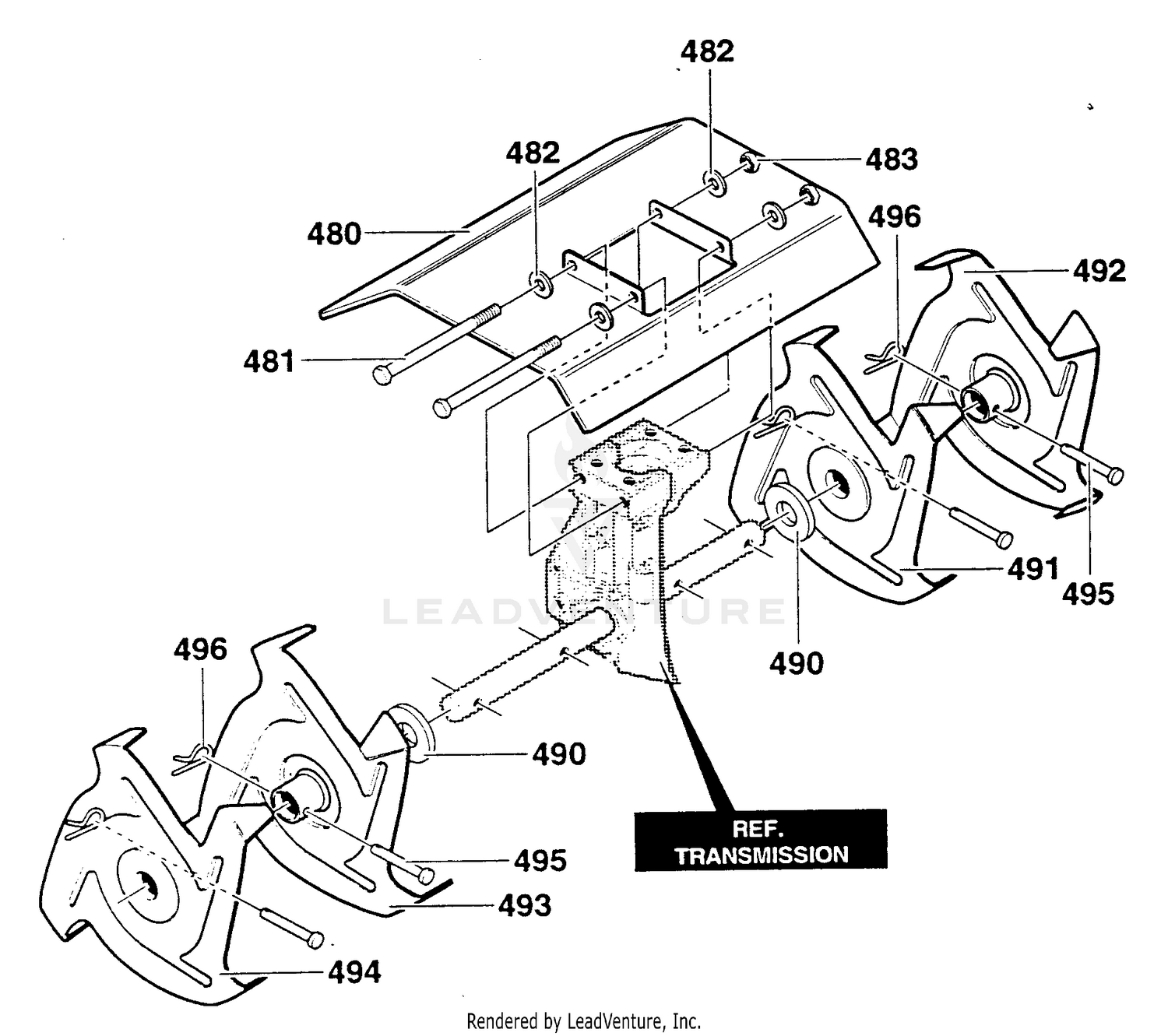

Tine Shield Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 480 | 601001286 | SHIELD Price: $21.15 |
| 481 | 601001287 | SCREW Price: $1.61 |
| 482 | 601000018 | WASHER, FLAT .281X .63X. Price: $1.99 |
| 483 | 601002318 | RP NUT Price: $9.99 |
| 490 | 601000602 | FELT WASHER Price: $4.99 |
| 491 | 601000745 | PF TINE ASSY-INNER LH Price: $43.99 |
| 492 | 601000743 | PF TINE ASSY-OUTER LH Price: $47.99 |
| 493 | 601000744 | PF TINE ASSY-INNER RH Price: $45.99 |
| 494 | 601000742 | PF TINE ASSY OUTER RH Price: $39.99 |
| 495 | 601000599 | PIN, CLEVIS .31X1.38 Price: $3.99 |
