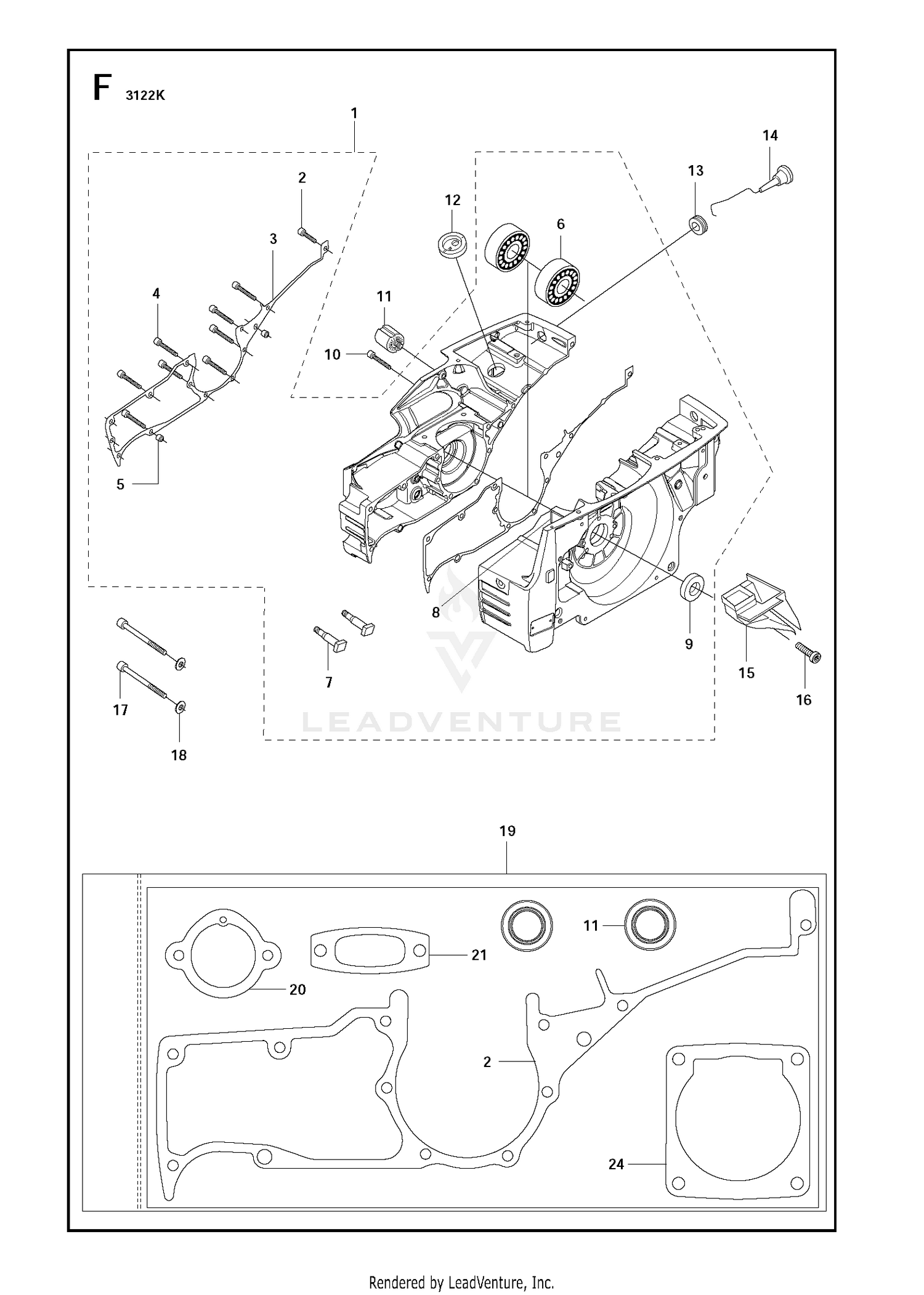

CRANKCASE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 503215320 | SCREW. Price: $3.99 |
| 3 | 503134501 | CRANKCASE GASKET Price: $4.99 |
| 4 | 503215341 | SCREW Price: $3.99 |
| 5 | 593806001 | GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 6 | 738220325 | BALL BEARING 6203 C3 This part replaces 503250002. Price: $11.99 |
| 7 | 501815701 | BOLT Price: $4.99 |
| 8 | 721420600 | PIN Price: $3.99 |
| 9 | 503260205 | SEALING RING Price: $11.99 |
| 10 | 544218420 | SCREW ITXSCM Price: $3.99 |
| 12 | 503132001 | GROMMET Price: $3.99 |
| 13 | 503145402 | GROMMET Price: $3.99 |
| 14 | 506254301 | CHOKE CONTROL Price: $7.99 |
| 15 | 506237001 | JET Price: $11.99 |
| 16 | 503215312 | SCREW Price: $3.99 |
| 17 | 503215325 | SCREW Price: $3.99 |
| 18 | 503230011 | WASHER 5.3X12 Price: $2.99 |
| 20 | 579851101 | GASKET K1270 This part replaces 506274302. Price: $3.99 |
| 21 | 503131305 | GASKET Price: $4.99 |
| 22 | 503134601 | GASKET Price: $4.99 |
