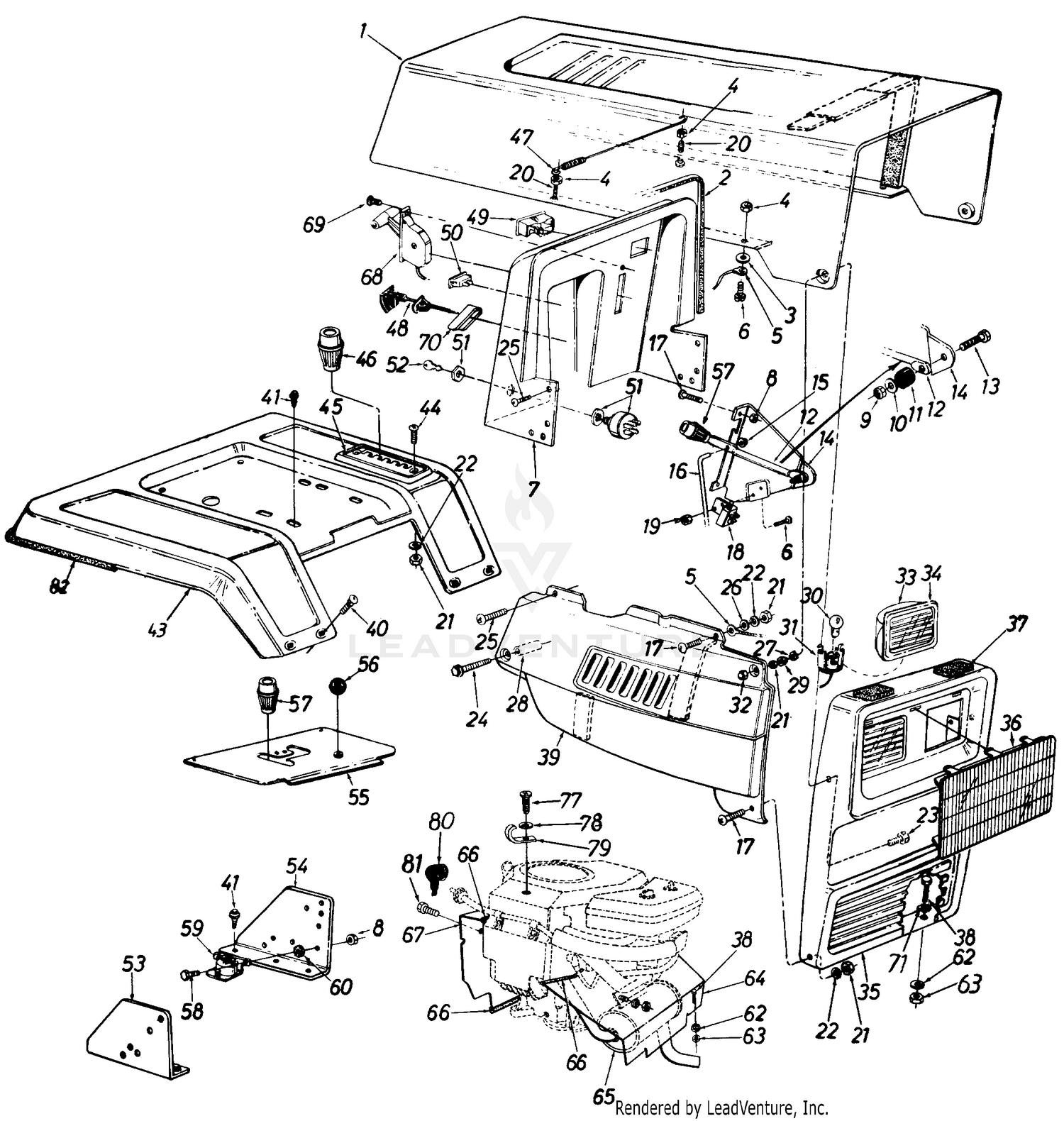

| Ref | Part Number | Description |
|---|
| 1 |
16787A |
Hood Price: Call Us |
| 2 |
731-0511-31 |
Trim Strip 31" Lg. Price: $36.35 |
| 3 |
736-0931 |
Fl-Wash. .20" I.D. x .41" O.D. Price: $4.02 |
| 4 |
712-0272 |
Hex Sems Nut #10-24 Thd. Price: $3.58 |
| 5 |
727-0290A |
Brake Cable 11.75" Lg. This part replaces 727-0290. Price: $10.96 |
| 6 |
710-0473 |
Truss Mach. Scr. #10-24 x .5" Lg. Price: $3.90 |
| 7 |
16550A |
DASH PANEL Not Available Price: |
| 8 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
| 9 |
712-0324 |
Hex L-Nut 1/4-20 Thd. Price: $3.38 |
| 10 |
736-0173 |
Fl-Wash. .281" I.D. x .73" O.D. Price: $3.76 |
| 11 |
735-0126A |
RUBBER WASHER Not Available This part replaces 735-0126. Price: |
| 12 |
747-0513 |
BLADE CLUTCH LEVER Not Available Price: |
| 14 |
13950A |
BRACKET-CL Not Available Price: |
| 15 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 16 |
747-0307 |
DECK CONTROL ROD Not Available Price: |
| 17 |
710-0286 |
Truss Mach. Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 18 |
925-0465A |
Safety Switch This part replaces 725-0465A. Price: $26.56 |
| 19 |
712-0272 |
Hex Sems Nut #10-24 Thd. Price: $3.58 |
| 20 |
910-0749 |
CHAIN ADJUSTMENT BOLT Not Available This part replaces 710-0749. Price: |
| 24 |
710-1026 |
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg. Price: $5.94 |
| 25 |
710-0642 |
Hex TT-Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
| 26 |
736-0463 |
Fl-Wash. .25" I.D. x .62" Price: $3.91 |
| 27 |
736-0413 |
Spr. Wash. .39" I.D. x .62" Price: $6.01 |
| 28 |
750-0768 |
SPACER-.260 ID x 1.32 LG x 16 Not Available Price: |
| 29 |
738-0759 |
SHOULDER SPACER Not Available Price: |
| 30 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 31 |
925-1650 |
SHORT LAMP SOCKET Not Available This part replaces 725-1650. Price: |
| 32 |
712-0264 |
Acorn Nut 1/4-20 Thd. Price: $2.93 |
| 33 |
931-0705 |
HEADLIGHT HOUSING Not Available This part replaces 731-0705. Price: |
| 35 |
15806B |
GRILLE Not Available Price: |
| 37 |
722-0157 |
FOAM STRIP Not Available Price: |
| 38 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 39 |
16725 |
SIDE PANEL (RH) Not Available This part replaces 17458A. Price: |
| 40 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 41 |
710-0726 |
Hex Wash. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 43 |
17426A |
FENDER-RR Not Available Price: |
| 44 |
710-0166A |
Truss Mach. Scr. 1/4-20 x 1.0" Lg. This part replaces 710-0166. Price: $6.24 |
| 46 |
720-0218 |
Shift Knob Price: $17.27 |
| 47 |
732-0462 |
EXTENSION SPRING Not Available Price: |
| 48 |
946-0613A |
Choke Control 44.0" Lg. This part replaces 746-0613A. Price: $25.62 |
| 51 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 52 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 53 |
17293B |
BRACKET-DASH Not Available Price: |
| 54 |
17294B-0637 |
BRACKET-DASH SUP-L Not Available This part replaces 17294B. Price: |
| 56 |
720-0166 |
THROTTLE KNOB Not Available Price: |
| 57 |
920-0232 |
Knob This part replaces 720-0232. Price: $9.11 |
| 58 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 59 |
925-1426A |
Solenoid This part replaces 725-1426. Price: $24.63 |
| 60 |
736-0222 |
Ext. L-Wash. 1/4" I.D. Price: $5.07 |
| 64 |
16934 |
FRONT HEAT SHEILD Not Available Price: |
| 65 |
751-0474 |
MUFFLER Not Available Price: |
| 66 |
731-0511-12 |
Trim Strip 12" Lg. Price: $19.74 |
| 67 |
16989A |
Rear Baffle Price: Call Us |
| 68 |
831-0823A |
Throttle Control Box Ass'y. Price: $30.59 |
| 69 |
710-0779A |
Truss Mach. AB-Tap Scr. #10 x .5" Lg. Price: $3.85 |
| 70 |
17782 |
CLIP-CHOKE RETAINER Not Available Price: |
| 71 |
736-3078 |
FL-Wash. .344" I.D. x 1" O.D. (Hdn.) Price: $3.95 |
| 77 |
710-0351 |
Truss Mach. B-Tap Scr. #10 x .5" Lg. Price: $3.90 |
| 78 |
736-3067 |
Fl-Wash. .188" I.D. x .438" O.D. Price: $2.93 |
| 79 |
726-0272 |
Clamp Price: $6.24 |
| 80 |
725-3008 |
BOOT-INSULATOR-TERMINAL Not Available Price: |
| 81 |
710-0599 |
Hex Wash Hd. TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 17998 |
DASH |
ASSEMBLY Not Available Price: 17998 |
