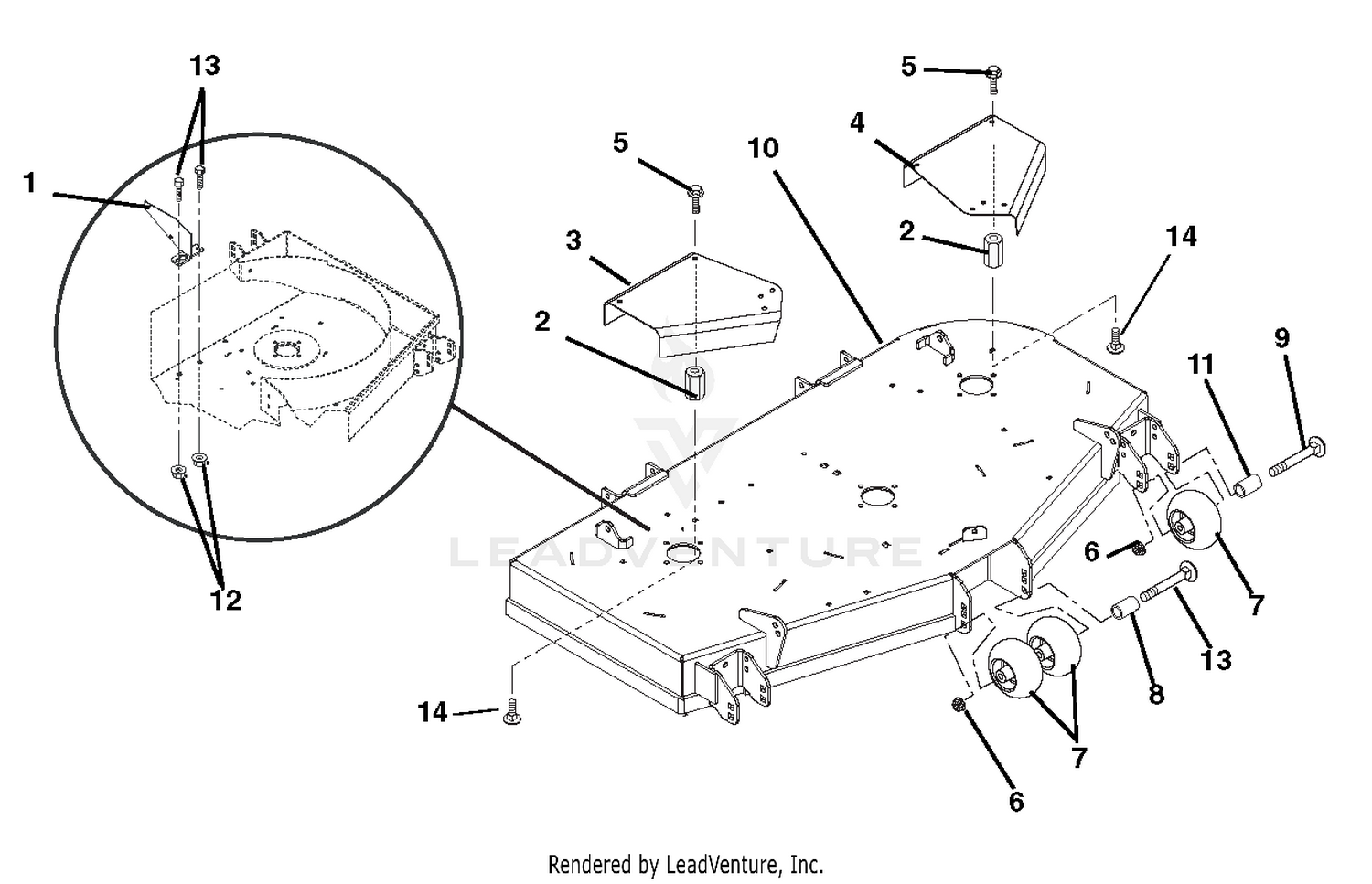

| Ref | Part Number | Description |
|---|
| 1 |
00502453 |
REAR DISCH DEFLECT BFL WMT-RED Price: $30.95 |
| 2 |
07000027 |
NUT, COUPLING .31-18 X 3.00 Price: $22.95 |
| 5 |
07000018 |
BOLT, SEMS .31-18 X .62 Price: $3.45 |
| 6 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 7 |
03905900 |
ANTI-SCALP WHEEL - 5X3 CTR Price: $11.95 |
| 8 |
00473800 |
SPACER, .510X.625X6.50 Price: $19.95 |
| 9 |
06200511 |
BOLT, RHNS .50-13X4.50 G5 ZCC NS This part replaces 06225900. Price: $3.95 |
| 11 |
00473700 |
SPACER, .510X.625X3.35 Price: $16.95 |
| 12 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 13 |
06200235 |
BLT,RHSSN .38-16X1.00 G5 ZCC This part replaces 06212000. Price: $1.45 |
