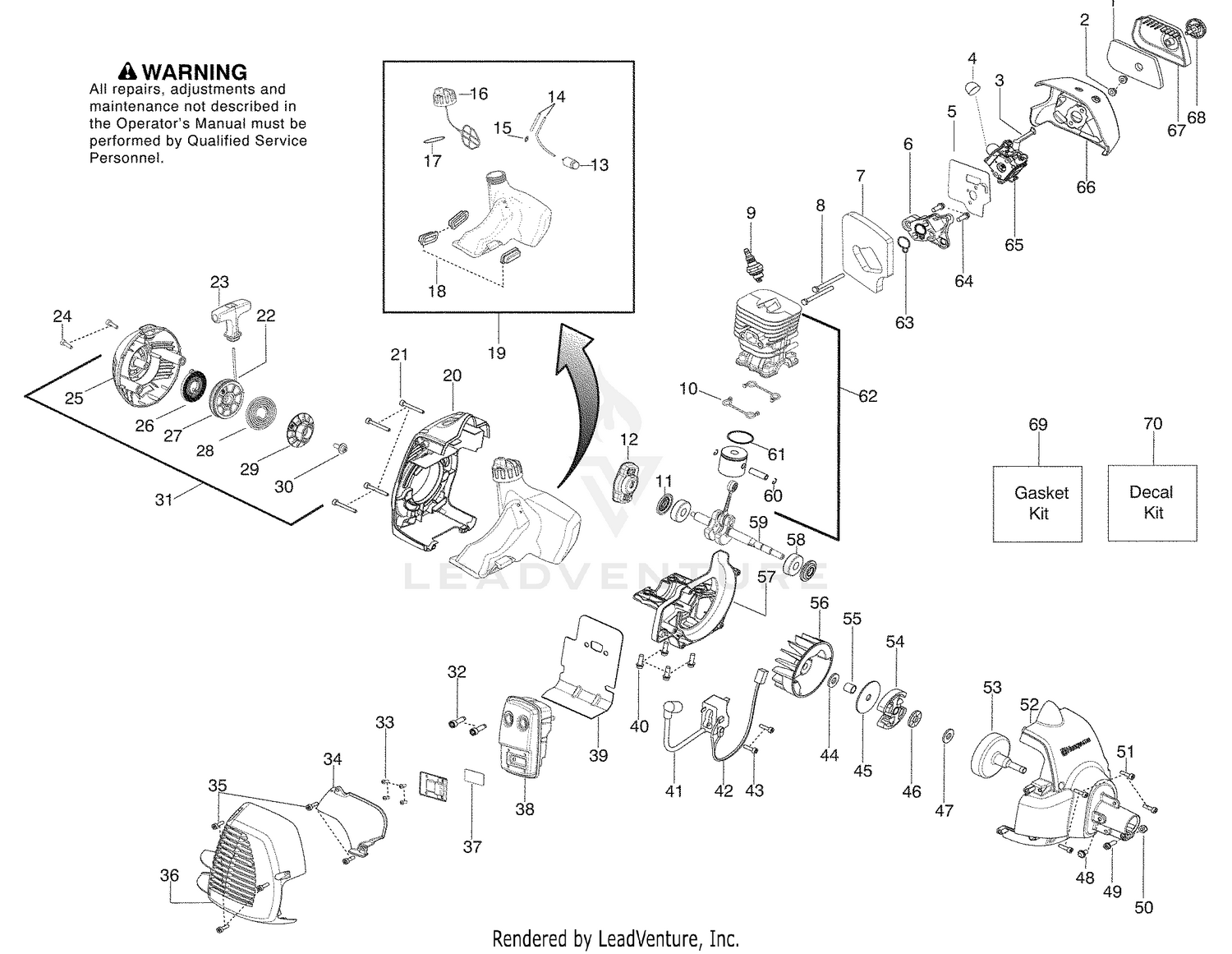

| Ref | Part Number | Description |
|---|
| 1 |
325-20 |
SCREW-HH Price: $6.29 |
| 1 |
530150253 |
FILTER AIRBOX Price: $2.99 |
| 2 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 2 |
530016101 |
NUT Price: $4.99 |
| 3 |
302-55 |
FITTING-GREASE Price: $3.09 |
| 3 |
530057844 |
CHOKE LEVER Price: $5.99 |
| 4 |
105-7835 |
SEAL This part replaces 71-4760. Price: $2.76 |
| 4 |
530058709 |
PURGE BULB ZAMA Price: $6.99 |
| 5 |
71-4740-03 |
RH TIE ROD END ASM This part replaces 2411-45. Price: $163.79 |
| 6 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 6 |
530035596 |
CARB ADAPTOR Price: $7.99 |
| 7 |
92-7594 |
HOSE ASM Price: $94.90 |
| 8 |
530016400 |
BOLT CARB ADAPTOR Price: $3.99 |
| 8 |
92-7595 |
HOSE-HYD Price: $102.70 |
| 9 |
32136-14 |
NUT-HST Price: $3.38 |
| 9 |
503235112 |
BPMR6A NGK SPARK PLUG This part replaces 952030201. Price: $8.99 |
| 10 |
76-8350 |
STOP-AXLE Price: $10.92 |
| 11 |
3296-45 |
NUT-HEX Price: $3.79 |
| 12 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 13 |
530095646 |
FUEL PICK-UP ASSY Price: $5.99 |
| 13 |
94-8000 |
NUT-HEX Price: $2.65 |
| 14 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 15 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 16 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 17 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 18 |
530059780 |
ISOLATOR FUEL TANK Price: $4.99 |
| 18 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 19 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 20 |
576153201 |
REAR SHROUD ORANGE This part replaces 530057851. Price: $11.99 |
| 20 |
94-5607 |
AXLE ASM Price: $1,648.44 |
| 21 |
530016448 |
SCREW Price: $2.99 |
| 21 |
92-9725-03 |
LH SPINDLE ASM This part replaces 92-9725. Price: $553.13 |
| 22 |
69-2980 |
SEAL Price: $33.94 |
| 23 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 24 |
254-107 |
CUP-BEARING, TAPERED Price: $9.93 |
| 24 |
530016426 |
SCREW M5-0.8X30MM Price: $4.99 |
| 25 |
114-3908 |
HUB ASM This part replaces 92-9651. Price: $129.48 |
| 26 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 27 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 28 |
86-5910 |
TIRE-6 PLY Price: $114.98 |
| 29 |
120-8909 |
RIM This part replaces 217-125. Price: $198.53 |
| 30 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 30 |
530016468 |
SCREW Price: $2.99 |
| 31 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 32 |
530058982 |
BOLT MUFFLER Price: $2.99 |
| 32 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 33 |
545227101 |
SCREW 6-19X.437 This part replaces 530015241. Price: $2.99 |
| 33 |
95-7152 |
PROTECTOR - BEARING Price: $24.66 |
| 34 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 34 |
530150440 |
SHIELD HEAT Price: $5.99 |
| 35 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 35 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 36 |
576215001 |
KIT MUFFLER GUARD HVA This part replaces 545104901. Price: $12.99 |
| 36 |
92-9652 |
STUD-BOLT Price: $4.89 |
| 37 |
32136-13 |
NUT-SHH Price: $2.85 |
| 38 |
92-5839 |
JOINT-BALL Price: $207.89 |
| 39 |
94-8142 |
HYD CYLINDER ASM Price: $802.19 |
| 40 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 40 |
94-9973 |
RING-RETAINING Price: $1.02 |
| 41 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 41 |
545046701 |
IGNITION MODULE MBU-7 Price: $49.99 |
| 42 |
237-78 |
O-RING Price: $3.85 |
| 42 |
530039227 |
ASSY MODULE LEAD WIRE Price: $6.99 |
| 43 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 43 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 44 |
237-22 |
O-RING Price: $2.43 |
| 44 |
530016463 |
WASHER CLUTCH Price: $5.99 |
| 45 |
530094189 |
WASHER-CLUTCH Price: $5.99 |
| 45 |
92-5833 |
SPACER-JOINT, BALL Price: $20.71 |
| 46 |
323-9 |
SCREW-HH Price: $1.29 |
| 46 |
545173401 |
BEARING THRUST Price: $6.99 |
| 47 |
530016420 |
WASHER THRUST Price: $3.99 |
| 47 |
98-8840 |
TUBE AND CLAMP ASM Price: $448.94 |
| 48 |
530016469 |
SCREW Price: $3.99 |
| 49 |
530016470 |
SCREW Price: $3.99 |
| 50 |
530015768 |
LOCKNUT-HEX 10-24 Price: $3.99 |
| 51 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 51 |
94-5603 |
BUSHING-METRIC Price: $110.04 |
| 52 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 52 |
545017501 |
FAN HSG ASSY Price: $17.99 |
| 53 |
587126401 |
ASSY CLUTCH DRUM This part replaces 530150039. Price: $24.99 |
| 53 |
94-8115 |
DISCONTINUED Price: Call Us |
| 54 |
530055122 |
ASSEMBLY CLUTCH Price: $17.99 |
| 54 |
92-7604 |
DISCONTINUED Price: Call Us |
| 55 |
530057852 |
SPACER FLYWHEEL Price: $8.99 |
| 55 |
93-7247 |
WASHER-THRUST Price: $3.46 |
| 56 |
530039242 |
FLYWHEEL Price: $29.99 |
| 56 |
92-7495 |
STEERING TUBE ASM Price: $148.27 |
| 57 |
340-70 |
NUT-LOCK Price: $2.10 |
| 58 |
237-22 |
O-RING Price: $2.43 |
| 58 |
545013401 |
BEARING RADIAL BALL (6201) Price: $5.99 |
| 59 |
92-7494 |
REAR STEARING TUBE ASM Price: $150.03 |
| 60 |
106-6898 |
JOINT-BALL This part replaces 92-5837. Price: $210.81 |
| 60 |
530015162 |
WRIST PIN RET. Price: $2.99 |
| 61 |
3220-11 |
NUT-JAM Price: $0.81 |
| 61 |
575227901 |
RING PISTON This part replaces 530019283. Price: $5.99 |
| 62 |
94-2807 |
ADAPTOR-NUT, WHEEL Price: $17.80 |
| 63 |
100-3895-03 |
WEIGHT-WHEEL This part replaces 94-3052. Price: $841.13 |
| 64 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 64 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 65 |
3213-14 |
SCREW-HH Price: $8.01 |
| 66 |
576459001 |
AIRBOX HVA 128 HUSKY GRAY This part replaces 545084601. Price: $6.99 |
| 66 |
94-3063 |
EXTENSION-STEM, VALVE Price: $43.43 |
| 67 |
530057846 |
COVER-AIR BOX Price: $7.99 |
| 68 |
530059796 |
KNOB ASSY AIRBOX COVER Price: $4.99 |
