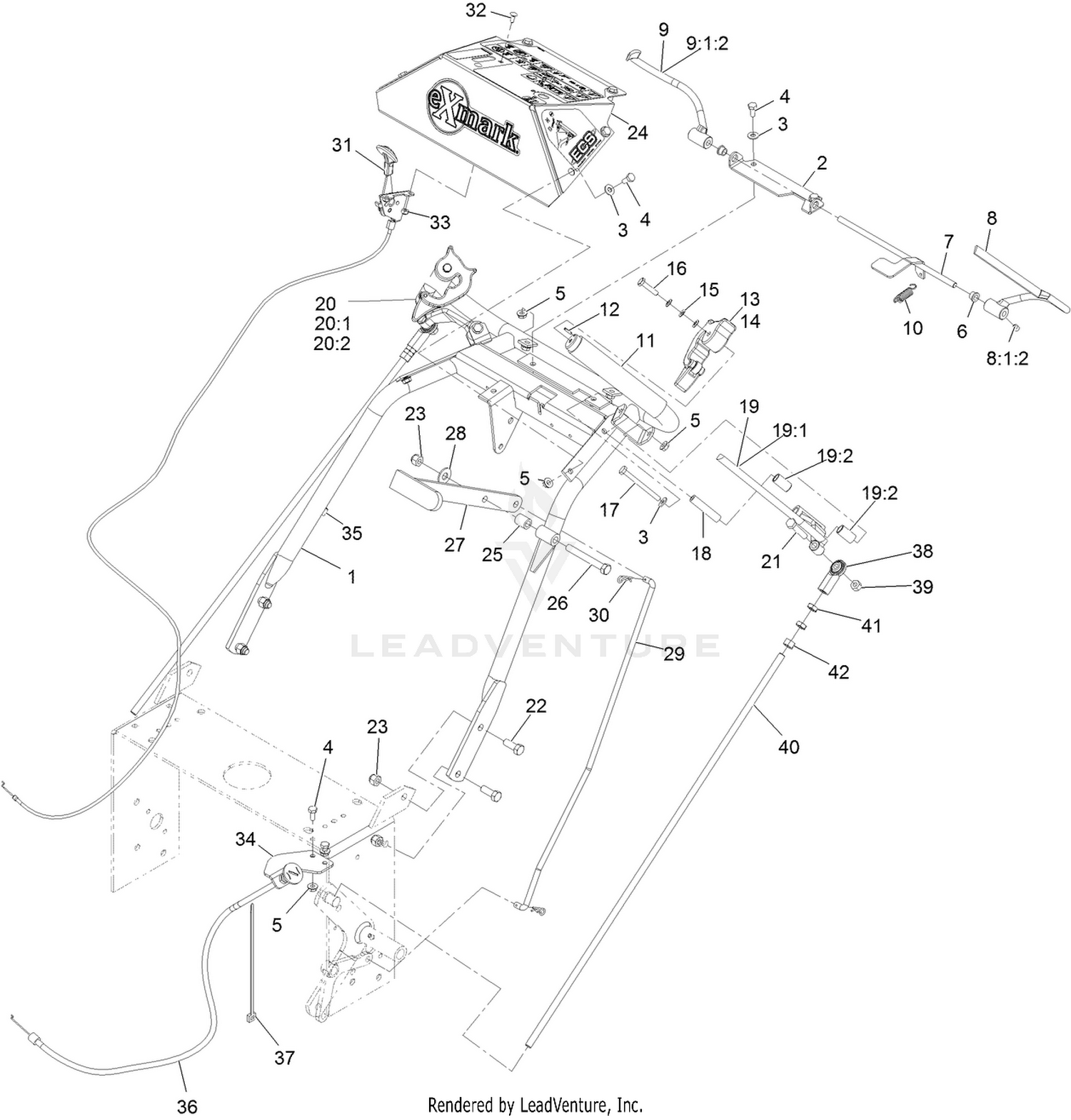

| Ref | Part Number | Description |
|---|
| 1 |
103-0770-03 |
WLD,UPPER ECS HANDLE Price: $604.99 |
| 2 |
103-0489-03 |
BRACKET,OPC AXLE Price: $22.99 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 4 |
321-3 |
SCREW-HH Price: $1.19 |
| 5 |
32128-33 |
NUT-HF Price: $0.69 |
| 6 |
1-303365 |
BUSHING-NYLON Price: $4.79 |
| 7 |
103-0769-03 |
WLD,OPC LEVER AXLE Price: $40.99 |
| 10 |
1-303363 |
SPRING-EXTENSION Price: $6.09 |
| 11 |
103-0815 |
GRIP-BAR, HANDLE Price: $10.99 |
| 12 |
126-2925 |
PIN-SPRING Price: $1.19 |
| 13 |
103-1631 |
ASM,LH THUMB LATCH Price: $32.99 |
| 14 |
103-1630 |
ASM,RH THUMB LATCH Price: $32.99 |
| 15 |
1-303435 |
WASHER-SPRING Price: $1.39 |
| 16 |
103-0235 |
SCREW-HH Price: $1.19 |
| 17 |
321-14 |
SCREW-HH Price: $4.49 |
| 18 |
103-0027 |
BUSHING-LEVER, DRIVE Price: $18.99 |
| 19 |
103-2514 |
DRIVE LEVER-ASM, LH Price: $120.99 |
| 20 |
103-2513 |
DRIVE LEVER-ASM, RH Price: $120.99 |
| 21 |
322-9 |
SCREW-HH Price: $3.09 |
| 22 |
323-6 |
SCREW-HH Price: $2.29 |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 24 |
109-4934 |
ASM, CONSOLE W/DECALS Price: $242.99 |
| 25 |
1-633080 |
BUSHING-LEVER, LIFT Price: $9.99 |
| 26 |
323-14 |
SCREW-HH Price: $3.59 |
| 27 |
103-1629 |
CLUTCH LEVER-W/GRIP Price: $18.99 |
| 28 |
3256-4 |
WASHER-FLAT Price: $1.49 |
| 29 |
103-1627 |
LINKAGE,UPPER BLADE (PLT) Price: $16.99 |
| 30 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 31 |
116-2426 |
CONTROL, THROTTLE Price: $43.99 |
| 31 |
116-2426RT02 |
Control, Throttle Price: Call Us |
| 32 |
1-807513 |
BOLT-CARR Price: $2.29 |
| 33 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 34 |
103-1797-01 |
BRACKET-CABLE, CHOKE Price: $8.29 |
| 35 |
1-303088 |
CLIP-CABLE Price: $2.29 |
| 36 |
103-1796 |
CABLE-CHOKE Price: $47.99 |
| 36 |
103-1796RT01 |
Cable-Choke Price: Call Us |
| 37 |
3290-378 |
TIE-CABLE This part replaces 1-303335. Price: $0.79 |
| 38 |
103-2463 |
JOINT-BALL, END Price: $26.99 |
| 39 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 40 |
103-1604 |
LINKAGE,DRIVE (PLT) Price: $21.99 |
| 41 |
3220-3 |
NUT-HJ Price: $0.29 |
