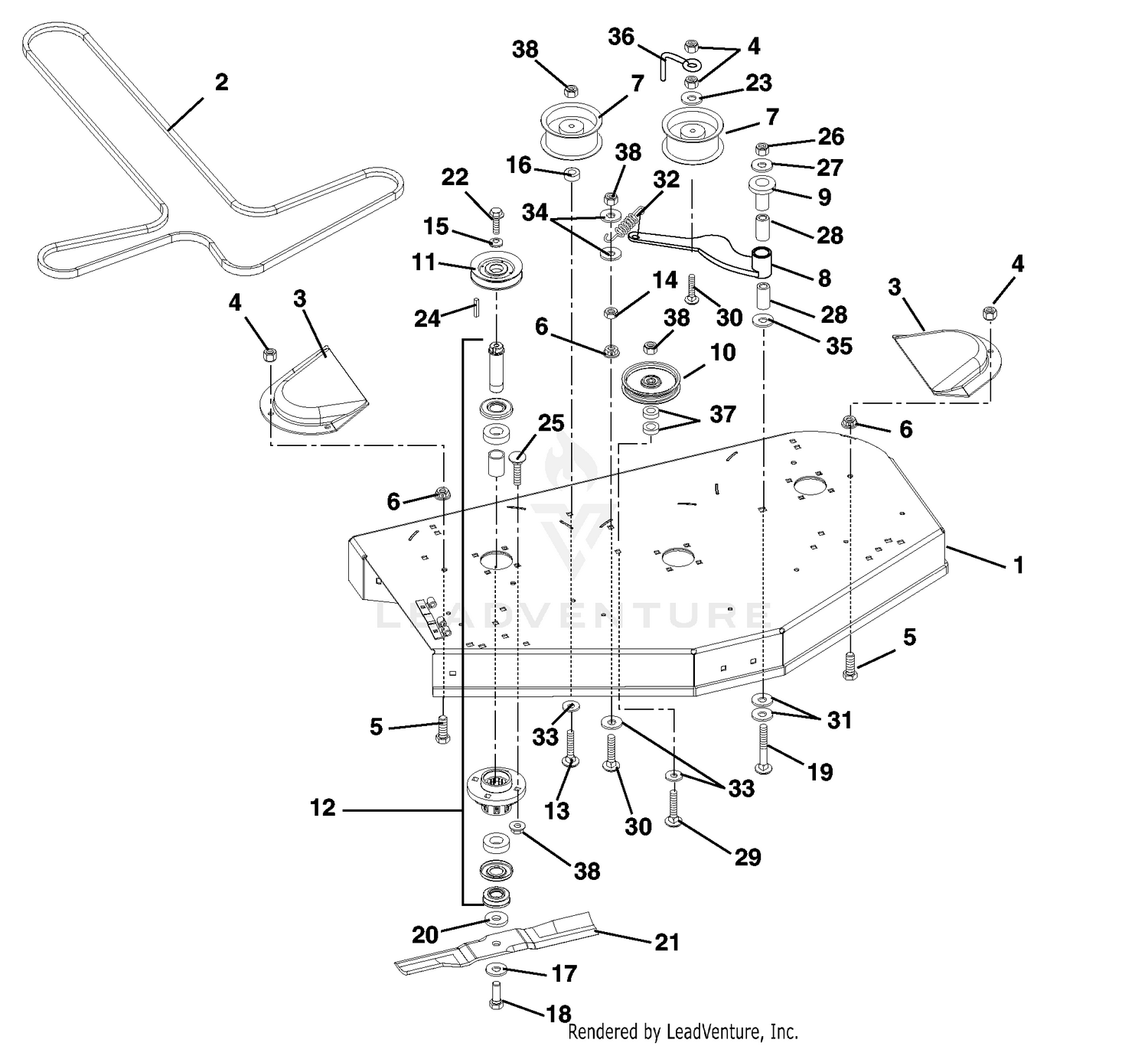

| Ref | Part Number | Description |
|---|
| 3 |
01520100 |
COVER Price: $53.45 |
| 4 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 5 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05980200. Price: $1.45 |
| 6 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 7 |
07300028 |
IDLER, FLG .38ID X 3.50 This part replaces 07324100. Price: $35.95 |
| 8 |
01600151 |
WELDMENT, IDLER ARM This part replaces 01600100. Price: $134.95 |
| 9 |
07000031 |
BEARING, PEDESTAL This part replaces 07053100. Price: $74.45 |
| 10 |
07300101 |
ASM, 4" IDLER (.75 WIDE) This part replaces 07312500. Price: $56.45 |
| 12 |
51510000 |
ASSEMBLY, SPINDLE Price: $204.95 |
| 13 |
06200301 |
BLT,RHSN .38-16X2.25 G5 ZCC This part replaces 06213400. Price: $3.95 |
| 14 |
06500914 |
NUT-LK-CTR-JAM .375-16 GB ZCC This part replaces 06537200. Price: $0.95 |
| 15 |
06401110 |
WSHR, FLT .406X1.50X.245 ZCC This part replaces 00597000. Price: $3.95 |
| 16 |
01594000 |
SPACER, .39 X 1.50 X .380 Price: $3.45 |
| 17 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 18 |
05901822 |
BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45 |
| 20 |
06400829 |
WSHR-FLT .640X1.75X.250 This part replaces 06435200. Price: $3.95 |
| 22 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05974500. Price: $1.95 |
| 23 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC This part replaces 06444000. Price: $2.45 |
| 24 |
06611100 |
KEY, SQ .25 X .38 X .25 Price: $0.95 |
| 25 |
06200415 |
BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06224100. Price: $2.45 |
| 26 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 27 |
415543 |
WSHR-FL-STL.50X1.25X.083 YWZC Price: Call Us |
| 28 |
05435800 |
BRG, 1.00 X 1.12 X .75 Price: $8.45 |
| 29 |
06200417 |
BLT, RHSN .38-16X1.75 G5 ZCC This part replaces 06223800. Price: $3.95 |
| 30 |
06200316 |
BLT, RHSN .38-16X2.75 G5 ZCC This part replaces 06225400. Price: $3.95 |
| 31 |
06401016 |
WSHR, FLT .755X1.375X.062 ZCC This part replaces 06441500. Price: $3.45 |
| 32 |
08337900 |
SPRING, EXTENSION Price: $22.45 |
| 33 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 34 |
06401139 |
WSHR- FLT .375X1.125X.065 ZCC This part replaces 446470. Price: $2.45 |
| 35 |
06445000 |
WSHR-FL-STL .515X1.625X.250 YZ Price: $5.45 |
| 36 |
03648300 |
FINGER - BELT Price: $19.45 |
| 37 |
06401106 |
WSHR, FLT .380X1.50X.125 ZCC This part replaces 06443400. Price: $3.45 |
