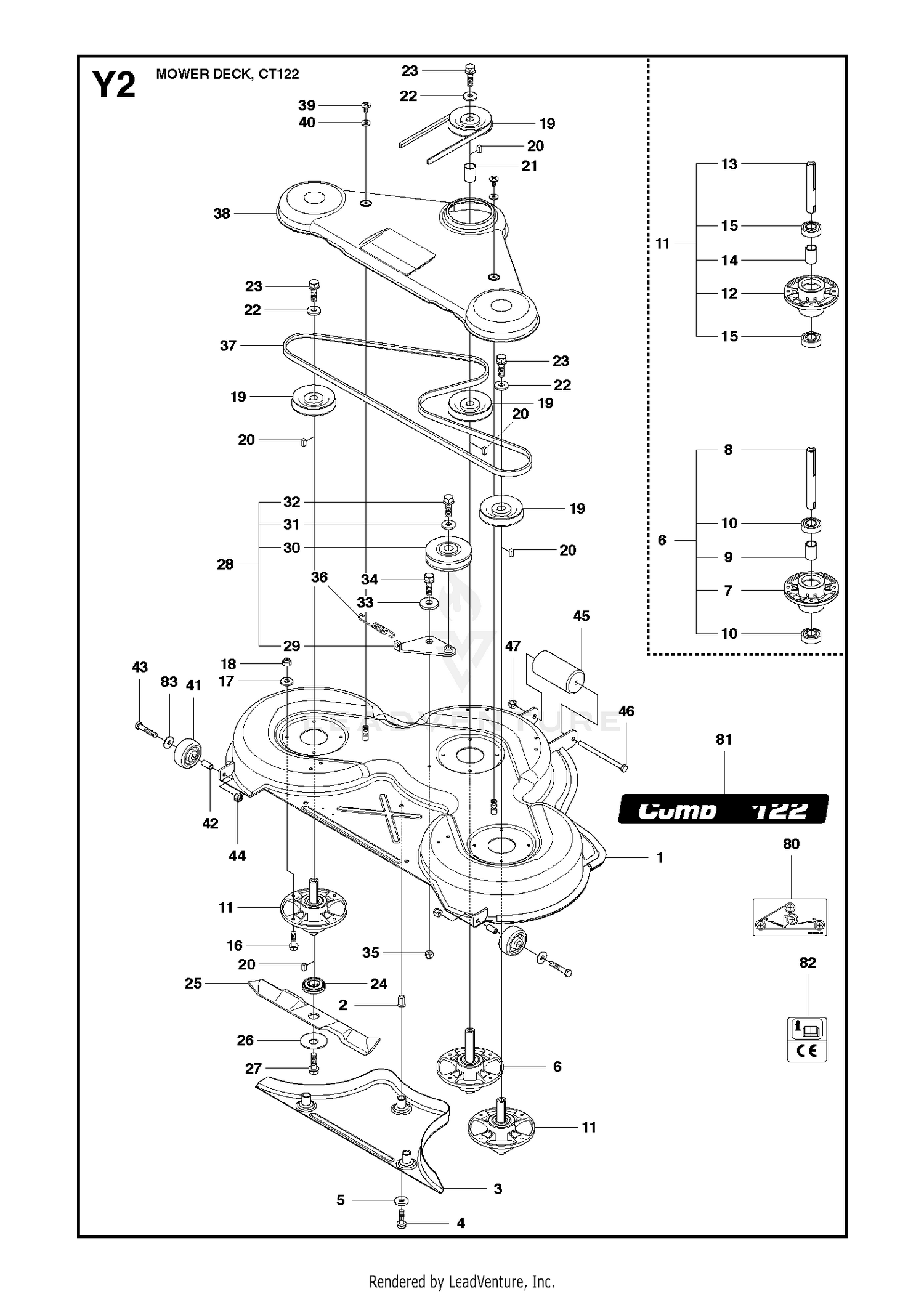

48"/122CM CUTTING DECK 2
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 340-72 | FITTING-BULKHEAD, 90 DEG Price: $41.27 |
| 1 | 522505601 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 105-8281 | TEE-BULKHEAD Price: $72.14 |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 105-5409 | HOSE ASM Price: $106.80 |
| 3 | 535428302 | NEEDS DESCRIPTION Price: Call Us |
| 4 | 105-5482 | TUBE-HYD Price: $88.67 |
| 4 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 5 | 107-2582 | TUBE-HYD Price: $105.73 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 132-9530 | TUBE-HYD Price: $71.49 |
| 6 | 535428601 | NEEDS DESCRIPTION Price: Call Us |
| 7 | 105-5493 | TUBE-HYD Price: $112.29 |
| 7 | 535428901 | BEARING HOUSING Price: $119.99 |
| 8 | 93-2509 | CLAMP-TUBE Price: $14.32 |
| 9 | 321-11 | SCREW-HH Price: $0.36 |
| 9 | 535428801 | SPACER Price: $7.99 |
| 10 | 104-7201 | NUT-HF Price: $0.69 |
| 10 | 738220519 | BALL BEARING Price: $6.99 |
| 11 | 139-6533 | HOSE ASM This part replaces 105-5400. Price: $118.22 |
| 11 | 535428602 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 105-5402 | HOSE-HYD Price: $69.67 |
| 12 | 535428901 | BEARING HOUSING Price: $119.99 |
| 13 | 139-6531 | HOSE ASM This part replaces 105-5401. Price: $130.02 |
| 13 | 535428702 | AXLE Price: $49.99 |
| 14 | 340-132 | FITTING-ELBOW, 90 DEG Price: $24.64 |
| 14 | 535428801 | SPACER Price: $7.99 |
| 15 | 340-98 | FITTING-ELBOW, 90 DEG Price: $31.91 |
| 15 | 738220519 | BALL BEARING Price: $6.99 |
| 16 | 120-2072 | HYD MOTOR ASM Price: $646.57 |
| 16 | 535423801 | BOLT Price: $4.99 |
| 17 | 340-4 | FITTING-STRAIGHT Price: $11.58 |
| 17 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 18 | 105-8253-01 | BRACKET-BULKHEAD Price: $61.73 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 125-1984 | SPACER Price: $0.68 |
| 19 | 535429001 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 240-3 | GROMMET-RUBBER Price: $17.44 |
| 20 | 506533501 | KEY Price: $3.99 |
| 21 | 535428801 | SPACER Price: $7.99 |
| 22 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 22 | 535429201 | Price: Call Us |
| 23 | 725254251 | Screw Price: $4.99 |
| 23 | HY3225 | DISCONTINUED This part replaces 322-5. Price: Call Us |
| 24 | 340-70 | NUT-LOCK Price: $2.10 |
| 24 | 535504201 | Price: Call Us |
| 25 | 340-74 | NUT-LOCK, BULKHEAD Price: $4.83 |
| 25 | 535429410 | BLADE Price: $24.99 |
| 26 | 506792302 | WASHER Price: $12.99 |
| 26 | 69-9010 | WASHER Price: $1.83 |
| 27 | 701243 | SCREW-THD ROLL, HWH Price: $2.59 |
| 27 | 725254251 | Screw Price: $4.99 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 29 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 30 | 506532701 | PULLEY Price: $39.99 |
| 31 | 734116441 | SPACER Price: $3.99 |
| 32 | 506558302 | BOLT Price: $3.99 |
| 33 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 34 | 725245171 | SCREW Price: $2.08 |
| 35 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 36 | 506533101 | SPRING Price: $9.99 |
| 37 | 589533001 | NEEDS DESCRIPTION Price: Call Us |
| 38 | 535429601 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 506982601 | SCREW Price: $5.99 |
| 40 | 506559701 | WASHER Price: $4.99 |
| 41 | 591052601 | NEEDS DESCRIPTION This part replaces 505441601. Price: $24.99 |
| 42 | 505450301 | TUBE Price: $9.99 |
| 43 | 725250271 | SCREW Price: $6.99 |
| 44 | 732212001 | NUT Price: $3.99 |
| 45 | 539002472 | ROLLER This part replaces 544185401. Price: $77.99 |
| 46 | 544221001 | Price: Call Us |
| 47 | 732212201 | Price: $2.67 |
| 80 | 506789701 | Decal Price: $21.55 |
| 81 | 544238113 | NEEDS DESCRIPTION Price: Call Us |
| 82 | 506929001 | DECAL Price: $3.99 |
| 83 | 734117441 | WASHER Price: $3.99 |
