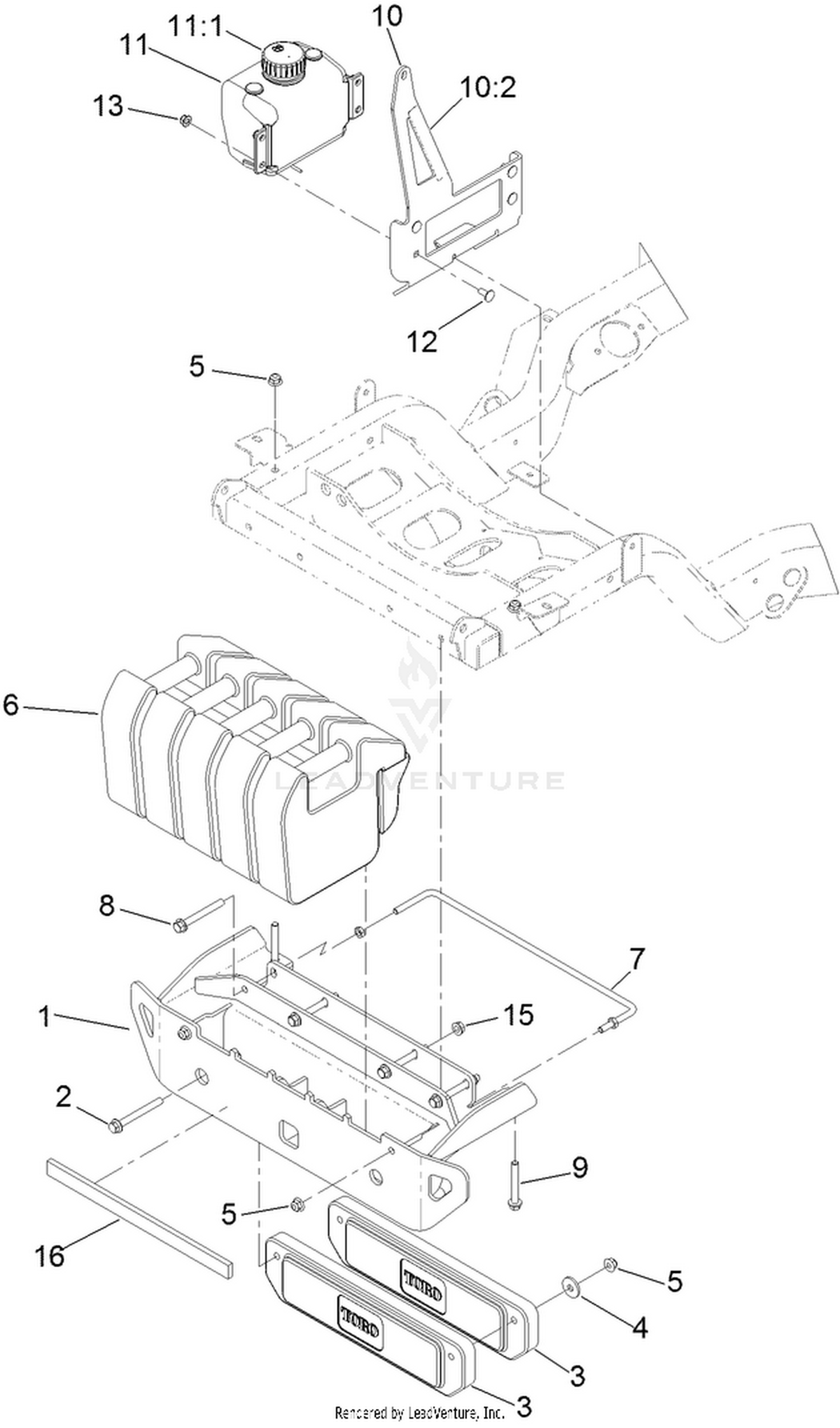

Bumper and Weight Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139-2328SP | REAR BUMPER Price: $655.96 |
| 2 | 116-4701 | SCREW-HHF Price: $2.59 |
| 3 | 112-7059-01 | WEIGHT-CAST Price: $136.07 |
| 4 | 125-9676 | WASHER-BACKUP Price: $1.70 |
| 5 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 6 | 114-4096 | WEIGHT Price: $189.38 |
| 7 | 125-2667 | LOCK-WEIGHT Price: $87.12 |
| 8 | 3234-41 | SCREW-HHF Price: $0.31 |
| 9 | 133-9682 | SCREW-HFH Price: $1.49 |
| 10 | 140-4411 | BRACKET-WASHER BOTTLE (SERVICE) Price: $81.00 |
| 11 | 138-2702 | TANK-FLUID, WASHER Price: $152.45 |
| 12 | 3230-23 | SCREW-CARR Price: $0.89 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 15 | 32128-43 | NUT-FLANGE Price: $0.94 |
