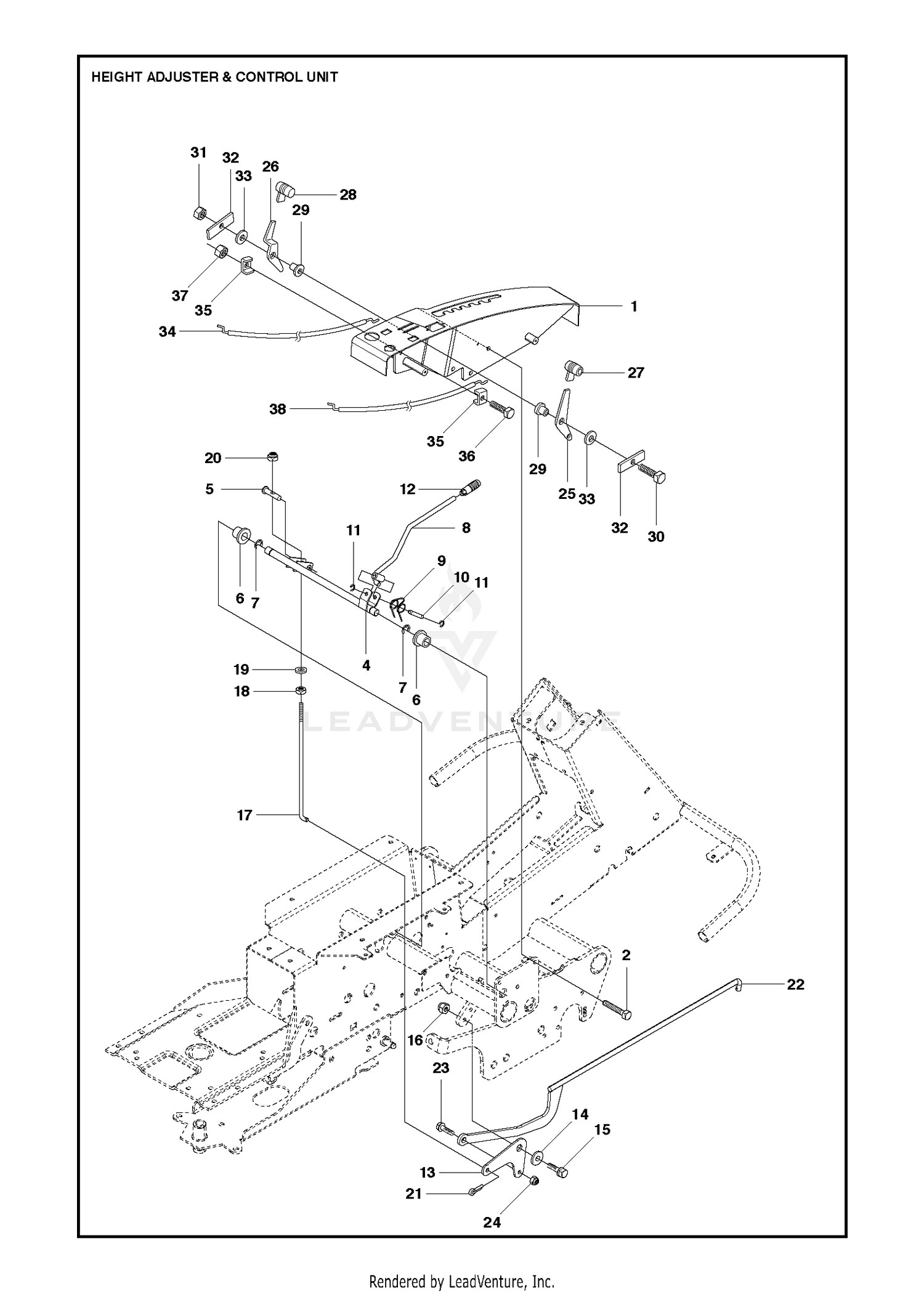

HEIGHT ADJUSTMENT
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535475402 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 725245171 | SCREW Price: $2.08 |
| 4 | 506784502 | ARM Price: $63.09 |
| 5 | 506784601 | Pins Price: $4.99 |
| 6 | 584871302 | BEARING FLANGE This part replaces 506554301. Price: $4.99 |
| 7 | 735312220 | CIRCLIP Price: $3.99 |
| 8 | 506784701 | LEVER Price: $54.99 |
| 9 | 506531401 | HAIR PIN SPRING Price: $5.44 |
| 10 | 108-2866 | NOZZLE HOLDER KIT Price: $438.88 |
| 10 | 506531501 | PIVOT PIN Price: $3.07 |
| 11 | 735310920 | E-RING 5 Price: $3.99 |
| 12 | 588164101 | Handles This part replaces 506542001. Price: $11.99 |
| 13 | 502636301 | NEEDS DESCRIPTION Price: Call Us |
| 14 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 15 | 725245371 | SCREW Price: $4.99 |
| 16 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 17 | 506854501 | Price: $16.04 |
| 18 | 731231801 | NUT Price: $3.99 |
| 19 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 20 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 20 | 99-8301 | NUT Price: $8.64 |
| 21 | 721618301 | Split Pin Price: $1.99 |
| 22 | 502636402 | NEEDS DESCRIPTION Price: Call Us |
| 23 | 506597401 | BOLT Price: $5.99 |
| 24 | 731231801 | NUT Price: $3.99 |
| 25 | 506865903 | Price: $12.34 |
| 27 | 506889101 | HANDLE Price: $4.99 |
| 28 | 506889102 | KNOB Price: $11.99 |
| 29 | 506888901 | BUSHING Price: $8.99 |
| 30 | 725237471 | SCREW M6S 6X30 Price: $4.99 |
| 30 | 99-8302 | WASHER-ADJUSTING Price: $7.16 |
| 31 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 32 | 506928502 | Price: $4.88 |
| 33 | 506839401 | SPRINGWASHER Price: $3.99 |
| 34 | 506863908 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 506508201 | CLAMP Price: $3.99 |
| 36 | 725233551 | SCREW Price: $3.99 |
| 37 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 38 | 506863909 | NEEDS DESCRIPTION Price: Call Us |
| 40 | 99-8303 | SPRING-NOZZLE Price: $11.49 |
| 50 | 99-8304 | SPACER-DISTANCE Price: $29.26 |
| 60 | 99-8305 | ROD-PUSH Price: $60.67 |
| 70 | 99-8306 | NUT-NOZZLE Price: $34.65 |
| 80 | 99-8307 | WASHER-PLAIN Price: $8.84 |
| 90 | 107-7826 | PIECE-NOZZLE Price: $95.55 |
| 100 | 99-8309 | ADJUSTING WASHER ASM Price: $56.19 |
| 110 | 99-8310 | WASHER-ADJUST (0.10MM) Price: $2.74 |
| 110 | 99-8311 | WASHER-ADJUST (0.20MM) Price: $3.56 |
| 110 | 99-8312 | WASHER-ADJUST (0.30MM) Price: $2.74 |
| 110 | 99-8313 | WASHER-ADJUST (0.40MM) Price: $2.74 |
| 110 | 99-8314 | WASHER-ADJUST (0.50MM) Price: $1.91 |
| 110 | 99-8315 | WASHER-ADJUST (0.52MM) Price: $1.91 |
| 110 | 99-8316 | WASHER-ADJUST (0.54MM) Price: $1.91 |
| 110 | 99-8317 | WASHER-ADJUST (0.56MM) Price: $1.91 |
| 110 | 99-8318 | WASHER-ADJUST (0.58MM) Price: $1.91 |
| 110 | 99-8319 | WASHER-ADJUST (0.80MM) Price: $1.91 |
| 120 | 98-7676 | GASKET Price: $2.73 |
