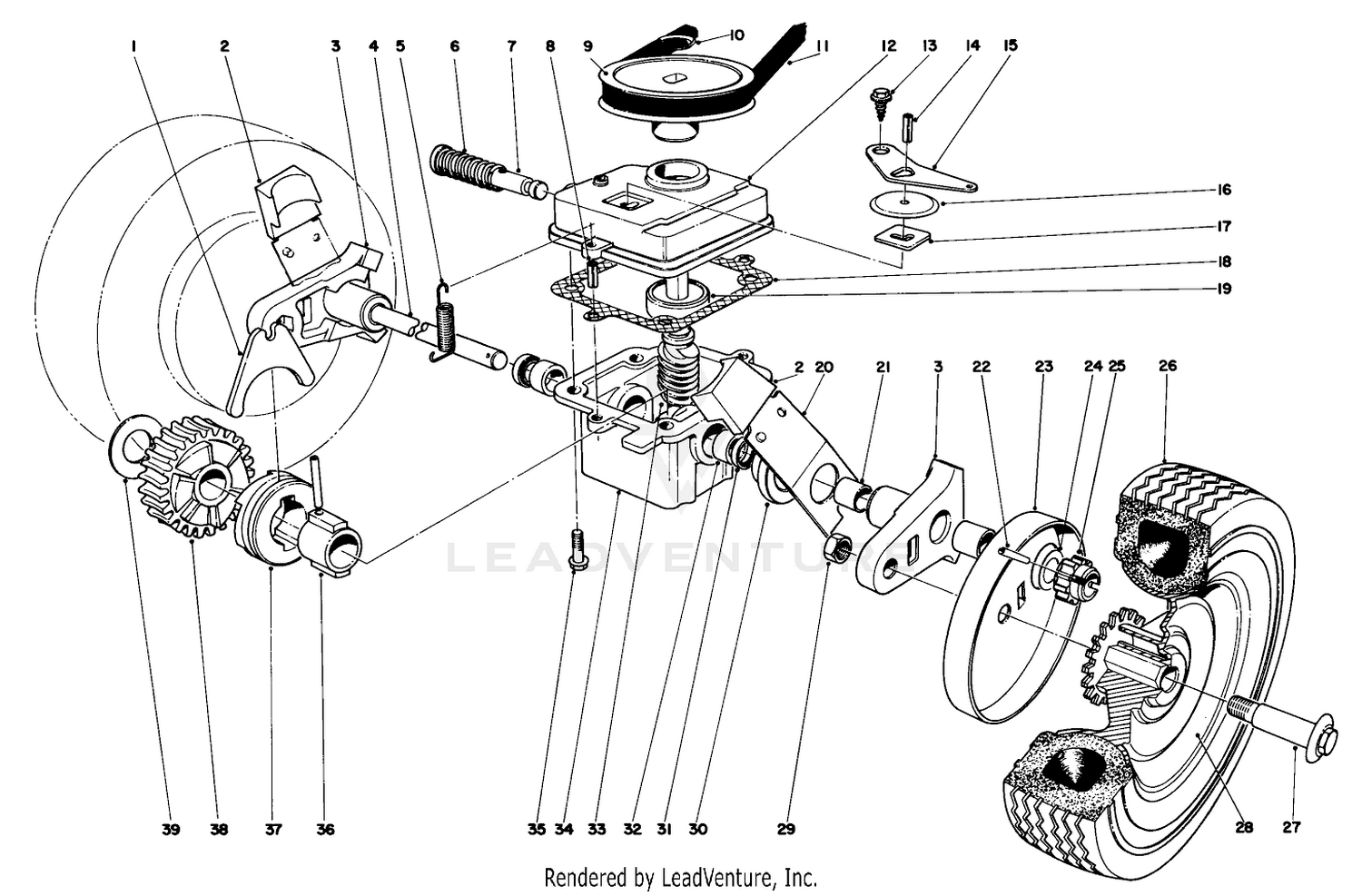

| Ref | Part Number | Description |
|---|
| 1 |
5-3247 |
SHIFTER FORK Price: $11.89 |
| 2 |
25-7740 |
KNOB-ARM This part replaces 8-4220. Price: $3.38 |
| 3 |
18-9710 |
DISCONTINUED Price: Call Us |
| 4 |
37-9440 |
DRIVE SHAFT (SERVCE) This part replaces 18-9730. Price: $103.14 |
| 5 |
17-4490 |
TENSION SPRING Price: $12.52 |
| 6 |
3-0731 |
SPRING Price: $6.52 |
| 7 |
46-8240 |
SHIFTER ROD This part replaces 5-3248. Price: $26.92 |
| 9 |
18-9760 |
PULLEY Price: $44.12 |
| 10 |
3290-346 |
PUSH-ON 93-3236 Price: $5.17 |
| 11 |
5-4505 |
BELT-V Price: $14.21 |
| 12 |
5-3283 |
DISCONTINUED Price: Call Us |
| 13 |
32144-112 |
SCREW-HWH This part replaces 32140-64. Price: $0.99 |
| 14 |
32121-23 |
PIN-ROLL Price: $1.33 |
| 15 |
5-3252 |
SHIFTER ARM Price: $22.50 |
| 16 |
3-2615 |
DISCONTINUED Price: Call Us |
| 17 |
3-0681 |
LATCH PLATE Price: $37.50 |
| 18 |
3-0734 |
GASKET Price: $5.65 |
| 19 |
47-7460 |
BALL BEARING This part replaces 251-250. Price: $51.08 |
| 20 |
10-4380 |
DISCONTINUED Price: Call Us |
| 21 |
256-1 |
BUSHING Price: $21.99 |
| 22 |
32121-88 |
COIL PIN Price: $7.79 |
| 23 |
18-9820 |
WHEEL COVER Price: $24.73 |
| 24 |
18-9810 |
WASHER-THRUST Price: $7.99 |
| 25 |
99-2532 |
KIT-PINION GEAR This part replaces 18-9690. Price: $8.66 |
| 26 |
4-2600 |
DISCONTINUED Price: Call Us |
| 27 |
99-5651 |
WHEEL BOLT & NUT This part replaces 3-2652. Price: $1.15 |
| 28 |
11-9470 |
DISCONTINUED Price: Call Us |
| 29 |
3296-6 |
NUT-LOCK This part replaces 32146-12. Price: $1.49 |
| 30 |
5-0745 |
DISCONTINUED Price: Call Us |
| 31 |
47-7260 |
SEAL This part replaces 253-86. Price: $5.36 |
| 32 |
47-2890 |
BUSHING This part replaces 256-110. Price: $3.19 |
| 33 |
18-9700 |
WORM SHAFT Price: $238.37 |
| 34 |
5-4459 |
DISCONTINUED This part replaces 5-4609. Price: Call Us |
| 35 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 36 |
3-0721 |
SLEEVE Price: $29.03 |
| 37 |
19-5660 |
CLUTCH JAW Price: $26.27 |
| 38 |
18-9740 |
DISCONTINUED Price: Call Us |
| 39 |
3-0724 |
THRUST WASHER Price: $5.65 |
