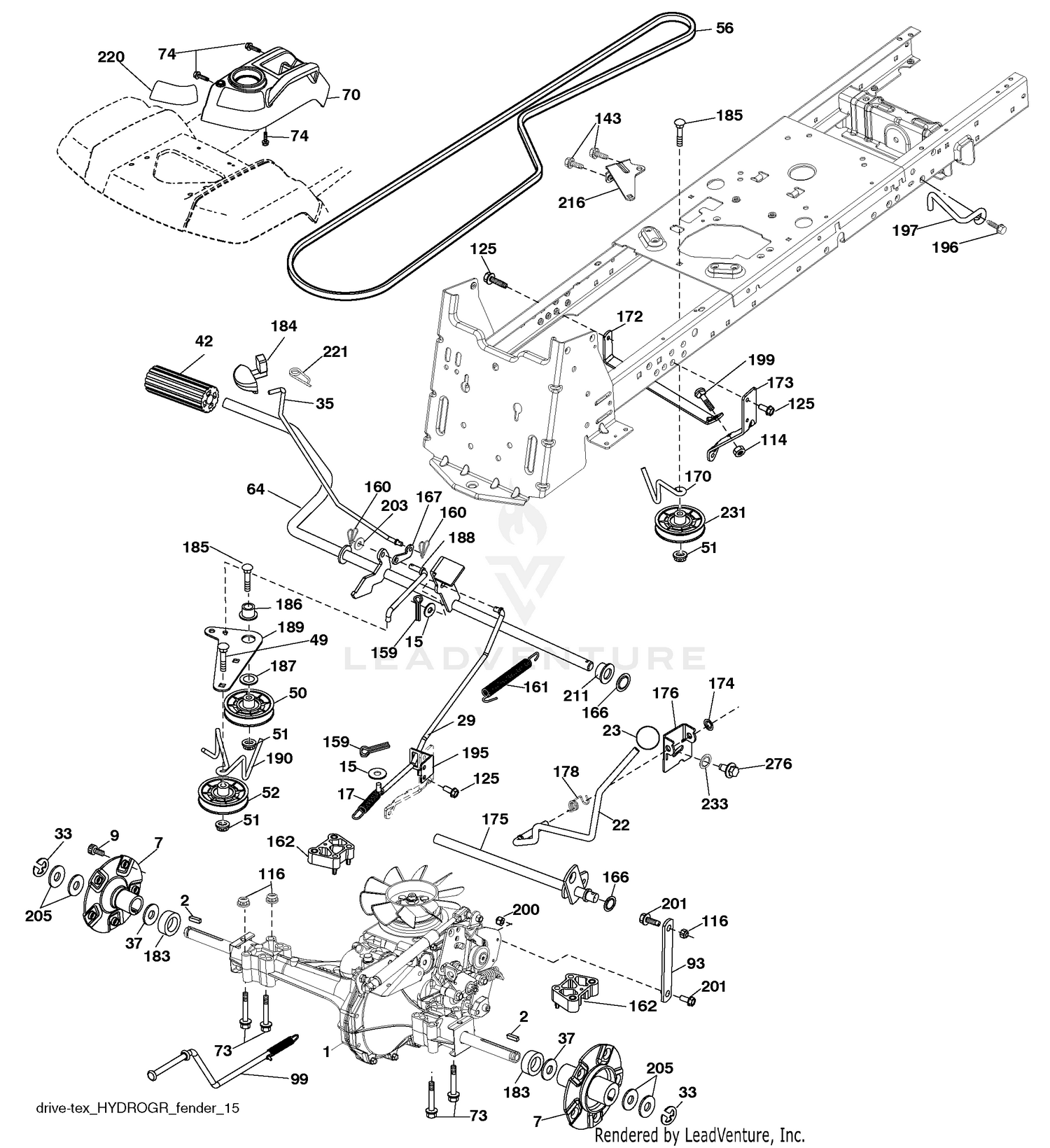

| Ref | Part Number | Description |
|---|
| 1 |
100-6589 |
SEAL-OIL Price: $52.62 |
| 2 |
100-6593 |
SEAL-OIL Price: $87.39 |
| 2 |
532186211 |
KEY.SQUARE.187X2.500 Price: $3.99 |
| 3 |
32151-75 |
RING-RETAINING This part replaces 100-6594. Price: $2.51 |
| 4 |
100-6596 |
SCREW-PPH Price: $2.99 |
| 5 |
100-6597 |
RING-SNAP, EXTERNAL Price: $6.69 |
| 6 |
93-8925 |
ROLLER Price: $23.82 |
| 7 |
531170101 |
SERVICE.KIT HUB ASM HUB.ASM.WH This part replaces 532199844. Price: $49.99 |
| 7 |
93-8919 |
BEARING-NEEDLE, THRUST Price: $44.05 |
| 8 |
93-8923 |
SPRING-WAVE Price: $107.72 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 9 |
99-2902 |
BEARING Price: $30.99 |
| 10 |
92-9705 |
BEARING Price: $69.99 |
| 11 |
3274-9 |
SCREW-HSH This part replaces 3245-6. Price: $2.99 |
| 12 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 13 |
71-6790 |
SEAL-OIL Price: $28.50 |
| 14 |
106-7867 |
ROLL CAGE ASM This part replaces 100-2568. Price: $251.86 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 22 |
532197329 |
ROD.SHIFT.FENDER.STGT. Price: $74.99 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 29 |
532197659 |
ROD.BRAKE.HG-0510 Price: $19.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532140218 |
V-BELT. Price: $49.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 70 |
532439660 |
SUBASM.CONSOLE.HUSQ.GT.HYDRO This part replaces 532400298. Price: $79.99 |
| 73 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 93 |
532198254 |
LINK.SHIFT.T/A.0610.TE Price: $3.99 |
| 99 |
532406642 |
ROD.BYPASS.HYDRO.0510/0610.GT Price: $14.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532428305. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 172 |
532404175 |
Strap Torque LH Price: Call Us |
| 173 |
532197655 |
STRAP TORQUE RH Price: $5.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532197653 |
SHAFT.ASM.SHFT.HG0510/ Price: $17.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $6.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $4.99 |
| 183 |
532400424 |
SPACER.SPLIT.800X.350 Price: $4.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 195 |
532198012 |
BRKT.ROD.BRAKE.18/20/2 Price: $3.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 199 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 200 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 201 |
596231101 |
BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $5.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
