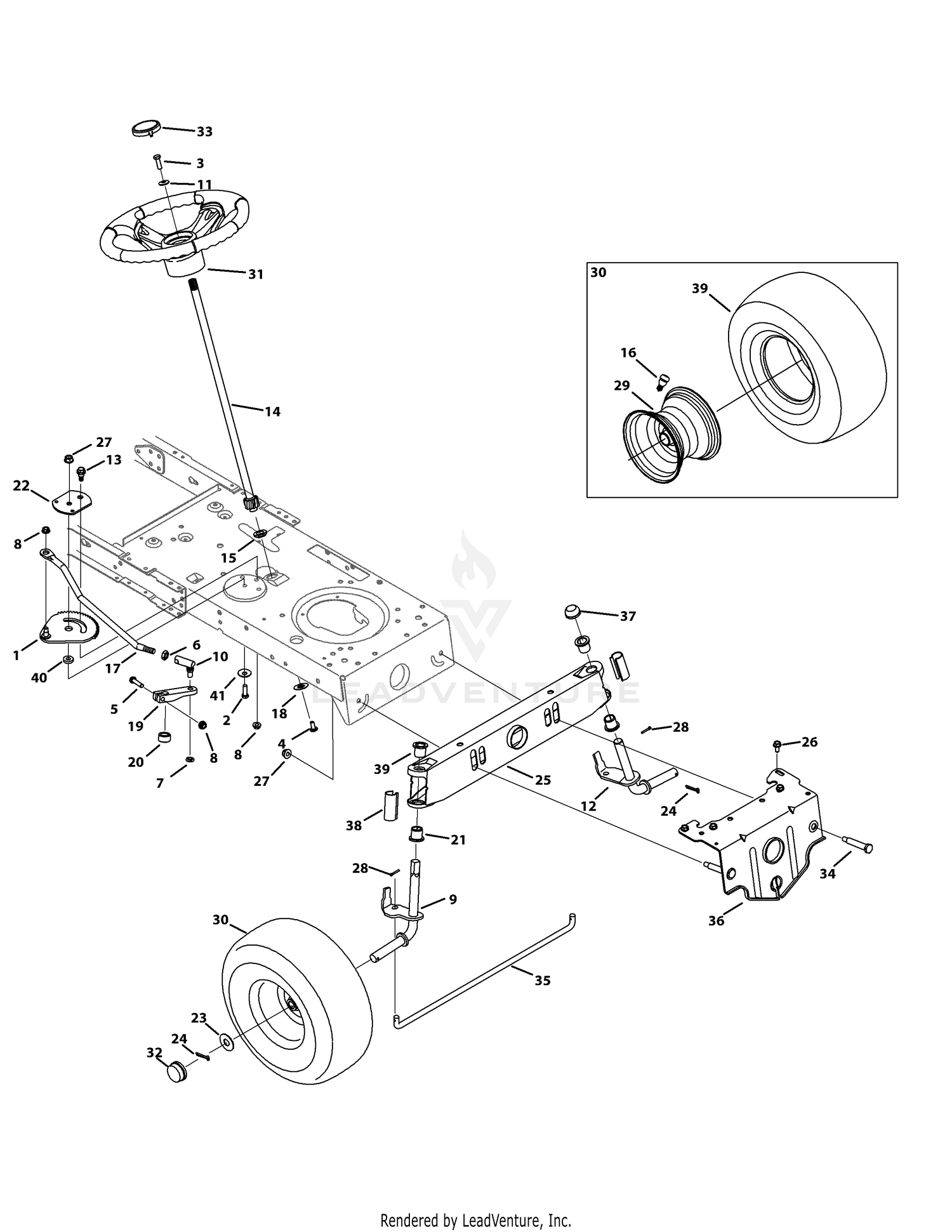

| Ref | Part Number | Description |
|---|
| 1 |
617Z04094A |
FRONT STEERING GEAR ASSEMBLY This part replaces 617-04094. Price: $25.79 |
| 2 |
710-0514 |
Hex Screw, 3/8-16 x 1.00 Price: $3.78 |
| 3 |
710-0643 |
Hex Screw, 5/16-18 x 1.00, Lock Price: $5.99 |
| 4 |
710-1309 |
Machine Screw, 5/16-18 x .750 Price: $3.86 |
| 5 |
710-3180 |
Hex Screw, 5/16-18 x 1.75 Price: $4.93 |
| 6 |
912-0240 |
Jam Nut, 7/16-20 Price: $3.90 |
| 7 |
912-0214 |
Jamlock Nut, 3/8-24 Price: $5.94 |
| 8 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 9 |
938-04013 |
AXLE ASSEMBLY, (RH) Price: $49.86 |
| 10 |
923-0448A |
Ball Joint, 7/16-20 Price: $22.55 |
| 11 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 12 |
938-04014A-0637 |
FRONT AXLE ASSEMBLY(LH) Price: $49.86 |
| 13 |
738-04141 |
Shoulder Bolt, 5/16-18 x .435 x .350 Price: $4.89 |
| 14 |
738P07154 |
STEERING SHAFT (5/8 DIA SPLINE) This part replaces 938-05078. Price: $49.29 |
| 15 |
741-04124 |
Bearing, Flange, Hex 5/8 This part replaces 941-04124. Price: $4.89 |
| 16 |
934-0255 |
Valve, tubeless Air Price: $3.83 |
| 17 |
747-05385A |
Steering Link Price: $18.41 |
| 18 |
948-0389 |
Cap, 1.25 x .16 Price: $4.40 |
| 19 |
748-04278 |
Steering, Block This part replaces 748-04278-0637. Price: $18.48 |
| 20 |
748-04068 |
Spacer, .71 x .125 x .56 Price: $3.56 |
| 21 |
741-0660A |
Flange Bearing, .760 x .941 x 1.0 Price: $2.92 |
| 22 |
783P08577A |
STABILIZER PLATE This part replaces 783-08577. Price: $6.48 |
| 23 |
736-04228B |
FLAT WASHER .781 ID x1.590 OD This part replaces 736-04228A. Price: $4.59 |
| 24 |
714-0162 |
Cotter Pin, 5/32 x 1.25 Price: $4.29 |
| 25 |
683-0128B-0637 |
Pivot Axle Price: $85.22 |
| 26 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 27 |
912-0431 |
Flangelock Nut, 3/8-16 Price: $4.29 |
| 28 |
914-0474 |
Cotter Pin, .125 x .75 Price: $4.08 |
| 29 |
634-05066-0662 |
Rim Asm, 6.0 x 4.5 Price: $92.76 |
| 30 |
634-05067-0911 |
Wheel Ass’y, Sq. Shldr., 15 x 6 x 6 Price: $163.07 |
| 31 |
631-04008B |
Steering Wheel, Softgrip Price: $87.97 |
| 31 |
631-04028 |
Steering Wheel Price: $64.50 |
| 32 |
931-0484A |
Hub Cap Price: $5.98 |
| 33 |
731-04681 |
Cap, Troy-Bilt Price: $12.40 |
| 34 |
738-04128 |
Shoulder Bolt, 3/8-16 x .500 x 2.38 Price: $6.67 |
| 35 |
747-04299A |
Fixed Rod Price: $26.83 |
| 36 |
783-05326D-0637 |
PIVOT BAR BRACKET (POWDER BLACK) This part replaces 783-05326B-0637. Price: $29.27 |
| 37 |
726-0341 |
Push Cap, 3/4 Price: $4.26 |
| 38 |
731-04057A |
Standard Axle Cap Price: $4.59 |
| 39 |
734-1731-0901 |
Tire, 15 X 6 X 6 Sq Shoulder Price: $46.14 |
| 40 |
750-06192A |
Spacer, .38 ID x .854 OD x .20 Price: $3.70 |
