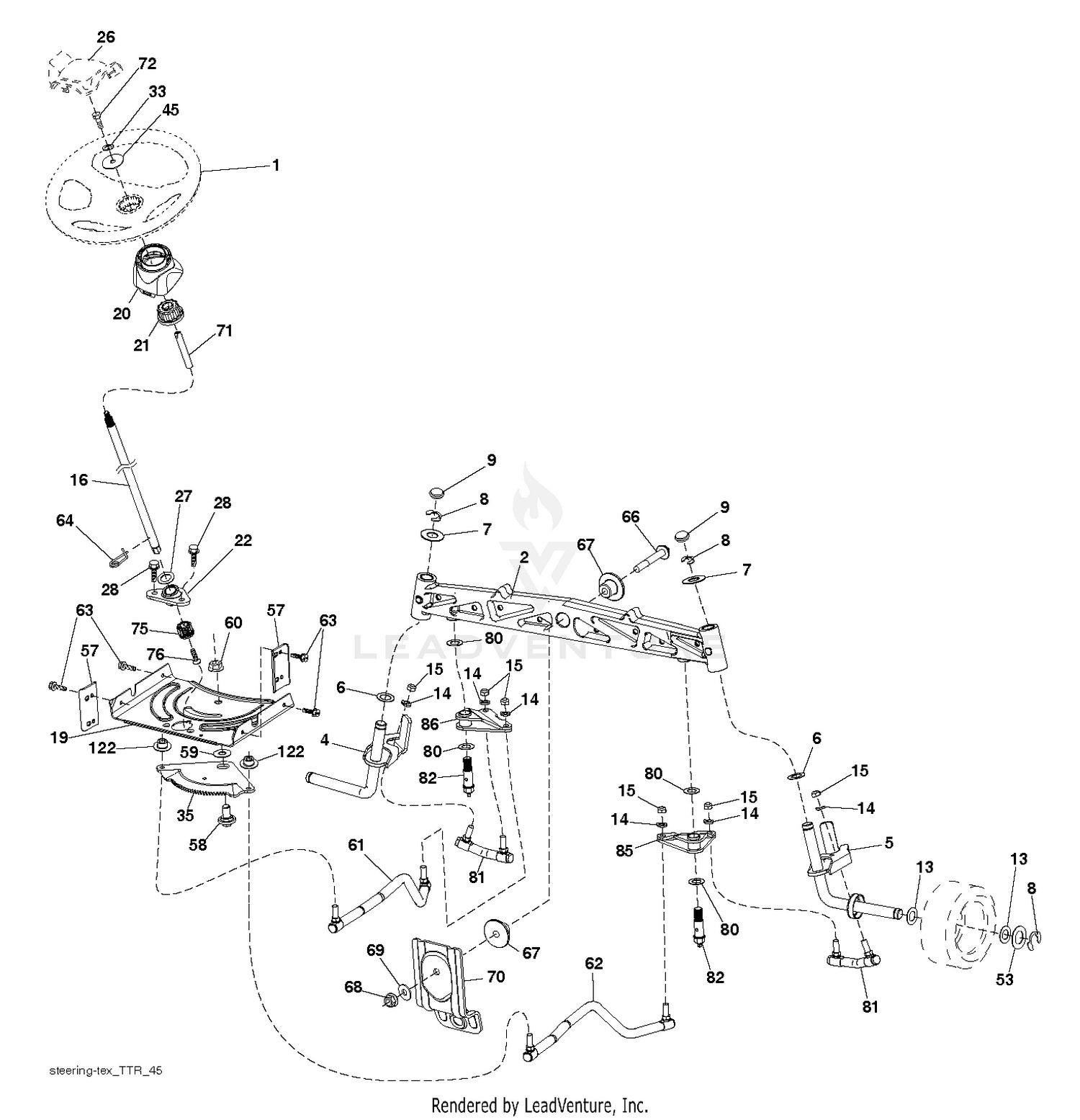

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 1 |
532424543 |
WHEEL.STEERING.HARD.RIM.BLAC Price: $27.99 |
| 2 |
583512701 |
SUBASM.AXLE.CAST.NZTR. This part replaces 532436870. Price: $149.99 |
| 2 |
63-8410 |
WASHER Price: $1.76 |
| 3 |
108-4376-03 |
BRACKET-GEARBOX Price: $106.67 |
| 4 |
63-9750 |
MOUNT Price: $18.92 |
| 5 |
110-0633-03 |
COVER-DECK, RH OUTER REAR Price: $38.46 |
| 5 |
583512901 |
WELDMENT.SPINDLE.RH.15.NZTR This part replaces 532436874. Price: $32.99 |
| 6 |
119-4804-03 |
COVER-DECK, RH OUTER FRONT Price: $27.38 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number) Price: $1.99 |
| 8 |
108-4052 |
SPRING-TORSION Price: $23.99 |
| 8 |
812000029 |
Ring, Klip #T5304-75 (AYP part number) Price: $1.99 |
| 9 |
105-4622 |
SPACER Price: $9.99 |
| 9 |
532121232 |
Cap Spindle Fr Top Blk (AYP part number) Price: $1.99 |
| 10 |
108-2792 |
RUBBER DEFLECTOR ASM Price: $217.99 |
| 11 |
112-9557 |
SCREW-HH Price: $3.94 |
| 12 |
106-3216-01 |
BAFFLE-DISCHARGE Price: $23.99 |
| 13 |
107-1664 |
LEVER ASM Price: $71.99 |
| 13 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $1.99 |
| 14 |
105-7697 |
WASHER-PLASTIC Price: $2.29 |
| 14 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 15 |
105-7669-01 |
BAFFLE Price: $256.99 |
| 15 |
873540600 |
Nut, Crownlock 3/8-24 (AYP part number) Price: $1.99 |
| 16 |
105-7730-01 |
BAFFLE Price: $148.99 |
| 17 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 18 |
1-804254 |
NUT-LOCK, HH Price: $1.29 |
| 19 |
119-4801-03 |
COVER-DECK, LH OUTER Price: $50.96 |
| 19 |
532194729 |
PLATE.STEER.DDL.NLT/NG Price: $12.99 |
| 20 |
106-6778 |
BUSHING-LATCH, SWELL Price: $1.28 |
| 20 |
532409763 |
BOOT.STEERING.PREDATOR.LT.BLAC Price: $4.99 |
| 21 |
106-6777 |
HANDLE-LATCH, SWELL Price: $22.20 |
| 21 |
532437747 |
STEERING.WHEEL.ADAPTER Price: $19.99 |
| 22 |
117-6989 |
FRACTIONAL TURN OVAL HEAD STUD ASM Price: $13.02 |
| 22 |
585029901 |
BEARING.SUBASM.SHAFT.STEER.LOW Price: $4.99 |
| 23 |
119-4802-03 |
COVER-DECK, LH INNER Price: $116.22 |
| 24 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 25 |
119-4803-03 |
COVER-DECK, RH INNER Price: $125.32 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 26 |
532424691 |
INSERT, WHEEL STEERING Price: $4.99 |
| 27 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 27 |
819211616 |
Washer 21/32 x 1 x 16 Gauge (AYP part number) Price: $3.99 |
| 28 |
108-1370 |
GEARBOX REPLACEMENT KIT Price: $862.61 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 29 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 30 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 31 |
93-6697 |
DECAL-LUBE Price: $11.38 |
| 32 |
115-1396 |
PLATE-TURBO Price: $29.53 |
| 33 |
3274-104 |
SCREW-HSBH Price: $0.54 |
| 33 |
539990187 |
WASHER 5/16 LOCK Price: $1.99 |
| 34 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 35 |
583551401 |
GEAR.SECTOR.TEX.NZTR (3 2) This part replaces 532440770. Price: $22.99 |
| 45 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $2.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $4.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $3.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
583513301 |
SUBASM.LINK.DRAG.LH.NZTR This part replaces 532436884. Price: $24.99 |
| 62 |
583513401 |
SUBASM.LINK.DRAG.RH.NZTR This part replaces 532436885. Price: $24.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $2.99 |
| 67 |
532194737 |
BUSHING.PM.FRONT AXLE Price: $3.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $2.99 |
| 70 |
585338801 |
BRACKET.FRT.DECK.SUSP.RR.MT431 Price: $5.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $9.99 |
| 72 |
532428982 |
BOLT 5/16-18 X 4 W/PATCH Price: $2.99 |
| 75 |
580683702 |
PINION.ZINC PLATED This part replaces 580683701. Price: $2.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $1.99 |
| 80 |
532001370 |
Washer, Thrust 5/8 x 1.10 x 1/32 (AYP part number) Price: $2.99 |
| 81 |
583513501 |
SUBASM.LINK.CROSS.RH.NZTR This part replaces 532436887. Price: $11.99 |
| 82 |
532442147 |
SUBASM;PIVOT;BOLT;NZTR Price: $3.99 |
| 85 |
583561101 |
SUBASM.PIVOT.RH.NZTR This part replaces 532441873. Price: $24.99 |
| 86 |
583561001 |
SUBASM.PIVOT.LH.NZTR This part replaces 532441872. Price: $24.99 |
