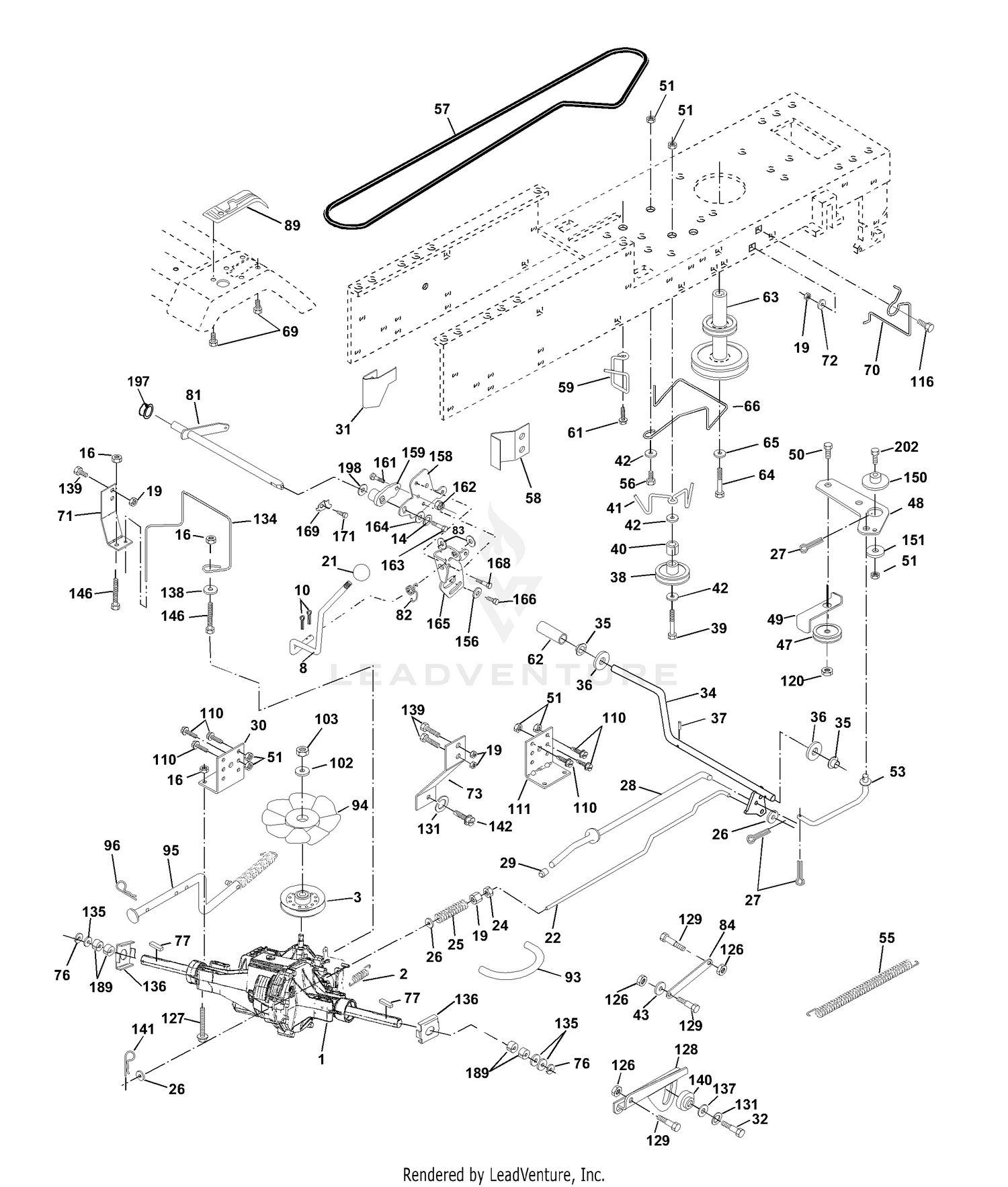

| Ref | Part Number | Description |
|---|
| 2 |
142431 |
Spring, Brake Return Price: Call Us |
| 3 |
143995 |
Pulley, Hydro Price: Call Us |
| 8 |
166020 |
Rod Shift Fender Adjust Yt Price: Call Us |
| 10 |
76020416 |
Pin, Cotter 1/8 x 1 Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 16 |
73800500 |
Nut Lock Hx w/Ins. 5/16-18 Unc Price: Call Us |
| 19 |
73800600 |
Nut, Lock Hex w/Ins. 3/8-16 UNC Price: Call Us |
| 21 |
140845 |
Knob Price: Call Us |
| 22 |
158274 |
Rod, Brake Price: Call Us |
| 24 |
73350600 |
Nut, Hex Jam 3/8-16 Price: Call Us |
| 25 |
106888X |
Spring, Rod, Brake Price: Call Us |
| 26 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 27 |
76020412 |
Pin, Cotter 1/8 x 3/4 Price: Call Us |
| 28 |
145204 |
Rod, Brake, Park Price: Call Us |
| 29 |
71673 |
Cap, Brake Parking Black Price: Call Us |
| 30 |
123780X |
Bracket, Transaxle, L.H. Price: Call Us |
| 31 |
123791X |
Keeper, Belt, Transaxle, L.H. Price: Call Us |
| 32 |
74760512 |
Bolt Hex Hd. 5/16-18 Unc x 3/4 Price: Call Us |
| 34 |
155071 |
Shaft, Foot Pedal Price: Call Us |
| 35 |
120183X |
Bearing Nylon Price: Call Us |
| 36 |
19211616 |
Washer 21/32 x 1 x 16 Gauge Price: Call Us |
| 37 |
1572H |
Pin,Roll 3/16 x 1 Price: Call Us |
| 38 |
131494 |
Idler, Flat Price: Call Us |
| 39 |
74760644 |
Bolt Rdhd 3/8-16 Unc x 2-3/4 Price: Call Us |
| 40 |
4470J |
Spacer Price: Call Us |
| 41 |
165838 |
Keeper, Idler Price: Call Us |
| 42 |
19131312 |
Washer 13/32 x 13/16 x 12 Gauge Price: Call Us |
| 43 |
19111012 |
Bolt Shoulder 5/16-18 Unc Price: Call Us |
| 47 |
127783 |
Pulley, Idler Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv Stl Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
74760624 |
Bolt, Hex 3/8-16 x 1-1/2 Price: Call Us |
| 51 |
73680600 |
Nut, Crownlock 3/8-16 Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
161741 |
V-Belt, Drive Price: Call Us |
| 58 |
158278 |
Keeper, Belt, Transaxle, R.H. Price: Call Us |
| 59 |
169691 |
Keeper Belt Centerspan Price: Call Us |
| 61 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 62 |
8883R |
Cover, Foot Pedal Price: Call Us |
| 63 |
161399 |
Pulley, Engine Price: Call Us |
| 64 |
71170764 |
Bolt, Hex 7/16-20 x 4-1/4 Price: Call Us |
| 65 |
10040700 |
Washer, Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
161488 |
Keeper Belt Engine F-proof Price: Call Us |
| 69 |
142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 Unc Price: Call Us |
| 70 |
162848 |
Keeper Belt Engine Price: Call Us |
| 71 |
158283 |
Strap Torque Lh Hydro-3000 Price: Call Us |
| 72 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
| 73 |
158282 |
Strap Torque Rh Hydro-3000 Price: Call Us |
| 76 |
12000053 |
E-Ring Price: Call Us |
| 77 |
9396E |
Key Square 1/4 x 2 Price: Call Us |
| 81 |
165598 |
Shaft Asm Cross Tapered Price: Call Us |
| 82 |
123782X |
Spring, Torsion Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Gauge Price: Call Us |
| 84 |
165926 |
Link Transaxle Price: Call Us |
| 89 |
164892X428 |
Console Price: Call Us |
| 93 |
142564 |
Line Fuel Hydro Price: Call Us |
| 94 |
140462 |
Fan Hydro Price: Call Us |
| 95 |
158508 |
Control Asm Bypass Hydro-3000 Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/cad. Price: Call Us |
| 101 |
141322 |
Washer Belliville 1/2 x 1-1/2 Price: Call Us |
| 103 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Unf Price: Call Us |
| 110 |
74760612 |
Bolt Hex 3/8-16 x 3/4 Price: Call Us |
| 111 |
123776X |
Bracket, Transaxle, R.H. Price: Call Us |
| 116 |
72110610 |
Bolt Rdhd Sq Neck 3/8-16 x 1/25 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 Unc Price: Call Us |
| 126 |
1685H |
Nut Lock 5/16-18 Nc Thd Price: Call Us |
| 127 |
74490548 |
Bolt Hex Flghd 5/16-18 x 3.0 Gr. 5 Price: Call Us |
| 128 |
158284 |
Bracket Neutral Adjust HG-3000 Price: Call Us |
| 129 |
105529X |
Bolt Shoulder 5/16-18 Unc Price: Call Us |
| 131 |
10140500 |
Washer Lock 5/16 Price: Call Us |
| 134 |
158272 |
Rod Actuator Bypass Hydro-3000 Price: Call Us |
| 135 |
123800X |
Washer 1-1/32 x 1-5/8 x 16 Gauge Price: Call Us |
| 136 |
163168X |
Washer Axle Flange Price: Call Us |
| 137 |
19111212 |
Washer 11/32 x 3/4 x 12 Ga. Price: Call Us |
| 138 |
19112016 |
Washer 11/32 x 1.25 x 16 Ga. Price: Call Us |
| 139 |
74760612 |
Bolt Fin Hex 3/8-16 x 3/4 Price: Call Us |
| 140 |
4475J |
Bushing Pinion Sector Price: Call Us |
| 141 |
159197 |
Pin Hitch Price: Call Us |
| 142 |
74330516 |
Bolt 5/16 x 24 x 1 Price: Call Us |
| 146 |
74490536 |
Bolt Hex Flghd 5/16-18 x 2-1/4 Price: Call Us |
| 150 |
165850 |
Bushing Bellcrank Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
165494 |
Hub Tapered Flange Shift Lt Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 Unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 Price: Call Us |
| 164 |
19091010 |
Washer 5/8 x .281 x 10 Ga Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
166880 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165581 |
Plate Fastening Lt Price: Call Us |
| 171 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Ty-Tt Price: Call Us |
| 189 |
160849 |
Washer Spacer Axle Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In 5/8" Id Price: Call Us |
| 198 |
169593 |
Washer Nyl 7/8 Id x .105 Price: Call Us |
