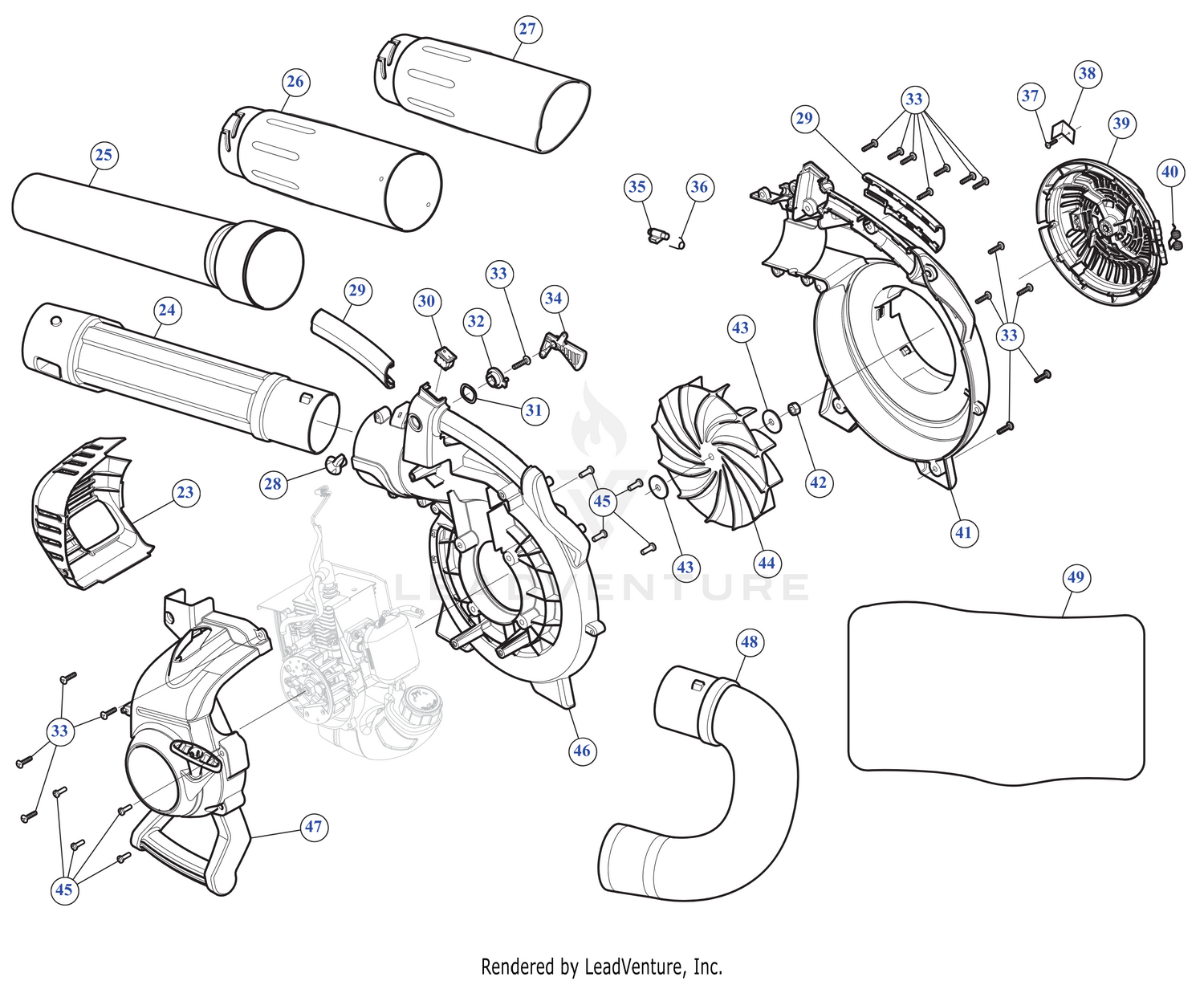

General Assembly — Parts Catalog

Ref	Part Number	Description
24	753-05936	UPPER TUBE Price: $16.85
25	753-05937	LOWER TUBE Price: $16.65
26	753-06660	UPPER VAC TUBE SCBLO Price: $12.22
27	791-180467	TUBE, LOWER VACUUM (ELEC BLWR- Price: $33.37
28	753-05932	TRIGGER LOCK OTR Price: $2.48
29	753-05919	ANDLE GRIP ASSEMBLY Price: $5.48
30	791-182405	SW, MOMENTARY ON/O Price: $9.29
31	736-04353	WAVE WASHER Price: $5.52
32	753-05924	TRIGGER LOCK INR Price: $2.45
33	710-04194	SCREW 8-16 x 3/4 Price: $3.66
34	753-05930	THROTTLE TRIGGER Price: $1.49
35	753-05926	LATCH TUBE Price: $2.45
36	753-05939	SPRING LATCH Price: $2.45
37	1755	SCREW-10-9 x .50 Price: $3.37
38	753-06696	DOOR LOCK SC Price: $2.44
40	753-05918	SPRING Price: $2.45
41	753-06679	IMPELLER HOUSING OTR Price: $18.41
42	712-0237	HEX NUT Price: $4.37
43	753-05928	WASHER FLAT Price: $2.62
44	753-05929	IMPELLER Price: $11.59
45	1964	SCREW:10-32X.5 Price: $3.89
46	753-06693	IMPELLER HOUSING INR Price: $15.17
48	753-06658	ELBOW TUBE Price: $12.51
