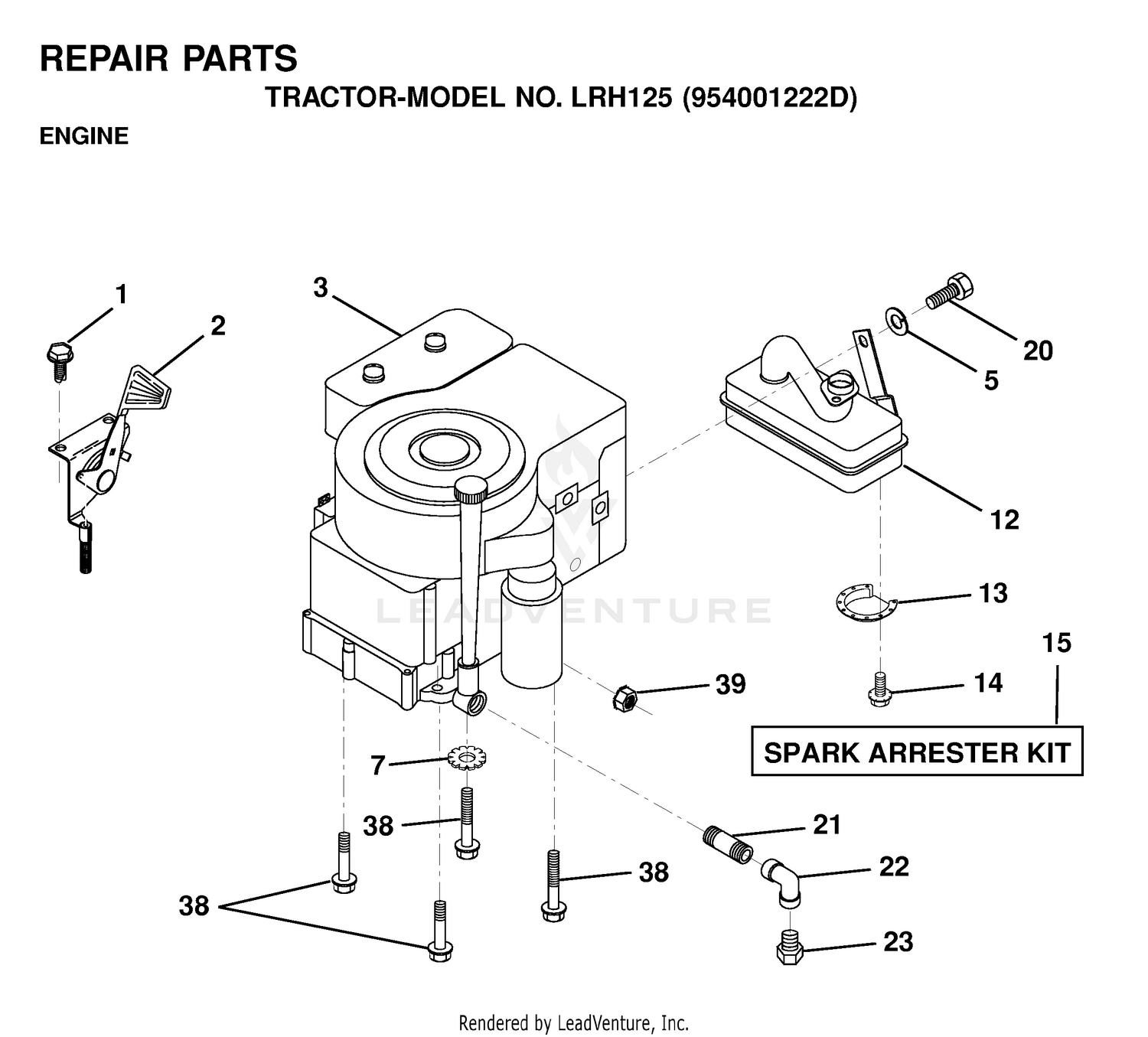

| Ref | Part Number | Description |
|---|
| 1 |
127-3023 |
CASE-GEAR Price: $644.39 |
| 1 |
817060408 |
SCREW Price: $4.99 |
| 2 |
125-6995 |
PIN Price: $5.45 |
| 2 |
532132753 |
THROTTLE CONTROL Price: $13.81 |
| 3 |
125-6972 |
COVER-FILLER Price: $10.14 |
| 4 |
125-7107 |
PIPE Price: $8.10 |
| 5 |
125-6909 |
O-RING Price: $2.55 |
| 5 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 6 |
127-2973 |
O-RING Price: $3.16 |
| 7 |
125-7197 |
O-RING Price: $2.55 |
| 7 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 8 |
125-7214 |
BOLT Price: $3.77 |
| 9 |
127-3024 |
GEARCASE COVER ASM Price: $475.19 |
| 11 |
125-6944 |
SEAL-OIL Price: $31.03 |
| 12 |
125-6977 |
COVER Price: $8.10 |
| 12 |
532138149 |
MUFFLER KOH Price: $82.19 |
| 13 |
125-7174 |
WASHER-SEAL Price: $5.45 |
| 13 |
532101326 |
DEFL MUFFLER LTV Price: $4.01 |
| 14 |
125-7214 |
BOLT Price: $3.77 |
| 14 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 15 |
125-7217 |
BOLT Price: $4.58 |
| 15 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 16 |
125-7218 |
BOLT Price: $3.48 |
| 17 |
125-7222 |
BOLT Price: $4.99 |
| 20 |
874760508 |
Bolt, Hex Head, Fin. 5/16-18 x 1/2 Price: $3.99 |
| 21 |
813280328 |
Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2 Price: $4.99 |
| 22 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 38 |
740108025 |
This part replaces 532125398. Price: $2.38 |
