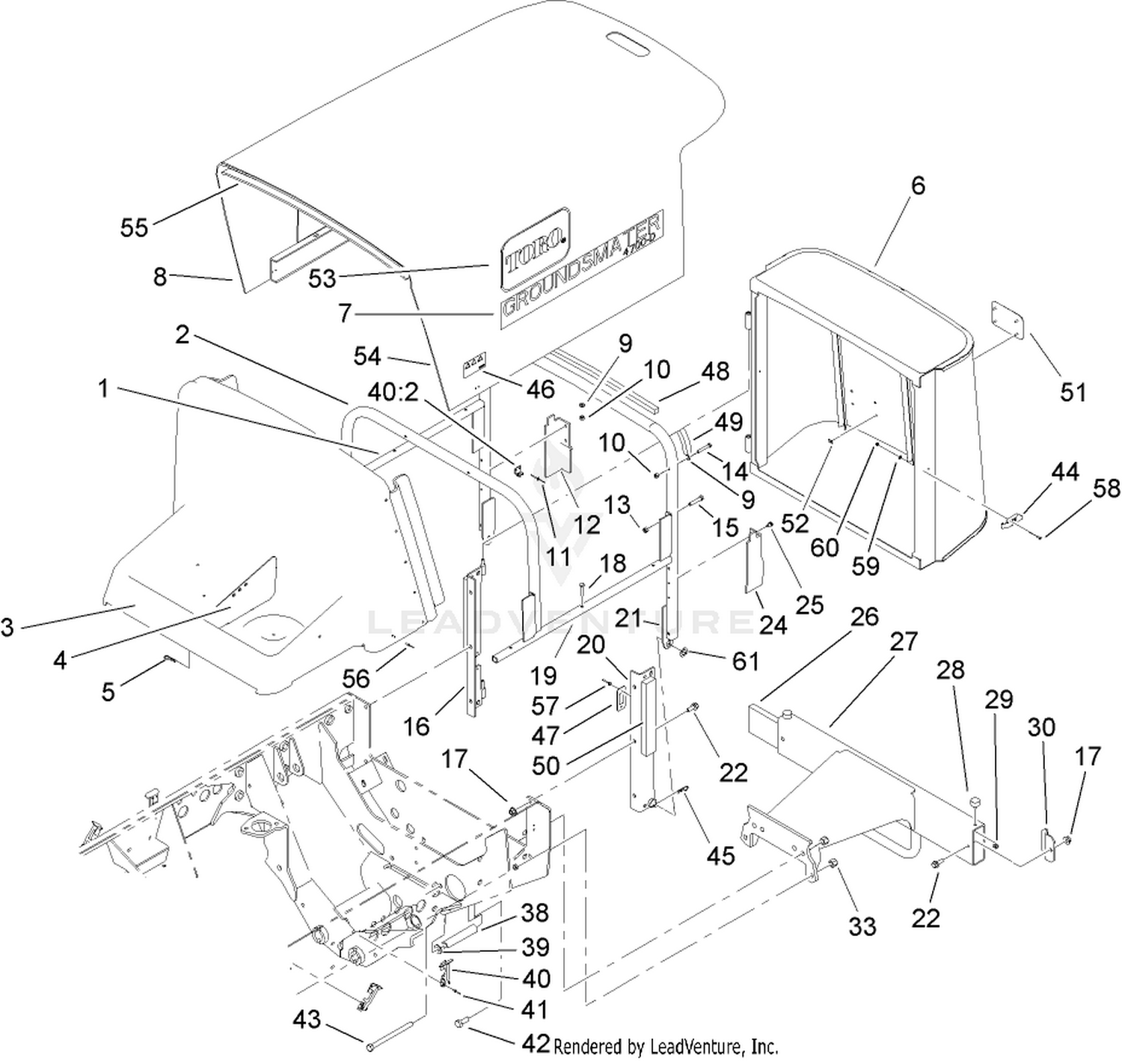

Hood Screen and Bumper Assembly
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-1975-03 | RH HOOD FRAME ASM Price: $108.48 |
| 2 | 107-1973-03 | TUBE-FRONT, HOOD Price: $122.99 |
| 3 | 104-5430 | SHROUD-FRONT Price: $800.09 |
| 4 | 104-5446-03 | DIVIDER-SHROUD Price: $13.82 |
| 5 | 3290-467 | PIN-HAIR Price: $0.27 |
| 6 | 104-5454-03 | SCREEN ASM Price: $1,429.79 |
| 7 | 105-9877 | DECAL Price: $59.64 |
| 8 | 119-2193 | HOOD ASM - SERVICE This part replaces 104-5419. Price: $2,838.64 |
| 9 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 10 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 11 | 3269-17 | RIVET-POP Price: $0.25 |
| 12 | 104-5431 | COVER-TUBE, RH Price: $47.12 |
| 13 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 14 | 321-10 | SCREW-HH Price: $1.29 |
| 15 | 322-9 | SCREW-HH Price: $3.09 |
| 16 | 104-5445-03 | RH SUPPORT ASM Price: $143.82 |
| 17 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 18 | 32-1140 | DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 19 | 107-1974-03 | LH HOOD FRAME ASM Price: $108.48 |
| 20 | 104-5444-03 | LH SUPPORT ASM Price: $143.23 |
| 21 | 110-0465-03 | REAR TUBE ASM Price: $292.26 |
| 22 | 3234-11 | SCREW-HHF Price: $1.23 |
| 24 | 104-5432 | COVER-TUBE, LH Price: $47.12 |
| 25 | 32104-17 | SCREW-HWH Price: $0.99 |
| 26 | 105-9199-03 | WEIGHT-BUMPER Price: $74.78 |
| 27 | 120-8020-03 | BUMPER-REAR This part replaces 105-9221-03. Price: $797.60 |
| 28 | 240-14 | BUMPER-RUBBER Price: $13.84 |
| 29 | 32128-33 | NUT-HF Price: $0.25 |
| 30 | 105-9200-03 | CLAMP-WEIGHT, BUMPER Price: $17.60 |
| 33 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 38 | 76-8350 | STOP-AXLE Price: $10.92 |
| 39 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 40 | 59-9740 | FLEX DRAW LATCH ASM Price: $36.89 |
| 41 | 3290-55 | RIVET-POP Price: $0.25 |
| 42 | 325-6 | SCREW-HH Price: $1.42 |
| 43 | 325-33 | SCREW-HH Price: $11.49 |
| 44 | 105-3912 | LATCH-DRAW Price: $42.01 |
| 45 | 3290-467 | PIN-HAIR Price: $0.27 |
| 46 | 106-6754 | DECAL-DANGER Price: $9.57 |
| 47 | 104-5459 | PLATE-LATCH Price: $8.83 |
| 48 | 105-9234 | SEAL-FOAM Price: $7.35 |
| 49 | 105-9237 | SEAL-FOAM Price: $2.48 |
| 50 | 105-9235 | SEAL-FOAM Price: $8.60 |
| 51 | 93-6028 | PLATE-LOGO Price: $13.70 |
| 52 | 94-2638 | NUT-FLAT Price: $0.54 |
| 53 | 66-1210 | DECAL Price: $27.06 |
| 54 | 3269-10 | WASHER-BACK Price: $0.61 |
| 55 | 105-9829 | SEAL-FOAM Price: $10.52 |
| 56 | 3290-55 | RIVET-POP Price: $0.25 |
| 57 | 3269-15 | RIVET-POP Price: $0.54 |
| 58 | 3249-3 | SCREW-PRH Price: $0.34 |
| 59 | 3256-53 | WASHER-FLAT Price: $0.25 |
| 60 | 3296-9 | NUT-HEX Price: $0.25 |
