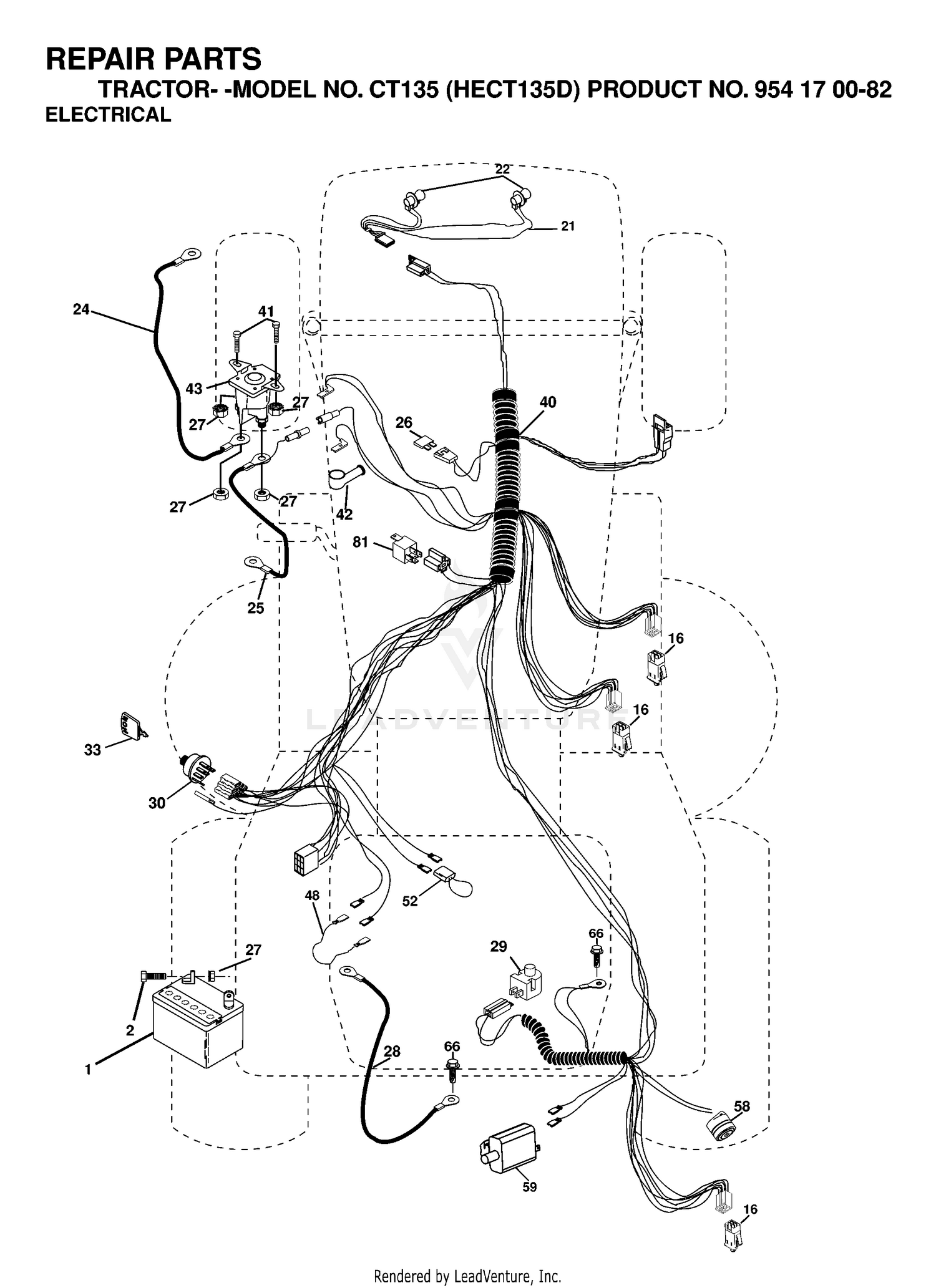

| Ref | Part Number | Description |
|---|
| 1 |
132-6203 |
CONTROL KIT Price: $3,452.34 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
132-6204 |
COIL KIT Price: $736.78 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
136-4397 |
CHARGE RELIEF KIT Price: $86.77 |
| 5 |
136-4399 |
SHAFT Price: $425.69 |
| 6 |
75-0460 |
BEARING-BALL Price: $175.71 |
| 7 |
125-5280 |
RING-RETAINING Price: $11.40 |
| 8 |
131-8616 |
RING-RETAINING Price: $16.97 |
| 9 |
127-6214 |
SEAL-LIP Price: $131.03 |
| 10 |
136-4398 |
VALVE PLATE Price: $462.40 |
| 11 |
132-6206 |
O-RING Price: $7.73 |
| 12 |
125-5288 |
O-RING Price: $34.23 |
| 13 |
131-7388 |
O-RING Price: Call Us |
| 14 |
125-5274 |
SCREW Price: $8.89 |
| 15 |
125-5302 |
PLUG Price: $25.48 |
| 16 |
125-5273 |
NUT-SEAL Price: $21.58 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
125-5272 |
SCREW Price: $9.02 |
| 18 |
125-5283 |
GASKET-CONTROL Price: $41.13 |
| 19 |
125-5269 |
RING-LOCKING Price: $4.61 |
| 20 |
125-5266 |
SCREEN Price: $35.26 |
| 21 |
125-5282 |
SCREW Price: $9.84 |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 22 |
125-5270 |
SCREW Price: $9.02 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
125-5298 |
O-RING Price: $1.68 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 24 |
92-1353 |
SHIM KIT Price: $36.78 |
| 25 |
125-5301 |
PLUG Price: $56.91 |
| 25 |
532165987 |
CABLE BATTERY Price: $22.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
75-0240 |
O-RING Price: $2.36 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 27 |
84-0560 |
O-RING Price: $4.73 |
| 28 |
532127725 |
CABLE GROUND Price: $4.18 |
| 28 |
69-3080 |
PLUG Price: $40.47 |
| 29 |
532160784 |
PLUNGER SWITCH (COLOR:OLIVE) Price: $17.99 |
| 29 |
69-3130 |
PLUG Price: $62.97 |
| 30 |
75-0170 |
PLUG-THREAD, STRAIGHT Price: $18.20 |
| 31 |
125-5270 |
SCREW Price: $9.02 |
| 32 |
110-6485 |
PIN-SLOTTED Price: $1.97 |
| 33 |
136-4393 |
VALVE-RELIEF, HIGH PRESSURE Price: $709.20 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
136-4392 |
VALVE-RELIEF, HIGH PRESSURE Price: $709.20 |
| 35 |
132-6205 |
OVERHAUL SEAL KIT Price: $239.18 |
| 40 |
532179728 |
NEEDS DESCRIPTION Price: Call Us |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 58 |
532169420 |
KIT.BUZZER.CRD This part replaces 532169419. Price: $64.99 |
| 59 |
583100701 |
SWITCH.FBI.CRD This part replaces 532180379. Price: $11.99 |
| 66 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
