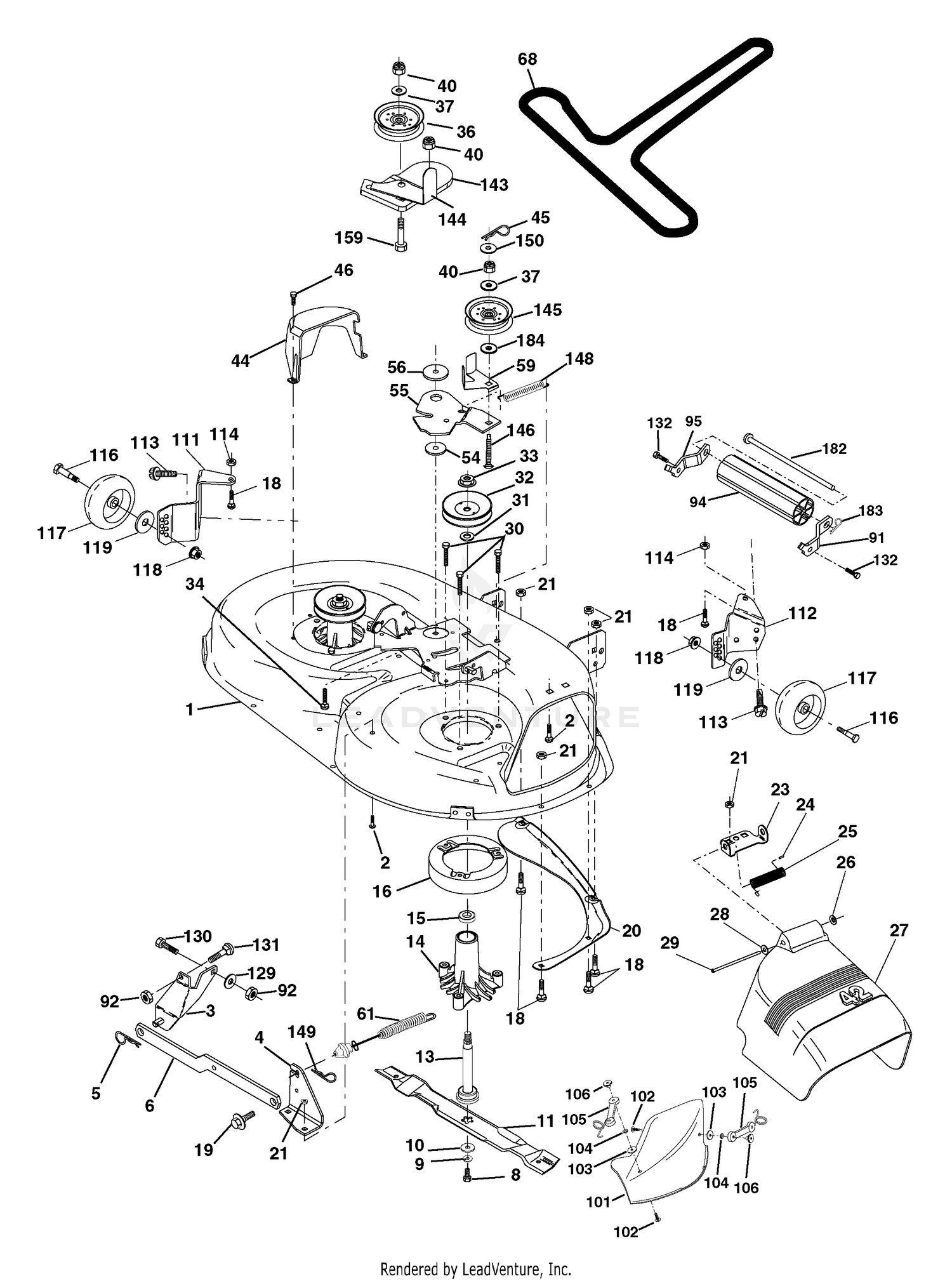

| Ref | Part Number | Description |
|---|
| 1 |
548102301 |
SERVICE DECK KIT 42" NON-TEX This part replaces 532176922. Price: $379.99 |
| 1 |
63-7900-03 |
RACK This part replaces 63-7900. Price: $144.55 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 4 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 4 |
532165460 |
BRACKET SWAY BAR 42" DECK Price: $11.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 5 |
94-9950 |
CONTROL - STEERING Price: $723.39 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532178024. Price: $9.99 |
| 6 |
94-3059 |
HYD TUBE ASM Price: $104.59 |
| 7 |
94-3061 |
HYD TUBE ASM Price: $73.75 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 8 |
94-3090 |
HARNESS - WIRE, MAIN Price: $1,957.31 |
| 9 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
237-22 |
O-RING Price: $2.43 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 12 |
237-42 |
O-RING Price: $2.78 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 13 |
94-3060 |
HYD TUBE ASM Price: $108.71 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 14 |
94-3062 |
HYD TUBE ASM Price: $81.18 |
| 15 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 16 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 17 |
94-9951 |
COLUMN-STEERING Price: $366.29 |
| 18 |
21-9260 |
COVER-DUST Price: $8.19 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 19 |
98-1471 |
WHEEL-STEERING This part replaces 94-3500. Price: $145.99 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 20 |
88-3870 |
COVER-WHEEL Price: $13.83 |
| 21 |
107-2562 |
NUT-HEX This part replaces 94-9952. Price: $19.95 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
105-3306 |
SPEEDOMETER KIT, RM6000 SERIES This part replaces 93-4213. Price: $424.47 |
| 22 |
532134753 |
STIFFENER BRACKET Price: $5.99 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532177563. Price: $4.99 |
| 23 |
93-1263 |
DECAL-TOWER Price: $46.56 |
| 23 |
93-7554 |
DISCONTINUED Price: Call Us |
| 23 |
94-4573 |
DISCONTINUED Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
93-7998-03 |
PLATE-INSTRUMENT This part replaces 93-7998. Price: $40.21 |
| 25 |
218-536 |
WASHER-LOCK Price: $1.09 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 26 |
3219-14 |
NUT-HEX Price: $0.25 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK This part replaces 532171859. Price: $34.99 |
| 28 |
218-533 |
LENS Price: $17.62 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
93-7480 |
LED-MINIATURE Price: $78.50 |
| 30 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 31 |
87-6620 |
SCREW Price: $1.29 |
| 32 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
233-17 |
KNOB Price: $10.58 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
218-535 |
NUT-HEX Price: $0.34 |
| 34 |
87211064 |
Bolt Price: Call Us |
| 35 |
33103-025 |
SCREW-HHF Price: $0.54 |
| 36 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 36 |
597025001 |
CLG This part replaces 532173438. Price: $22.99 |
| 37 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 39 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 40 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 41 |
322-7 |
SCREW-HH Price: $0.89 |
| 42 |
56-7972 |
CLAMP-TUBE Price: $13.55 |
| 43 |
94-1447 |
STEERING RETURN TUBE ASM Price: $79.79 |
| 44 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK Price: $29.99 |
| 45 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 46 |
340-70 |
NUT-LOCK Price: $2.10 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
92-7495 |
STEERING TUBE ASM Price: $148.27 |
| 48 |
340-117 |
CAP Price: $10.30 |
| 49 |
92-7622 |
DISCONTINUED Price: Call Us |
| 50 |
92-7494 |
REAR STEARING TUBE ASM Price: $150.03 |
| 51 |
92-7606-03 |
BRACKET-BULKHEAD This part replaces 92-7606. Price: $13.64 |
| 52 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 53 |
322-6 |
SCREW-HH Price: $0.45 |
| 54 |
532178515 |
WASHER Price: $5.99 |
| 54 |
75-1490 |
ROD-BRAKE, PARKING Price: $50.23 |
| 55 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 55 |
531166601 |
SERVICE KIT ARM ARM IDLER 42" This part replaces 532155046. Price: $14.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532173442. Price: $4.99 |
| 61 |
532174882 |
SPRING EXT ELEC CLUTCH Price: $14.99 |
| 68 |
532174883 |
V-BELT PRIMARY 42" Price: $39.99 |
| 91 |
531151201 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532180532. Price: $4.99 |
| 92 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531150601 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532180533. Price: $4.99 |
| 101 |
532136420 |
COVER MULCH 42" Price: $13.99 |
| 102 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 103 |
819061216 |
WASHER Price: $3.99 |
| 104 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 105 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 106 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 111 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532181392. Price: $32.99 |
| 112 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532181393. Price: $32.99 |
| 113 |
817060510 |
Screw 5/16-18 x 5/8 Tap R Price: $2.99 |
| 114 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
532165746 |
WHEEL.GAUGE.STANDARD Price: $12.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 129 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 130 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 131 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 132 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 143 |
529844301 |
SERVICE KIT BRACKET This part replaces 532157109. Price: $7.99 |
| 144 |
532173441 |
KEEPER BELT 42" CLUTCH Price: $6.99 |
| 145 |
532173437 |
PULLEY.IDLER.FLAT.PLATED Price: $24.99 |
| 146 |
532173443 |
BOLT CARRIAGE IDLER Price: $4.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $4.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 159 |
596987501 |
Bolts This part replaces 872140614. Price: $3.99 |
| 182 |
532179126 |
ROD ROLLER NOSE STANDARD Price: $7.99 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 184 |
596134901 |
GSPH This part replaces 819131410. Price: $2.99 |
