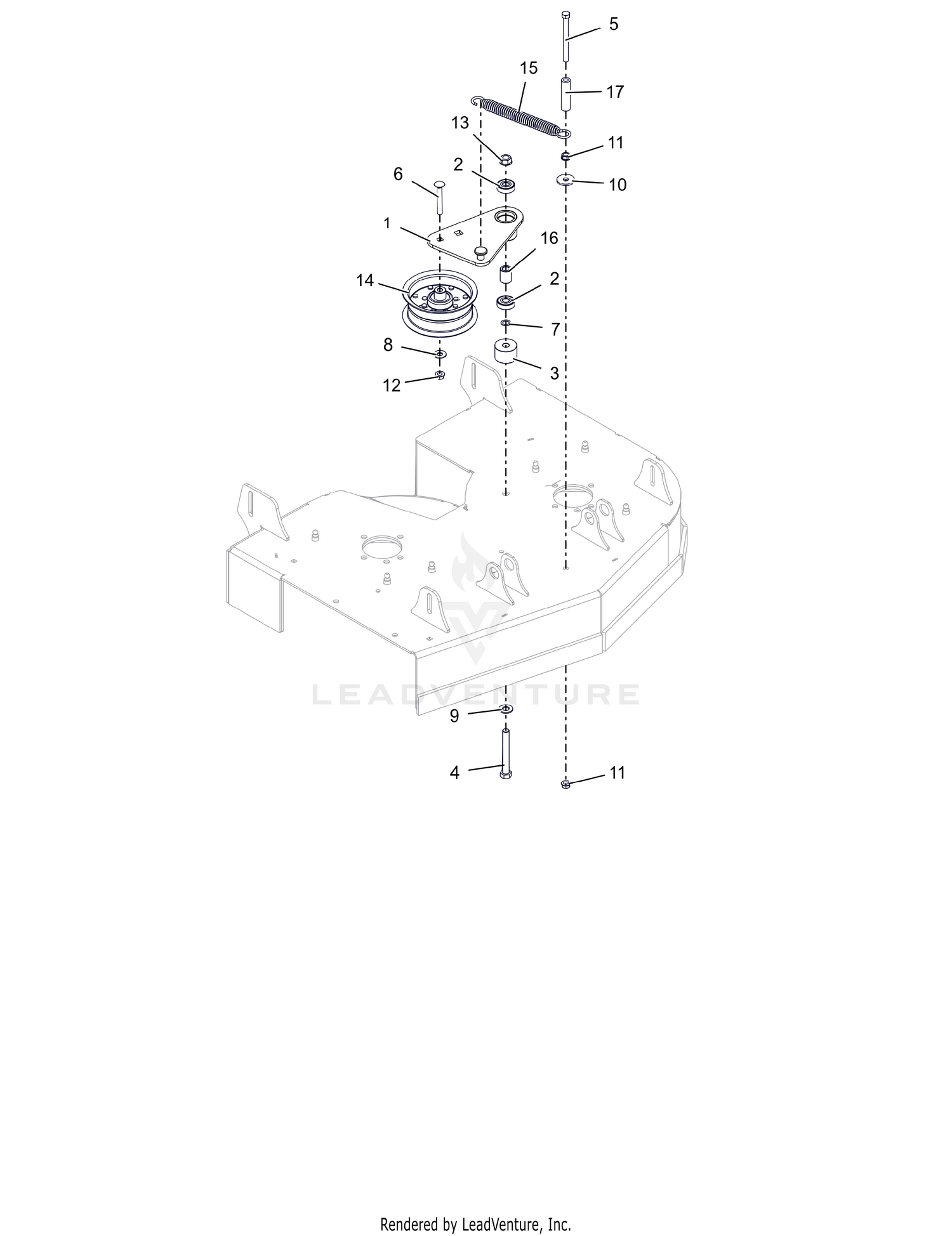

| Ref | Part Number | Description |
|---|
| 1 |
30303000 |
WLDMT, 32" DECK IDLER ARM Price: $50.95 |
| 2 |
05408000 |
BRG-BALL .500X1.38X.437 Price: $5.95 |
| 3 |
05501513 |
SPCR, DECK IDLER ARM Price: Call Us |
| 4 |
05901734 |
BLT, HEX .50-13X4.00 G5 ZCC Price: $3.45 |
| 5 |
05902024 |
BLT, HEX .38-16X4.25 G5 ZCC Price: $4.45 |
| 6 |
06200316 |
BLT, RHSN .38-16X2.75 G5 ZCC Price: $3.95 |
| 7 |
06400015 |
WASHER, .500X.750X.020 THRUST Price: $0.95 |
| 8 |
06401008 |
WSHR,FLT .438X1.00X.083 ZCC Price: $1.45 |
| 9 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC Price: $0.95 |
| 10 |
06401121 |
WSHR,FLT .406X1.375X.135 ZCC Price: $5.45 |
| 11 |
06500735 |
NUT, SPNLK-FLG .38-16 G5 ZCC Price: $1.45 |
| 12 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 13 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 14 |
07300532 |
PULLEY, FLAT 5.00X2.36X.375 Price: $67.95 |
| 15 |
08300728 |
SPRING- EXTENSION Price: $24.95 |
| 16 |
09357700 |
SPACER .510 X .867 X 1.1485 Price: $4.45 |
