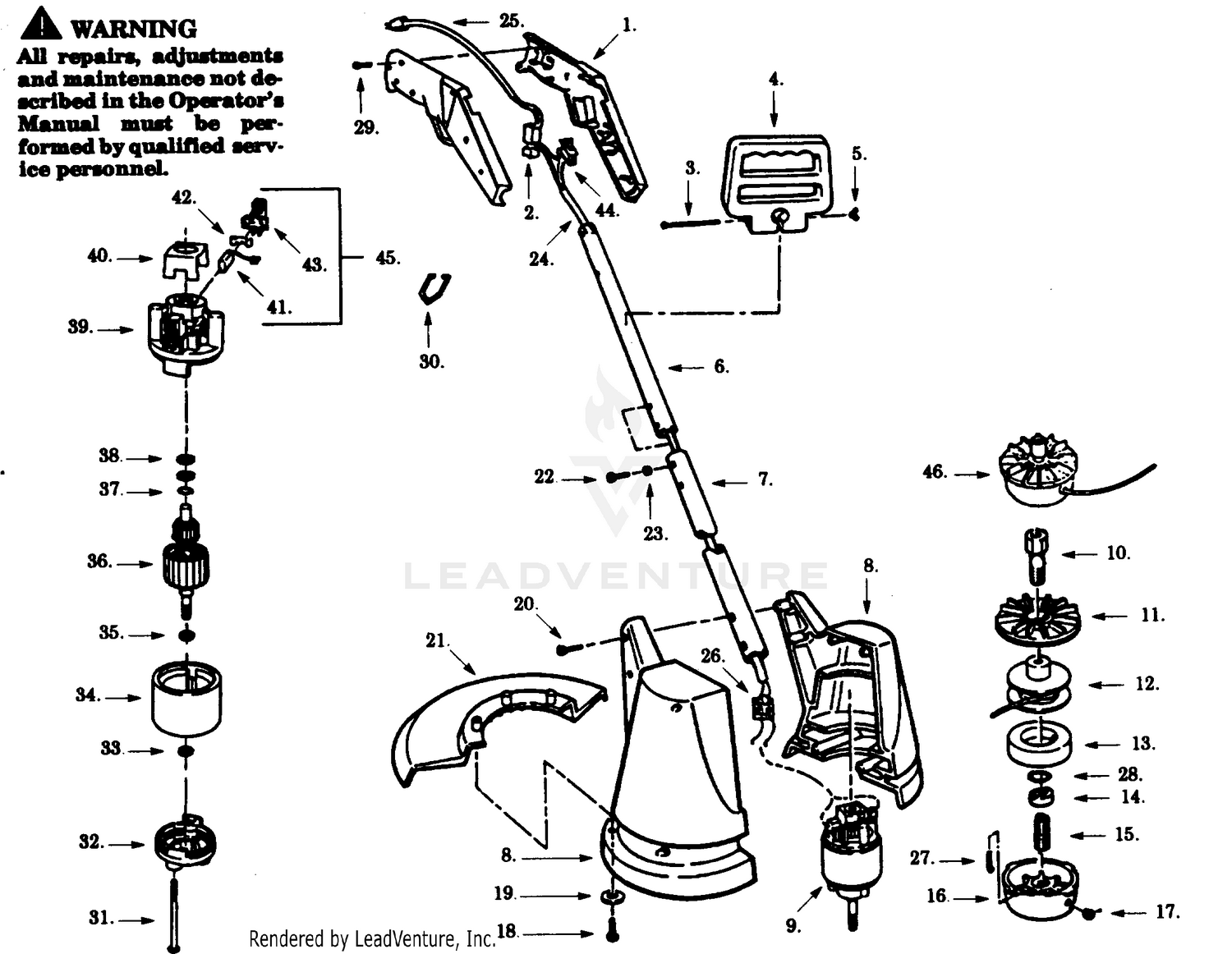

TRIMMER/BRUSHCUTTER ASSEMBLY
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-5701-01 | HITCH-EXTENDED Price: $319.97 |
| 1 | 534356704 | R.H./L.H. Handle Price: $6.99 |
| 2 | 125-5707-01 | WEIGHT Price: $106.04 |
| 2 | 534193001 | Trigger Switch Price: $3.33 |
| 3 | 323-14 | SCREW-HH Price: $1.34 |
| 3 | 534218100 | Bolt Price: $1.99 |
| 4 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 4 | 534282705 | Side Handle Price: $3.33 |
| 5 | 534437000 | Wing Nut Price: $3.33 |
| 6 | 534222502 | Upper Handle Tube Price: $5.99 |
| 7 | 534223200 | Lower Handle Tube Price: $3.33 |
| 8 | 534271614 | R.H./L.H. Housing Price: $17.99 |
| 9 | 534225001 | Motor Price: $3.33 |
| 10 | 534223325 | Drive Adapter Price: $5.99 |
| 11 | 534157305 | Rear Plate Price: $9.99 |
| 12 | 534159705 | Spool & Line This part replaces 534159715. Price: $4.80 |
| 13 | 534158600 | Foam Pad Price: $3.33 |
| 14 | 534156205 | Drive Adapter Nut Price: $3.33 |
| 15 | 534157401 | Spring Price: $0.99 |
| 16 | 534159805 | Hub Price: $6.24 |
| 17 | 534157600 | Eyelet Price: $1.99 |
| 18 | 534193800 | Screw Price: $3.33 |
| 19 | 534653000 | Washer Price: $0.99 |
| 20 | 534222400 | Screw Price: $1.99 |
| 21 | 534379655 | Line Cutter Guard Price: $8.99 |
| 22 | 534970001 | Screw Price: $3.33 |
| 23 | 534713000 | Washer Price: $0.99 |
| 24 | 534325205 | Harness Price: Call Us |
| 25 | 534234500 | Power Cord Price: $3.33 |
| 26 | 534327002 | P.C. Bridge Kit Price: $3.33 |
| 27 | 534270300 | Cotter Pin Price: $3.33 |
| 28 | 534316201 | O-Ring Price: $1.99 |
| 29 | 534193700 | Screw Price: $1.99 |
| 30 | 534270100 | Hanger Price: $1.99 |
| 31 | 534228700 | Screw Price: $1.99 |
| 32 | 534207101 | Endbell Output Price: $3.33 |
| 33 | 534228903 | Washer Price: Call Us |
| 34 | 534227001 | Field Ass'y. Price: $24.99 |
| 35 | 534246700 | Retainer Ring Price: $0.99 |
| 36 | 534225101 | Armature Price: $3.33 |
| 37 | 534747002 | Retainer Ring Price: $1.99 |
| 38 | 534228800 | Washer Price: $1.99 |
| 39 | 534227500 | Endbell (Brush) Price: $3.33 |
| 40 | 534226000 | Insulator Price: $3.33 |
| 41 | 534227800 | Brush Price: $3.16 |
| 42 | 534228000 | Spring Price: $1.99 |
| 43 | 534227700 | Brush Holder Price: $3.33 |
| 44 | 534332500 | Power Switch Price: $3.33 |
| 45 | 534450400 | Brush Kit (Incl. 41,42,43) Price: $12.32 |
| 46 | 534157025 | Cutting Head Ass'y. Price: $3.33 |
