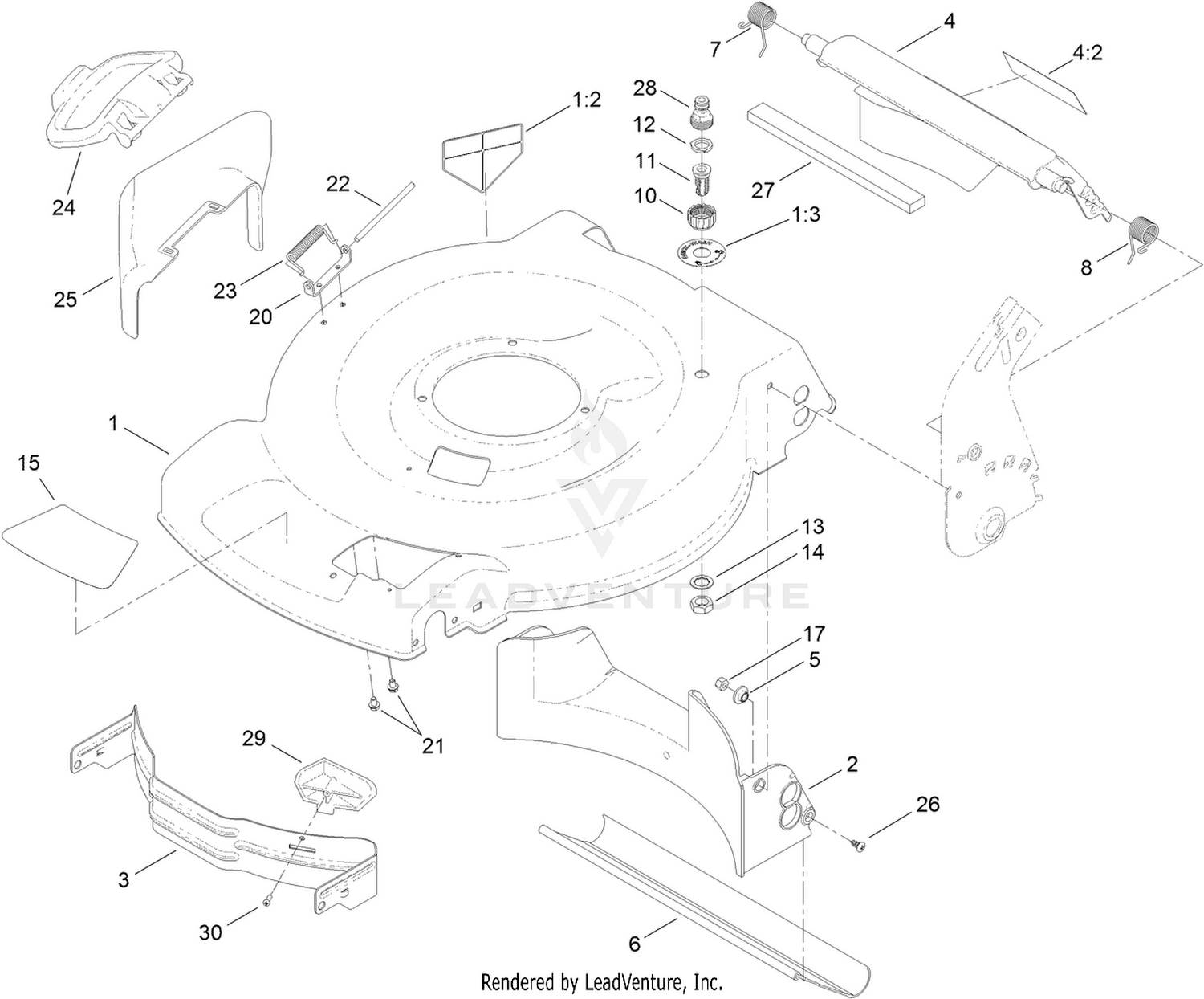

| Ref | Part Number | Description |
|---|
| 1 |
120-3326 |
HOUSING ASM Price: $135.64 |
| 2 |
120-5218 |
BAFFLE-REAR Price: $18.80 |
| 3 |
115-4667-01 |
BAFFLE-FRONT Price: $16.29 |
| 4 |
117-4199 |
REAR DEFLECTOR ASM Price: $25.37 |
| 5 |
117-5991 |
WASHER-STEPPED, BAFFLE Price: $0.92 |
| 6 |
115-8420 |
SHIELD-TRAILING Price: $21.57 |
| 7 |
114-7924 |
SPRING-TORSION Price: $2.22 |
| 8 |
115-2859 |
SPRING-TORSION Price: $3.33 |
| 10 |
112-6401 |
COUPLING-HOSE, WASHOUT PORT Price: $1.61 |
| 11 |
112-6400 |
PORT-WASHOUT Price: $3.06 |
| 12 |
112-6438 |
WASHER-SEAL, WASHOUT PORT Price: $1.19 |
| 13 |
3254-5 |
WASHER-LOCK Price: $0.49 |
| 14 |
3218-6 |
NUT-JAM Price: $0.61 |
| 15 |
120-3323 |
DECAL-DECK Price: $6.65 |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
112-6416 |
BRACKET-COVER Price: $1.88 |
| 21 |
137-4795 |
SCREW This part replaces 99-8445. Price: $0.29 |
| 22 |
136-8672 |
PIN-HINGE, DEFLECTOR This part replaces 99-5291. Price: $1.99 |
| 23 |
99-5293 |
SPRING-TORSION Price: $9.99 |
| 24 |
115-8449 |
DEFLECTOR-SIDE Price: $6.22 |
| 25 |
115-8447 |
CHUTE-DISCHARGE, SIDE Price: $11.31 |
| 26 |
139-1692 |
SCREW-THD This part replaces 117-1092. Price: $0.32 |
| 27 |
117-5924 |
FOAM-SEAL Price: $1.63 |
| 28 |
112-6437 |
ADAPTER-CONNECT, QUICK Price: $7.85 |
| 29 |
115-4672 |
KICKER-FRONT Price: $7.27 |
