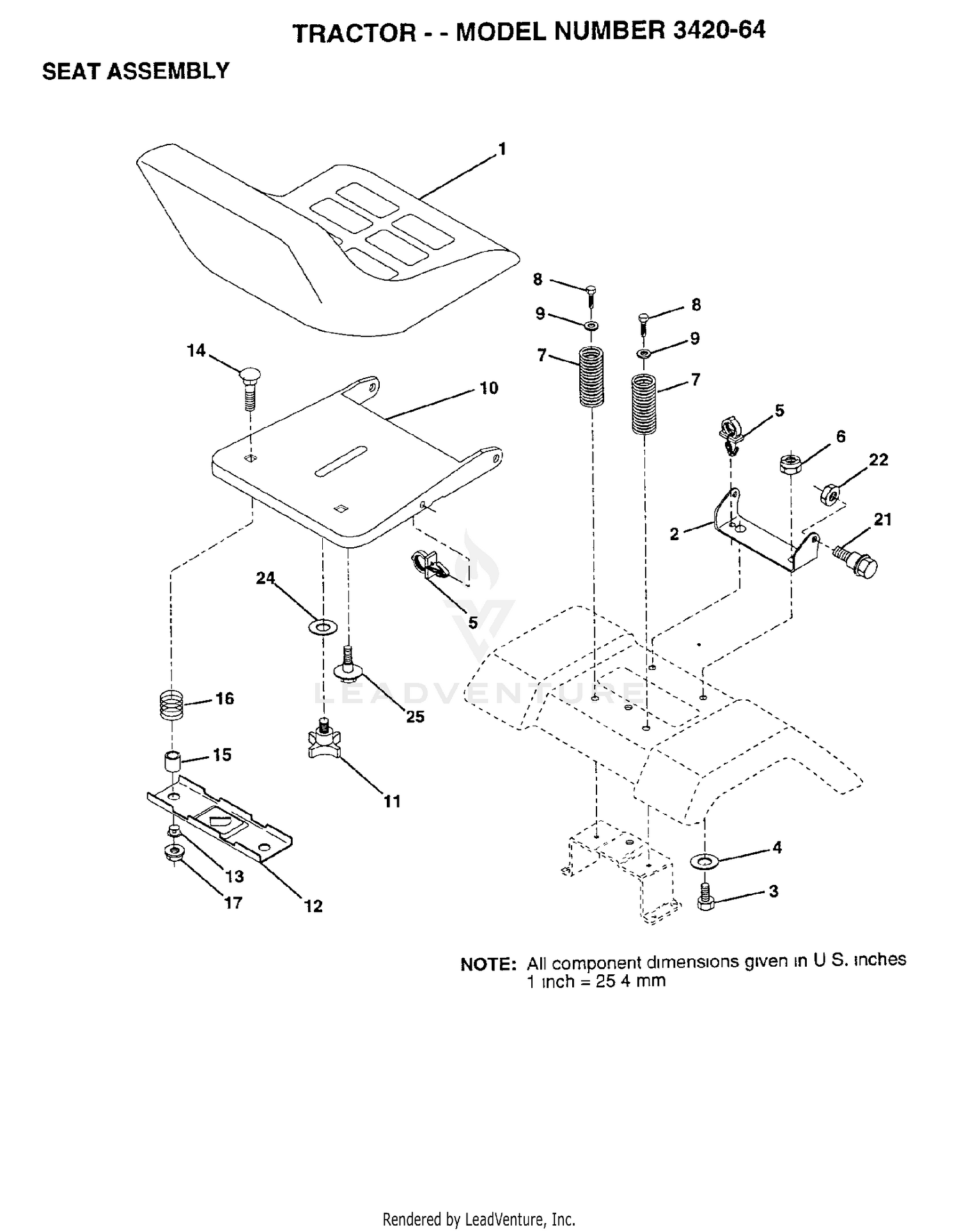

| Ref | Part Number | Description |
|---|
| 1 |
532127429 |
Seat V550 Blk/blk Std (AYP part number) Price: $129.99 |
| 2 |
532126656 |
Bracket, Pivot Seat (AYP part number) This part replaces 532105513. Price: $5.46 |
| 3 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $3.99 |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
532124294 |
Pan, Seat (AYP part number) Price: $14.69 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 14 |
872050411 |
BOLT CARRIAGE 1/4-20X1 3/8 Price: $2.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $3.99 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $1.99 |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 99 |
277078 |
Gasket-Governor Housing Price: Call Us |
| 100 |
271151 |
Rod-Throttle Price: Call Us |
| 101 |
4520803 |
Ball Joint Price: Call Us |
| 102 |
X-489-8 |
Rod Breaker Push Price: Call Us |
| 103 |
220174 |
Gasket, Cover Price: Call Us |
| 104 |
220074 |
Diaphram Price: Call Us |
| 105 |
232535 |
Cover Price: Call Us |
| 106 |
271547 |
Spring Governor Price: Call Us |
| 107 |
275691 |
Screw Shoulder Price: Call Us |
| 108 |
277073 |
Gasket Price: Call Us |
| 109 |
277080 |
Lever-Throttle Price: Call Us |
| 110 |
A-277905 |
Housing, Breather (Includes Valve) Price: Call Us |
| 111 |
277431 |
Washer, Tension Price: Call Us |
| 112 |
4815002 |
Breaker Price: Call Us |
| 113 |
4819401 |
Ball Price: Call Us |
| 114 |
4875510 |
Kit-Clamp Price: Call Us |
