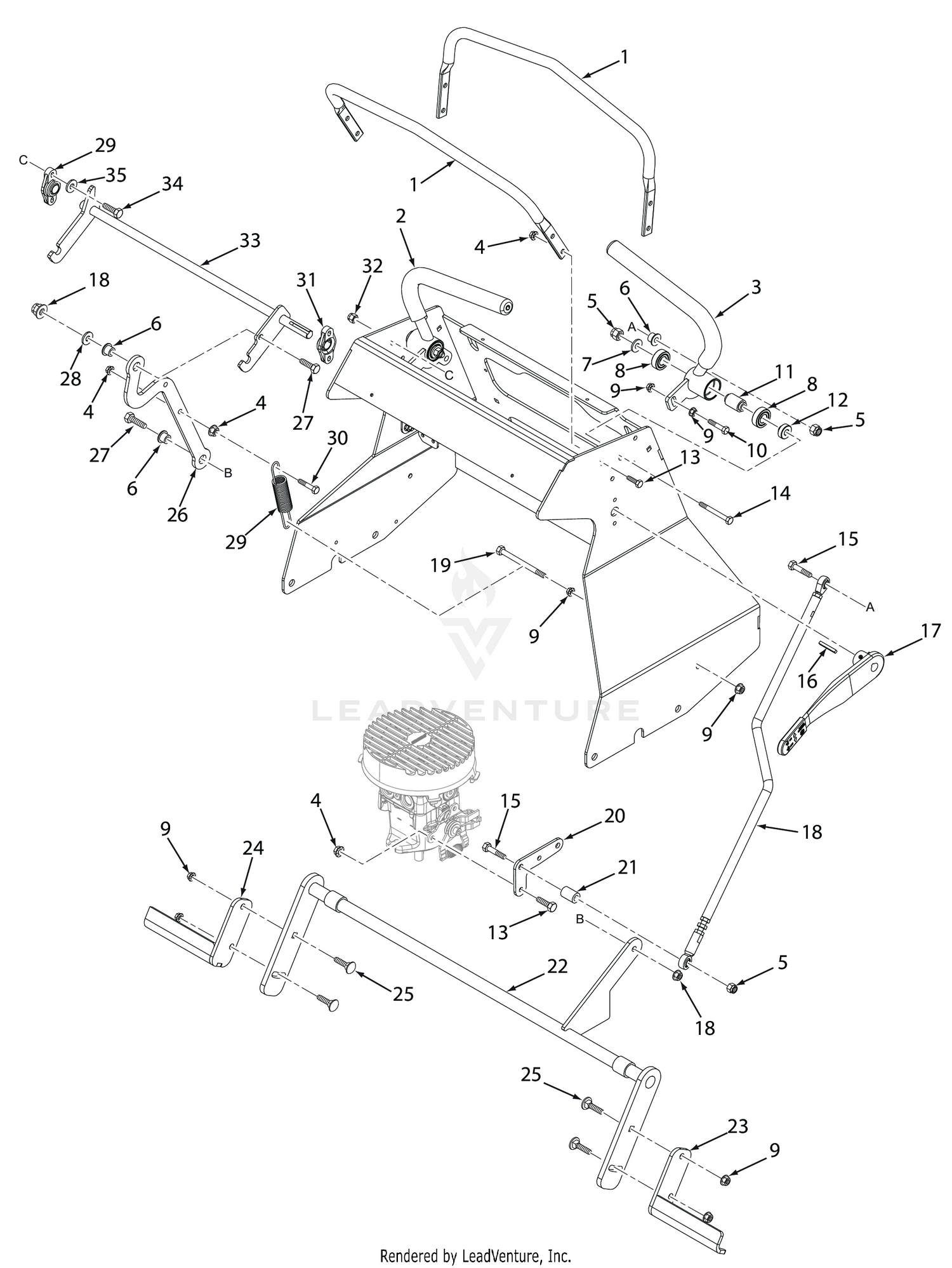

| Ref | Part Number | Description |
|---|
| 1 |
427189 |
Reference Bar Price: Call Us |
| 2 |
463498 |
RH Handle Bar Assy. Price: Call Us |
| 3 |
463497 |
LH Handle Bar Assy. Price: Call Us |
| 4 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 5 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 6 |
48100-30 |
BUSHING, BRONZE - .376 ID X .627 OD Price: Call Us |
| 7 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 8 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 9 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 10 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 11 |
43600 |
Spacer, Bearing Price: Call Us |
| 12 |
431024 |
Spacer, Controls Price: Call Us |
| 13 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 14 |
04001-62 |
Capscrew, Hex Head 3/8-16 x 3.25" Price: Call Us |
| 15 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 16 |
04063-05 |
KEY, 3/16 X 3/16 X 1-1/2 Price: Call Us |
| 17 |
463265 |
Lever Assembly, Brake, SVRII Price: Call Us |
| 18 |
487385 |
Link, Steering Control Price: Call Us |
| 19 |
04001-47 |
Bolt, 3/8-16 x 5.00" Hex Head Price: Call Us |
| 20 |
429148 |
Pump Linkage Brkt Price: Call Us |
| 21 |
43572 |
Yoke, Front Caster Wheel Price: Call Us |
| 22 |
453376 |
Bellcrank Weldment, Brake Price: Call Us |
| 23 |
453377 |
Brake Paddle Weldment, LH Price: Call Us |
| 24 |
453378 |
Brake Paddle Weldment, RH Price: Call Us |
| 25 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 26 |
429213 |
Link, Brake Engage Price: Call Us |
| 27 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 28 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 29 |
484038 |
Spring, Deck Lift Price: Call Us |
| 30 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 31 |
483504 |
Bearing Price: Call Us |
| 32 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 33 |
463392 |
LOCK WLMT, NEUTRAL W/ KEY This part replaces 453266. Price: Call Us |
| 34 |
04001-14 |
Capscrew, Hex Head 1/4-20 x 1" Price: Call Us |
