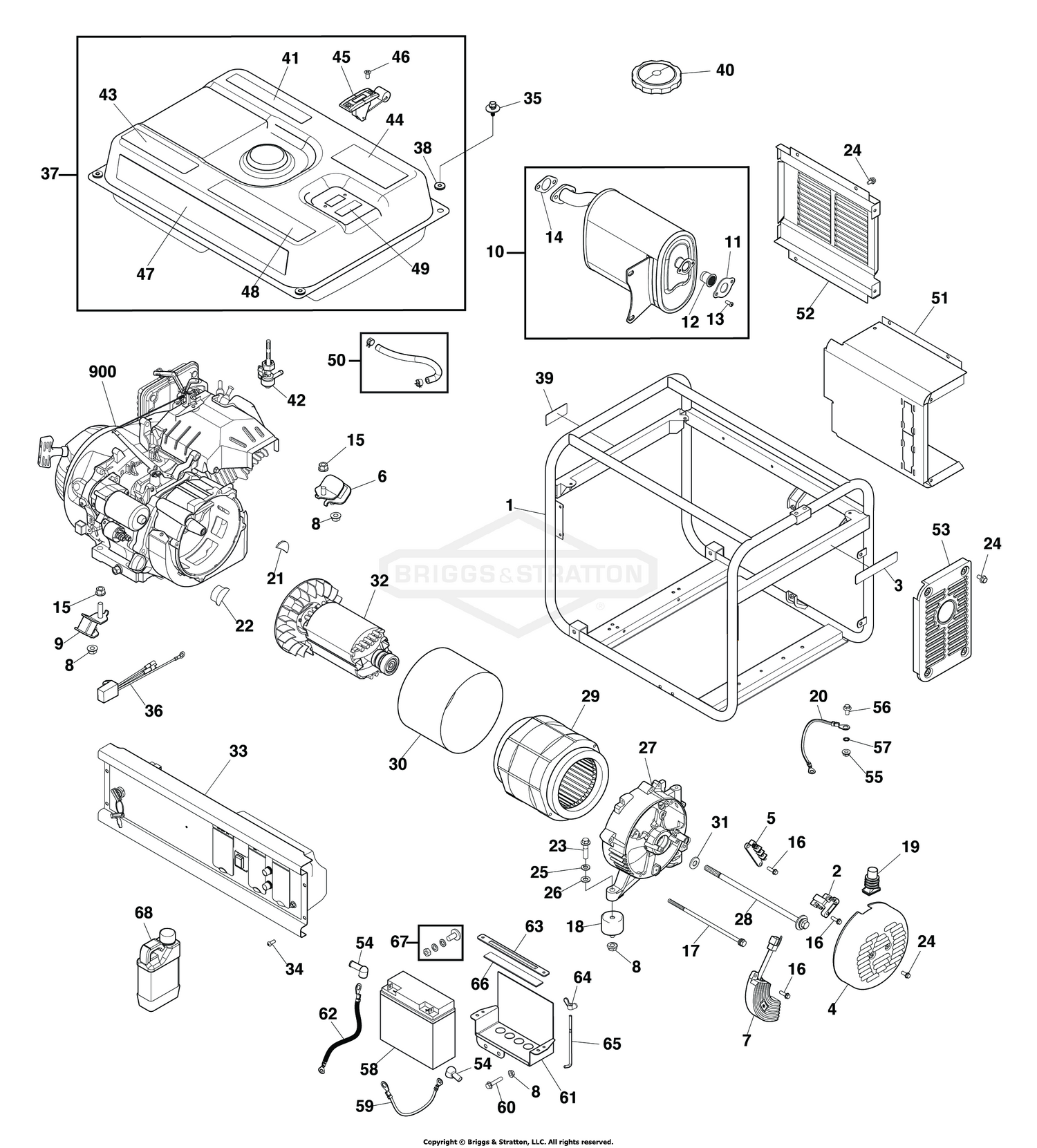

| Ref | Part Number | Description |
|---|
| 2 |
704915 |
BRUSH ASSY Price: $6.34 |
| 3 |
84002468 |
DECAL Price: $8.38 |
| 4 |
704838 |
END COVER Price: $27.77 |
| 5 |
705783 |
TERMINAL BLOCK Price: $3.52 |
| 6 |
704890 |
MOUNT-VIBRATION Price: $9.00 |
| 7 |
704913 |
VOLTAGE REGULATOR Price: $50.46 |
| 8 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 9 |
704891 |
MOUNT-VIBRATION Price: $9.95 |
| 10 |
704084 |
ASSY-MUFFLER Price: $109.99 |
| 11 |
704845 |
PLATE Price: $4.02 |
| 12 |
704846 |
SPARK ARRESTOR Price: $7.13 |
| 14 |
704853 |
GASKET-MUFFLER Price: $3.85 |
| 15 |
52859GS |
NUT, Lock Price: $1.95 |
| 16 |
207825GS |
BOLT-M5-6 x 16 Price: $3.81 |
| 17 |
707297 |
BOLT Price: $5.82 |
| 18 |
704081 |
MOUNT-VIBRATION Price: $7.30 |
| 19 |
207879GS |
BOOT, Rubber Price: $6.22 |
| 20 |
705633 |
WIRE Price: $5.08 |
| 21 |
705772 |
GUARD-RUBBER Price: $3.59 |
| 22 |
705771 |
GUARD-RUBBER Price: $3.91 |
| 23 |
590714 |
SCREW This part replaces 313524GS. Price: $3.36 |
| 24 |
207824GS |
BOLT, M5 - 6 x 12 Price: $3.73 |
| 25 |
2831983 |
WASHER, Lock, #8 Price: Call Us |
| 26 |
84001078 |
WASHER Price: $2.82 |
| 27 |
704836 |
CARRIER-BEARING Price: $73.71 |
| 28 |
707296 |
BOLT Price: $5.77 |
| 29 |
84003462 |
STATOR Price: $430.99 |
| 30 |
707295 |
BAND-STATOR Price: $36.85 |
| 31 |
207826GS |
WASHER, Senci Price: $2.96 |
| 32 |
84003463 |
ROTOR Price: $328.91 |
| 33 |
REF-80082662 |
Refer To: Control Panel Group Price: Call Us |
| 34 |
772229 |
SCREW Price: $3.17 |
| 35 |
84003614 |
BOLT Price: $1.36 |
| 36 |
84003180 |
MODULE-SNUBBER Price: $13.38 |
| 37 |
84003480 |
TANK-FUEL Price: $155.14 |
| 38 |
704861 |
MOUNT-VIBRATION Price: $4.07 |
| 39 |
772236 |
DECAL Price: $8.47 |
| 40 |
319587GS |
CAP-FUEL Price: $18.25 |
| 41 |
772237 |
DECAL Price: $8.15 |
| 42 |
209417GS |
VALVE, Fuel Price: $7.75 |
| 43 |
84001093 |
DECAL Price: $8.15 |
| 44 |
84001068 |
DECAL Price: $9.32 |
| 45 |
84007425 |
GAUGE-FUEL Price: $6.57 |
| 46 |
704866 |
SCREW Price: Call Us |
| 47 |
84003478 |
DECAL Price: $15.78 |
| 48 |
84003476 |
DECAL Price: $12.50 |
| 49 |
703264 |
DECAL Price: $15.53 |
| 51 |
704041 |
COVER-BACK Price: $50.87 |
| 52 |
705775 |
COVER-SIDE Price: $18.49 |
| 53 |
705776 |
COVER-FRONT Price: $19.60 |
| 54 |
704050 |
BOOT-CABLE Price: $4.44 |
| 55 |
52857GS |
NUT-M6 FLANGE Price: $3.06 |
| 56 |
590850 |
SCREW This part replaces 706152. Price: $3.02 |
| 57 |
26850GS |
WASHER, Ext. M6 - 1/4" Shakeproof Price: $2.60 |
| 58 |
316345GS |
BATTERY Price: $229.66 |
| 59 |
704024 |
WIRE Price: $6.73 |
| 60 |
84003626 |
BOLT-M8 x 40 Price: Call Us |
| 61 |
704070 |
TRAY-BATTERY Price: $33.16 |
| 62 |
704020 |
WIRE Price: $6.41 |
| 63 |
704019 |
BRACKET Price: $6.30 |
| 64 |
87680GS |
NUT, M6 - 1.0 Wing Price: $6.57 |
| 65 |
704083 |
J-BOLT Price: $5.66 |
| 66 |
704018 |
INSULATION Price: $116.59 |
| 67 |
315546GS |
KIT, Hardware, Battery Terminal Price: $8.05 |
| 68 |
100028 |
OIL-4 CYCLE30W 48OZ Price: $10.28 |
