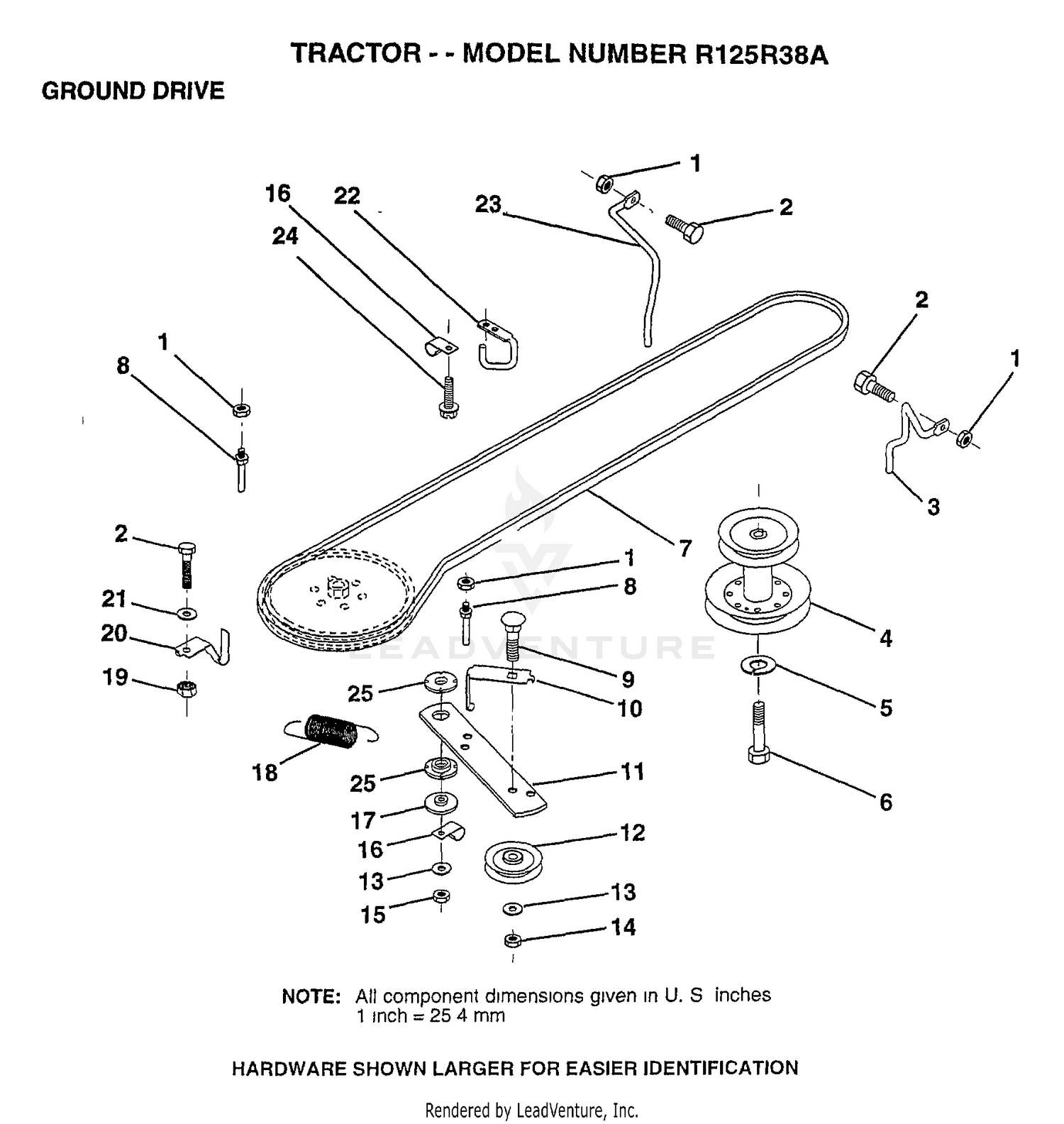

| Ref | Part Number | Description |
|---|
| 1 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 1 |
73680500 |
SUB= 73690500 Price: Call Us |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
74760512 |
BOLT Price: Call Us |
| 3 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 3 |
141341 |
KEEPER.BELT.FRT. Price: Call Us |
| 4 |
138029 |
PULLEY.ENGINE.LR Price: Call Us |
| 4 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 5 |
10040700 |
LOCKWASHER Price: Call Us |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 6 |
71170744 |
HEX BOLT Price: Call Us |
| 7 |
126520X |
V BELT Price: Call Us |
| 7 |
322-1 |
SCREW-HH Price: $0.22 |
| 8 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 9 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 9 |
72140612 |
BOLT Price: Call Us |
| 10 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 11 |
150926 |
ARM-IDLER.DR.GRND Price: Call Us |
| 11 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
105-3822 |
HYD CYLINDER ASM Price: $533.45 |
| 12 |
123674 |
IDLER, FLAT Price: Call Us |
| 13 |
19131316 |
WASHER Price: Call Us |
| 13 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 14 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 14 |
73930600 |
LOCKNUT Price: Call Us |
| 15 |
5-1226 |
WASHER Price: $3.90 |
| 15 |
73800600 |
NUT Price: Call Us |
| 16 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 17 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 17 |
150932 |
SPACER Price: Call Us |
| 18 |
131459 |
SUB= 532131459 Price: Call Us |
| 18 |
136-8483 |
FRAME-PULL, RH This part replaces 104-2055. Price: $382.66 |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 19 |
73510500 |
NUT Price: Call Us |
| 20 |
139919 |
KEEPER.BELT.T/A Price: Call Us |
| 20 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 21 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 21 |
19111016 |
WASHER Price: Call Us |
| 22 |
123404 |
KEEPER, FRAME GROUND DRIVE BELT Price: Call Us |
| 22 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 23 |
146792 |
KEEPER.BELT.LH.FR Price: Call Us |
| 23 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 24 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 24 |
17720408 |
SCREW Price: Call Us |
| 25 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 26 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
92-9767 |
HOSE Price: $69.61 |
| 29 |
105-3828 |
SPACER Price: $5.10 |
