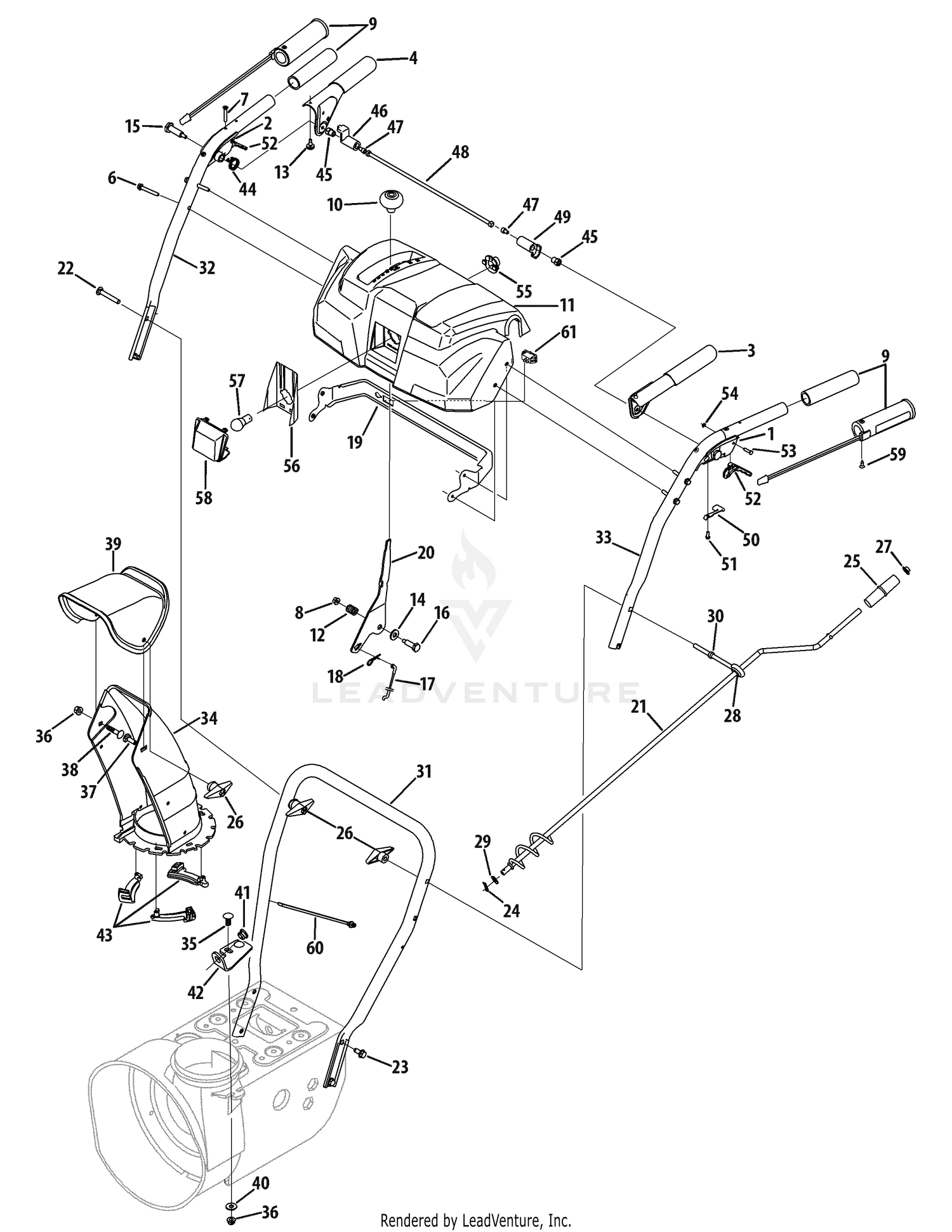

| Ref | Part Number | Description |
|---|
| 1 |
631-04133A |
Handle Assembly Lock LH Price: $13.42 |
| 2 |
631-04134B |
Handle Assembly Lock RH Price: $13.42 |
| 3 |
684-04105D |
HANDLE ASSEMBLY (LH) This part replaces 684-04105B. Price: $20.10 |
| 4 |
684-04106D |
HANDLE ASSEMBLY (RH) This part replaces 684-04106B. Price: $19.00 |
| 5 |
725-04216B |
Heated Grips Harness (Not Shown) This part replaces 725-04216A. Price: $66.71 |
| 6 |
710-04586 |
Screw, 1/4-20, 1.625 Price: $6.07 |
| 7 |
710-1233 |
Machine Screw, #10-24, 1.375 Price: $3.95 |
| 8 |
712-04064 |
Flange Lock Nut,, 1/4-20 Price: $3.64 |
| 9 |
720-0274 |
Grip Price: $9.99 |
| 9 |
725-1757 |
Heated Grip Price: $97.54 |
| 10 |
720-04039 |
Shift Knob Price: $9.09 |
| 11 |
731P05334C |
HANDLE PANEL (TROY-BILT) This part replaces 731-05334. Price: $63.24 |
| 11 |
931-04181A |
Handle Panel This part replaces 731-05332. Price: $51.97 |
| 12 |
732-0193 |
Spring, .39 x .60 x.88 Price: $4.11 |
| 13 |
735-0199A |
Rubber Bumper, .62 OD x .22 Price: $6.89 |
| 14 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 15 |
738-04348 |
Screw, Shoulder, .437 x 1.345 x 1/4-20 This part replaces 738-04122. Price: $3.14 |
| 16 |
738-04125 |
Shoulder Screw, .374 Dia x 1.05 Price: $4.08 |
| 17 |
946-04396A |
Speed Selector Cable This part replaces 746-04396. Price: $18.04 |
| 18 |
714-0145 |
Click Pin Price: $4.42 |
| 19 |
790-00248E-0637 |
HANDLE SUPPORT BRACKET This part replaces 790-00248A. Price: $21.49 |
| 20 |
790-00311C-0637 |
Shift Lever This part replaces 790-00311. Price: $24.22 |
| 21 |
684-04104-0637 |
CHUTE CRANK ASSEMBLY This part replaces 684-04104. Price: $54.78 |
| 22 |
710-0572 |
Carriage Bolt 5/16-18 x 2.5" This part replaces 710-0449. Price: $3.75 |
| 23 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 24 |
714-0104 |
Cotter Pin Price: $3.90 |
| 25 |
720-0201A |
Crank Knob, 1.0 Dia x 3.2 Price: $9.62 |
| 26 |
720-0284 |
Wing, Knob Price: $4.08 |
| 27 |
726-0100 |
Push Cap, 3/8 Rod Price: $3.75 |
| 28 |
735-0234 |
Grommet, .44ID x .94 OD x .50 Price: $4.51 |
| 29 |
736-0185 |
Flat Washer, .375 x .738 x .063 Price: $3.43 |
| 30 |
747-04263 |
Chute Crank Eye Bolt Price: $8.31 |
| 31 |
749-04138A |
Lower Handle Price: $77.98 |
| 32 |
749-04190A |
Upper Handle RH This part replaces 749-04141A. Price: $34.62 |
| 33 |
749-04191A |
Upper Handle LH This part replaces 749-04142A. Price: $34.63 |
| 34 |
631-04131B |
Lower Chute Price: $33.35 |
| 35 |
710-0276 |
Carriage Bolt, 5/16-18, 1.0 Price: $3.68 |
| 36 |
712-04063 |
Flange Lock Nut, 5/16-18, Nylon Price: $3.56 |
| 37 |
710-04071 |
Carriage Bolt, 5/16-18, 1.0 Price: $3.94 |
| 38 |
710-0451 |
Carriage Bolt, 5/16-18, .750 Price: $3.53 |
| 39 |
731-04426C |
UPPER CHUTE (W/LBL MANUAL TILT) This part replaces 731-04426A. Price: $17.04 |
| 40 |
736-0159 |
Washer, .349 ID x .879 OD x .063 Price: $3.71 |
| 41 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 42 |
784-5647-0637 |
Chute Crank Bracket This part replaces 784-5647. Price: $12.51 |
| 43 |
731-04869A |
FLANGE KEEPER CHUTE This part replaces 731-04869. Price: $3.85 |
| 44 |
732-04238B |
Torsion Spring, 0.8156 x .3038 This part replaces 732-04238. Price: $4.66 |
| 45 |
712-04081A |
Shoulder Nut Price: $6.49 |
| 46 |
731-04894D |
Plate, Lock This part replaces 731-04894C. Price: $4.61 |
| 47 |
710-04354 |
Cap Screw, 1/4-20 x .375 Price: $3.38 |
| 48 |
753-04882C |
Pivot Rod This part replaces 711-04287. Price: $37.28 |
| 49 |
731-04896C |
CLUTCH LOCK CAM This part replaces 731-04896B. Price: $3.56 |
| 50 |
732-04219C |
Clutch Lock Spring This part replaces 732-04219A. Price: $3.70 |
| 51 |
710-04326 |
Screw, #8-16 x .50 Price: $3.37 |
| 52 |
731-04954 |
Steering Triggers Price: $5.18 |
| 53 |
738-04126 |
Pin Price: $3.43 |
| 54 |
716-04036 |
E-Ring Price: $5.34 |
| 55 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 56 |
777X41805 |
Lens Reflector Label Price: $8.16 |
| 57 |
925-04213 |
Lamp This part replaces 725-04213. Price: $4.30 |
| 58 |
731-05319 |
Lens Reflector Label Price: $12.25 |
| 59 |
710-0837 |
AB Screw Price: $3.85 |
| 60 |
726-0470 |
Cable Tie Price: $4.20 |
| 61 |
725-04393 |
Heated Grip Switch Price: $14.90 |
