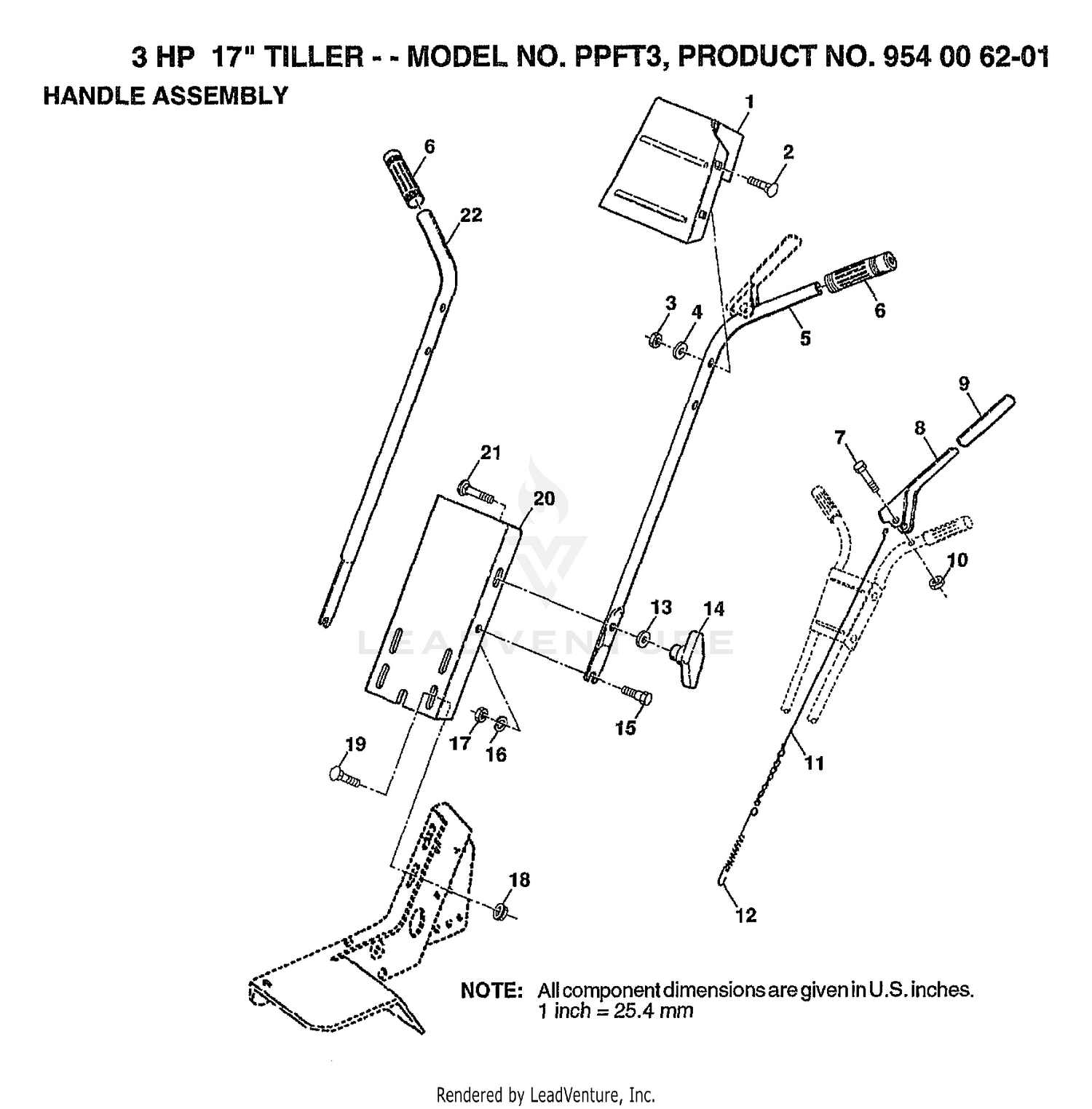

3HP 17" TILLER-HANDLE

3HP 17" TILLER-HANDLE

Parts (24)

RefPart NumberDescription
1 532125355 SUB= 131268X421 Price: Call Us
2 872140512 BOLT, CARRIAGE Price: $1.99
3 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69
4 734116301 WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02
5 532002621 SUB= 154127 Price: $3.33
6 532009266 SUB= 624A78 Price: $3.99
7 539976935 HCS.5/16-18X1 1/2.GR5 This part replaces 874760524. Price: $1.99
8 532003069 SUB= 3069J Price: $3.33
9 532008206 GRIP T This part replaces 532124797. Price: $3.99
10 107-7848 UPPER GASKET KIT Price: $323.93
10 532124949 SUB= 68478 Price: $3.99
11 532003067 SUB= 100382K Price: Call Us
12 532003070 SUB= 3070J Price: $3.33
13 734117201 WASHER This part replaces 819121414. Price: $1.99
14 532183724 KIT.KNOB.HANDLE.SERVICE This part replaces 532063688. Price: $6.99
15 532000471 SUB= 471J Price: $7.99
16 810040500 WASHER, LOCK Price: $2.99
17 873220500 NUT, HEX Price: $3.99
18 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 898000129. Price: $2.69
19 539990316 RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49
20 532125356 SUB= 2626J421 Price: Call Us
21 872110510 BOLT Price: $3.99
22 532002622 SUB= 159764 Price: $3.33
532132834 DECAL Price: $3.33 532132834
