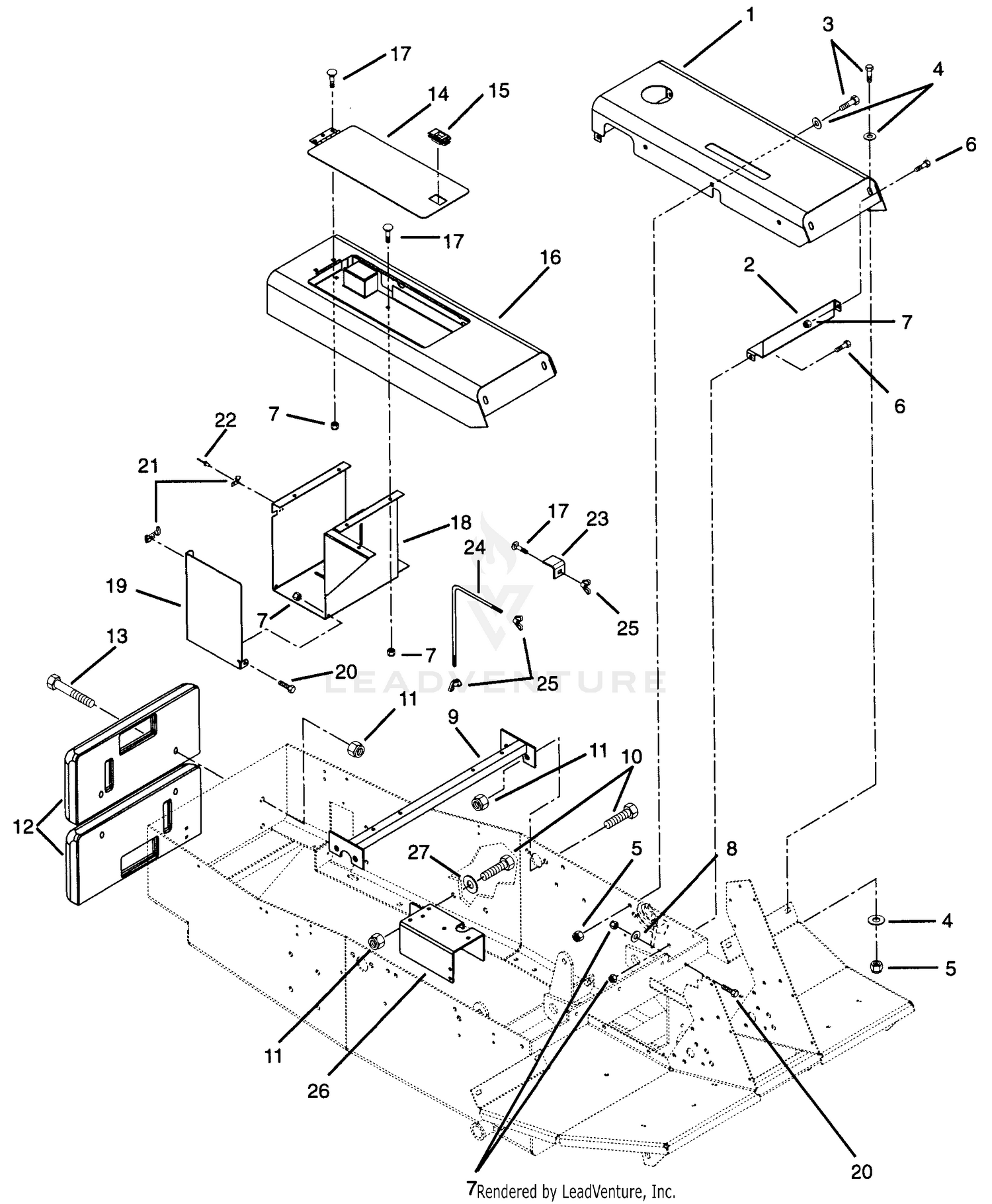

| Ref | Part Number | Description |
|---|
| 1 |
09062500 |
WLDMT, L.H. FENDER Price: $69.95 |
| 2 |
09055100 |
BRKT., FUEL TANK FRONT SUPPORT Price: $4.95 |
| 3 |
05932600 |
BLT-HEX .38-16X.875 GR5 YWZC This part replaces 180121. Price: $2.45 |
| 4 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06429300. Price: $0.95 |
| 5 |
06500831 |
NUT-NYL .38-16 G5 ZCC This part replaces 456004. Price: $2.95 |
| 6 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 180020. Price: $0.95 |
| 7 |
06500832 |
NUT-NYL .25-20 G5 ZCC This part replaces 419454. Price: $4.45 |
| 8 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 050365. Price: $0.45 |
| 9 |
09061100 |
WLDMT, SEAT CROSS SUPPORT Price: $11.95 |
| 10 |
05901715 |
BLT, HEX .50-13X1.00 G5 ZCC This part replaces 180173. Price: $2.45 |
| 11 |
06500830 |
NUT,NYL .50-13 G5 ZCC This part replaces 435507. Price: $2.45 |
| 12 |
00172000 |
WEIGHT, CAST IRON This part replaces 09054700. Price: $234.95 |
| 13 |
05901939 |
BLT, HEX .50-13X1.75 G5 ZCC This part replaces 180179. Price: $3.95 |
| 14 |
09054800 |
WLDM'T, TOOL BOX LID Price: $29.25 |
| 15 |
01510400 |
LATCH BODY Price: $18.45 |
| 16 |
09053600 |
WLDMT, FENDER R.H. Price: Call Us |
| 17 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC This part replaces 120518. Price: $0.95 |
| 18 |
09055200 |
PANEL, BATTERY HOLDER Price: $53.70 |
| 19 |
09055300 |
COVER, BATTERY BOX Price: $4.95 |
| 20 |
05901639 |
BLT,HEX .25-20X1.00 G5 ZCC This part replaces 180022. Price: $1.45 |
| 21 |
08704700 |
LATCH,FLEXIBLE This part replaces 035294. Price: $22.95 |
| 22 |
06807300 |
RVT-POP .125X.232 This part replaces 011884. Price: $0.70 |
| 23 |
09057800 |
BRKT, BATTERY HOLD DOWN Price: $3.00 |
| 24 |
09058100 |
ROD, BATTERY HOLD DOWN Price: $27.80 |
| 25 |
06500805 |
NUT, LK-WING .25-20 ZCC This part replaces 010413. Price: $4.45 |
| 26 |
09061800 |
HARNESS BRACKET Price: $17.50 |
| 00172000 |
WEIGHT, |
CAST IRON This part replaces 09054700. Price: $234.95 00172000 |
| 05901715 |
BLT, |
HEX .50-13X1.00 G5 ZCC This part replaces 180173. Price: $2.45 05901715 |
| 06200307 |
BLT, |
RHSN .25-20X.750 G5 ZCC This part replaces 120518. Price: $0.95 06200307 |
| 06500805 |
NUT, |
LK-WING .25-20 ZCC This part replaces 010413. Price: $4.45 06500805 |
