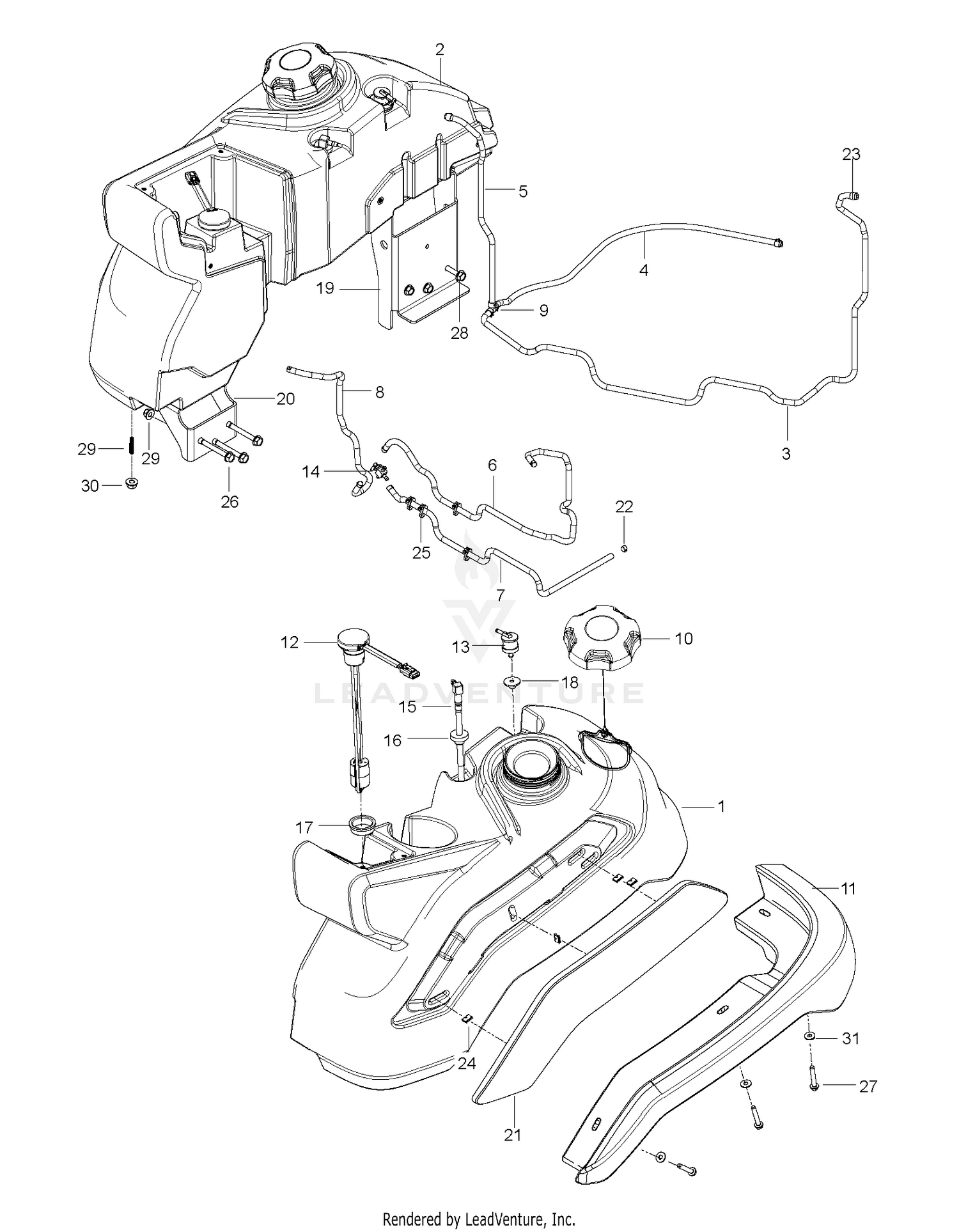

| Ref | Part Number | Description |
|---|
| 1 |
529986505 |
TANK UNIT ASY LH Z500 MUDGUARD This part replaces 582483105. Price: $649.99 |
| 2 |
529986105 |
FUEL TANK ASSEMBLY RH Z500 This part replaces 582481705. Price: $599.99 |
| 3 |
587044541 |
HOSE 3/16" VAPOR LINE 41" LENG Price: $5.99 |
| 4 |
587044517 |
HOSE.3/16".VAPOR.LINE.17"LGTH Price: $7.99 |
| 5 |
587044517 |
HOSE.3/16".VAPOR.LINE.17"LGTH Price: $7.99 |
| 6 |
587044841 |
HOSE 1/4" LOW PERMEATION FUEL Price: $9.99 |
| 7 |
587044837 |
HOSE.1/4".LOW.PERM.FUEL.LN.37" Price: $12.99 |
| 8 |
587044824 |
HOSE.1/4".LOW.PERM.FUEL.LN.24" Price: $6.99 |
| 9 |
574206602 |
TEE, FUEL LINE 3/16" Price: $2.99 |
| 10 |
105-3741 |
SPRING-START Price: $3.78 |
| 10 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 11 |
582483301 |
GUARD.MUD.LH Price: $64.99 |
| 12 |
590638801 |
SENSOR.FUEL.LVL.FLOAT.V500 Price: $139.99 |
| 13 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 14 |
539102679 |
FUEL VALVE Price: $49.99 |
| 15 |
525865402 |
TUBE.ASM.FUEL.TANK.PICK-UP.LH Price: $11.99 |
| 16 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 17 |
590209101 |
GROMMET, FUEL SENSOR Price: $4.99 |
| 18 |
584648201 |
GROMMET.CHECK.FUEL Price: $3.99 |
| 19 |
582481502 |
BRACKET.FUEL.TANK.REAR.SUP.431 Price: $34.99 |
| 20 |
582481602 |
BRACKET.FUEL.TANK.REAR.SUP.431 Price: $19.99 |
| 20 |
98-9681 |
SPRING-GOVERNOR Price: $12.06 |
| 21 |
536147601 |
COVER.CONSOLE.LH.FUEL.TANK This part replaces 582483401. Price: $37.99 |
| 22 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 23 |
575436501 |
CLAMP, HOSE Price: $2.99 |
| 24 |
582482601 |
CLIP.U-TYPE Price: $3.99 |
| 25 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 26 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 27 |
590257301 |
SCREW.1/4-20X1.5IN.HEX.MACH Price: $2.99 |
| 28 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 817490516. Price: $2.99 |
| 29 |
582484201 |
SCREW.5/16-18X1.25"THREADED Price: $2.99 |
| 30 |
115-4502 |
FORK LEVER ASM Price: $551.34 |
| 30 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 40 |
98-9692 |
ROLLER Price: $11.45 |
| 45 |
108-2867 |
SPRING Price: $3.96 |
| 46 |
98-7580 |
BALL Price: $0.04 |
| 50 |
107-9083 |
LEVER-THRUST Price: $29.76 |
| 60 |
107-9084 |
LEVER-FORK Price: $101.37 |
| 70 |
107-9085 |
SHAFT-LEVER, FORK Price: $24.90 |
| 80 |
107-9086 |
SHAFT-LEVER, FORK Price: $24.90 |
| 90 |
98-9570 |
BEARING-MINIATURIZE Price: $13.60 |
| 100 |
115-4122 |
COVER-SHAFT, FORK LEVER Price: $6.97 |
| 110 |
98-9682 |
GASKET Price: $0.95 |
| 120 |
98-9350 |
BOLT Price: $0.98 |
| 130 |
98-9567 |
COLLAR Price: $3.78 |
| 525865403 |
TUBE.ASM.FUEL.TANK.PICK-UP.RH |
Price: $11.99 525865403 |
| 536147501 |
COVER.CONSOLE.RH.FUEL.TANK |
This part replaces 582482401. Price: $44.99 536147501 |
| 582482301 |
GUARD.MUD.RH |
Price: $69.99 582482301 |
