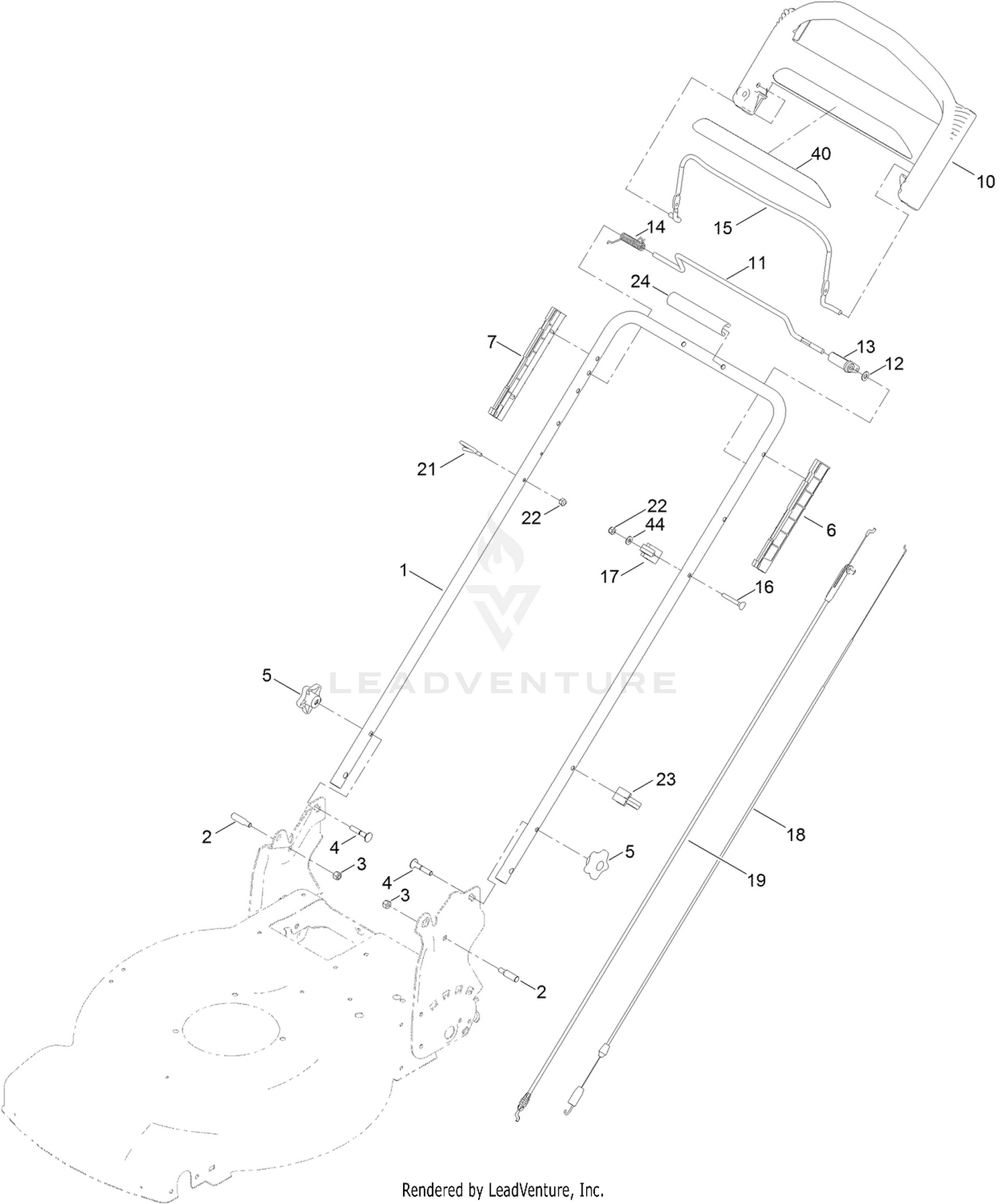

Handle Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131-9695-05 | HANDLE Price: $37.79 |
| 2 | 131-4591 | BOLT-SHOULDER Price: $1.17 |
| 3 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 4 | 131-9663 | SCREW-CARR Price: $0.66 |
| 5 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 6 | 105-6842 | GUIDE-LH Price: $5.65 |
| 7 | 105-6841 | GUIDE-RH Price: $5.65 |
| 10 | 104-8678 | HANDLE-CONTROL Price: $53.94 |
| 11 | 136-7150 | BAR-CONTROL, TRACTION Price: $10.75 |
| 12 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 13 | 99-1589 | LEVER-TRACTION Price: $4.81 |
| 14 | 136-7166 | SPRING-TORSION Price: $2.17 |
| 15 | 131-0880-03 | BAIL-BRAKE Price: $10.21 |
| 16 | 95-4453 | SCREW Price: $3.09 |
| 17 | 136-5864 | ANCHOR-CABLE Price: $1.93 |
| 18 | 115-8435 | CABLE-TRACTION Price: $22.47 |
| 19 | 115-8437 | CABLE-BRAKE Price: $23.13 |
| 21 | 86-9671 | GUIDE-ROPE Price: $3.28 |
| 22 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 23 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 24 | 131-4551 | COVER-HANDLE Price: $0.95 |
| 40 | 117-1019 | DECAL Price: $5.65 |
