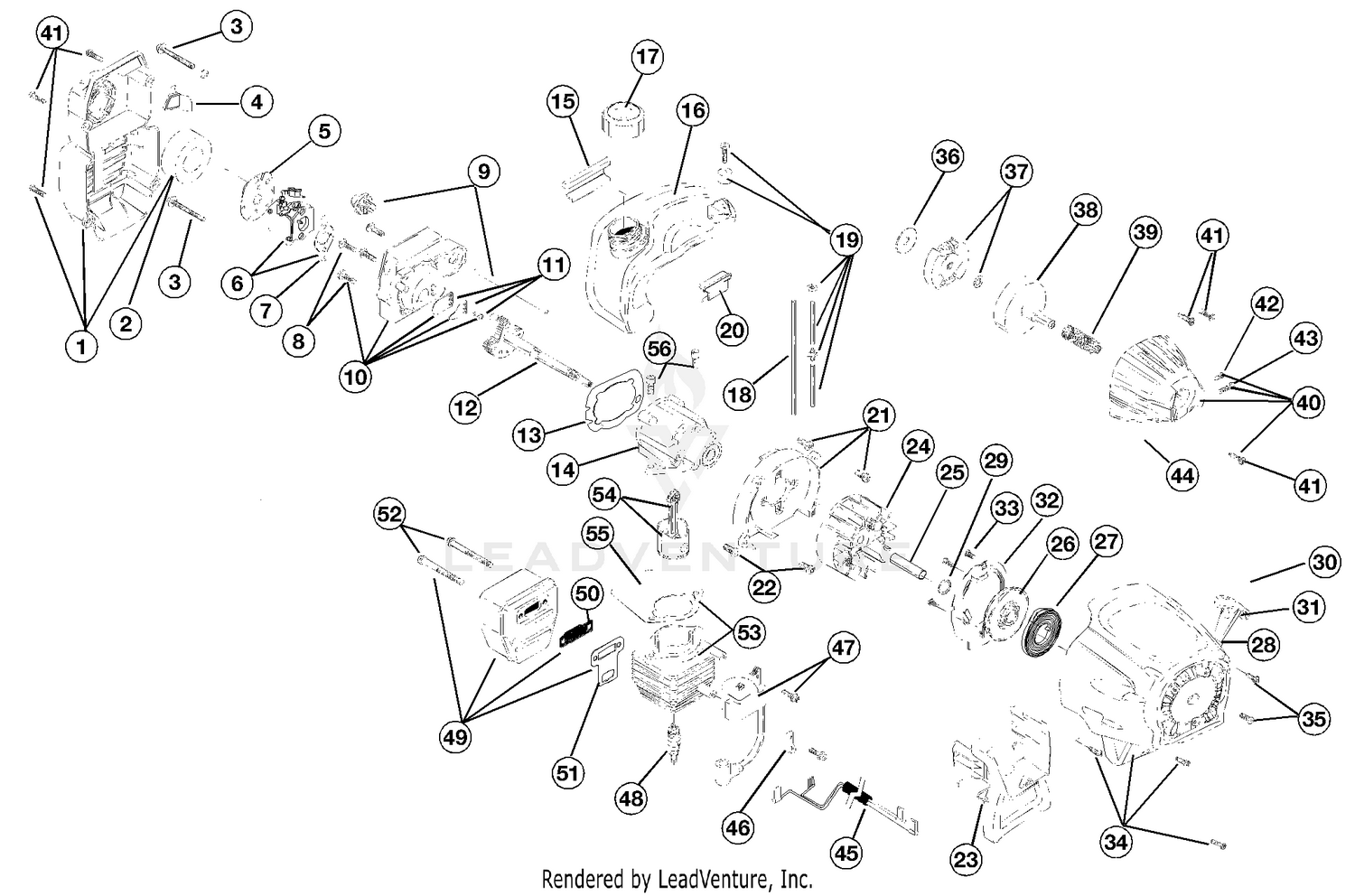

| Ref | Part Number | Description |
|---|
| 2 |
791-180350B |
Air Cleaner Filter Price: $9.24 |
| 3 |
791-180351 |
ASSEMBLY, CARBURETOR MO Not Available Price: |
| 4 |
753-04227 |
CHOKE LEVER Not Available This part replaces 753-1193. Price: |
| 5 |
753-04419 |
PLATE ASSEMBLY:CHOKE:WV Not Available This part replaces 753-1194. Price: |
| 7 |
791P610675 |
CARBURETOR GASKET This part replaces 791-610675. Price: $3.83 |
| 8 |
791-181860 |
SCREW, 10-24X.75 T-2 Not Available Price: |
| 9 |
791-683974B |
Primer and Hose Assembly This part replaces 791-181801. Price: $19.93 |
| 11 |
791-684451 |
REED VALVE ASSEMBLY Not Available Price: |
| 12 |
791-182790 |
ASSEMBLY, POWER SHAFT Not Available Price: |
| 13 |
753-1208 |
Carburetor Mount Gasket Price: $15.73 |
| 15 |
791-612134 |
PAD, REAR MOUNT PAD Not Available Price: |
| 17 |
791-182612 |
Fuel Cap Assembly Price: $17.64 |
| 18 |
791-181086 |
Fuel Return Line This part replaces 791-181168. Price: $6.20 |
| 19 |
791-682039 |
Fuel Line Assembly Price: $14.59 |
| 20 |
791-145308 |
PAD, FRONT MOUNTING Not Available Price: |
| 21 |
791-153520 |
ASSEMBLY, SHROUD ASSEMB Not Available Price: |
| 22 |
791-181861 |
SCREW, 1/4-20X.562 F Not Available Price: |
| 23 |
753-04611 |
EXTN-SHROUD W/STAN Not Available This part replaces 791-182064. Price: |
| 24 |
753-05240 |
Flywheel Assembly This part replaces 791-181867. Price: $67.61 |
| 25 |
791-181065 |
SPACER Not Available Price: |
| 26 |
753-1199 |
PULLEY:START Not Available Price: |
| 27 |
791-613102 |
Recoil Spring Price: $24.26 |
| 28 |
753-1200 |
GDE:ROPE:START Not Available Price: |
| 29 |
791-181441 |
ASSEMBLY, PULLEY RETAIN Not Available Price: |
| 30 |
631-04164B |
Pull Handle This part replaces 791-181079. Price: $3.38 |
| 31 |
791-613102 |
Rope Price: $24.26 |
| 32 |
753-04417 |
PLATE:PRESSURE Not Available This part replaces 753-1201. Price: |
| 33 |
1755 |
Screw This part replaces 753-1202. Price: $3.37 |
| 35 |
1964 |
SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89 |
| 36 |
9162-1 |
Washer This part replaces 791-182368. Price: $3.91 |
| 37 |
753-05860 |
Clutch Assembly This part replaces 791-182369. Price: $22.50 |
| 38 |
791-153592 |
Clutch Drum Assembly Price: $45.60 |
| 39 |
791-612468 |
SPRING, COMPRESSION S Not Available Price: |
| 41 |
791-181345 |
Cover Screw Price: $3.75 |
| 42 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 43 |
9689A |
Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 44 |
712-0161 |
Nut-Hex Ins L-#10- This part replaces 791-180217. Price: $4.02 |
| 45 |
791-182798 |
LEAD, WIRE AND SLE Not Available Price: |
| 46 |
791-611063 |
TAB, GROUND Not Available Price: |
| 47 |
753-1205 |
Module Assembly Price: $91.24 |
| 48 |
791-610311B |
Spark Plug Price: $13.23 |
| 50 |
791-182747 |
SCRN:SPK ARST:A-31 Not Available Price: |
| 51 |
753-04619 |
Exhaust Gasket This part replaces 791-182065. Price: $8.45 |
| 52 |
791-147575 |
ASSEMBLY, MUFFLER MOUNTING BOLTS Not Available Price: |
| 54 |
753-04367 |
PISTON ASSEMBLY:W/ROD/RIN Not Available This part replaces 753-1207. Price: |
| 55 |
753-1197 |
GASKET:CYL:HTSHLD:EP Not Available Price: |
| 56 |
791-182723 |
Cylinder Bolt Price: $4.02 |
