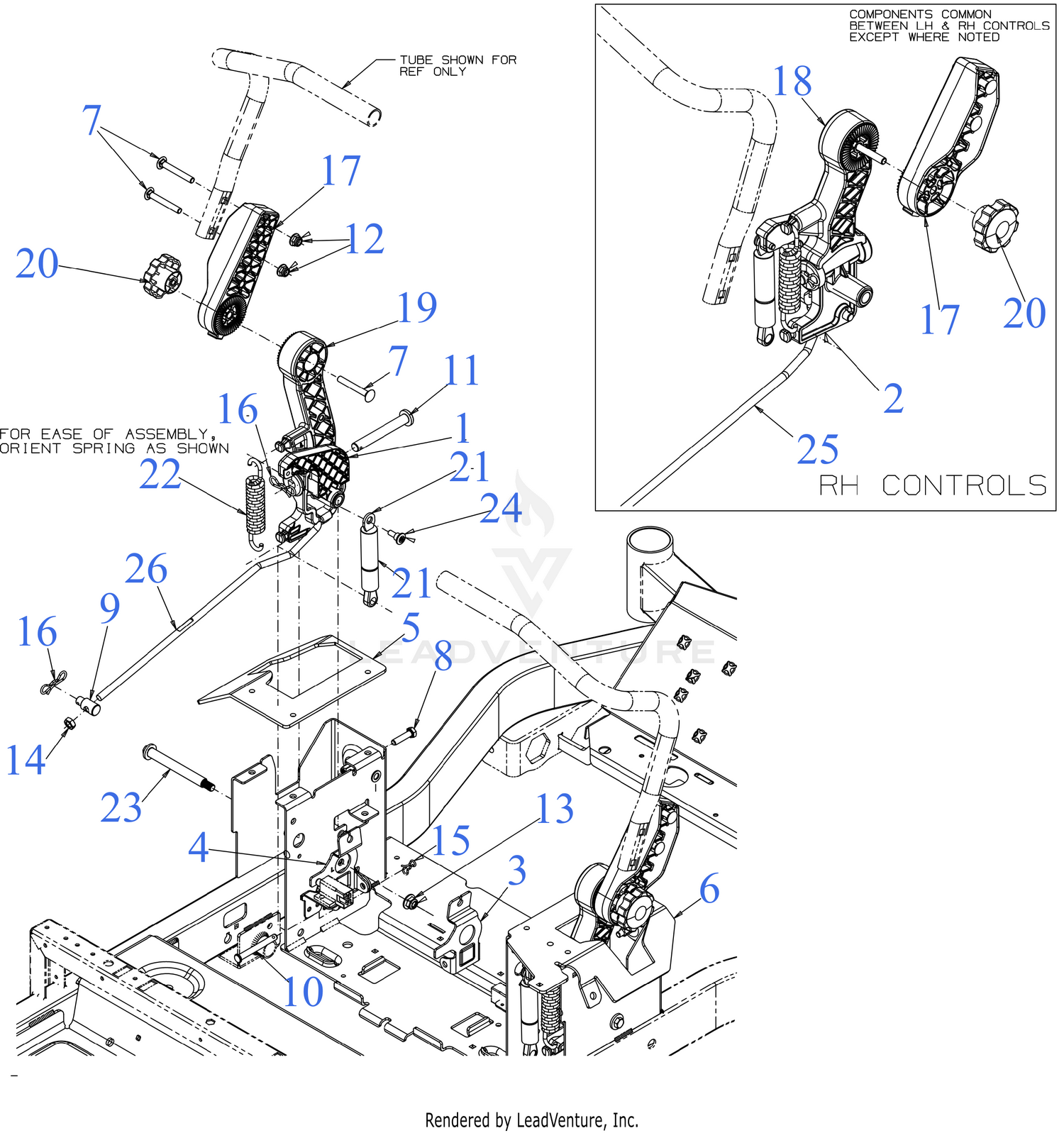

| Ref | Part Number | Description |
|---|
| 1 |
619Z05550 |
CONTROL ACTUATOR (LH) This part replaces 619-05550. Price: $36.46 |
| 2 |
619Z05551 |
CONTROL ACTUATOR (RH) This part replaces 619-05551. Price: $36.46 |
| 3 |
703E13761A |
BRAKE CABLE LEVER (RH) Price: $4.08 |
| 4 |
703E15661A |
BRAKE CABLE LEVER (LH) Price: $4.36 |
| 7 |
710-0572 |
BOLT 5/16-18 x 2.50 GR1 Price: $3.75 |
| 8 |
710-08694 |
SCREW 5/16-18 x 1.25 GR5 Price: $5.48 |
| 9 |
711-07921 |
CONTROL ROD FERRULE Price: $4.69 |
| 10 |
911-0813 |
CLEVIS PIN 5/16 DIA Price: $5.94 |
| 11 |
711-1206 |
CLEVIS PIN Price: $11.71 |
| 12 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 13 |
712-04065 |
NUT Price: $3.68 |
| 14 |
712-0711 |
HEX JAM NUT 3/8X24 Price: $3.90 |
| 15 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 16 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 17 |
719-07354 |
UPPER HANDLE (ADJUSTABLE) Price: $24.43 |
| 18 |
719-07372 |
LAPBAR ACTUATOR (RH) (SILVER) Price: $36.63 |
| 19 |
719-07373 |
LAPBAR ACTUATOR (LH) (SILVER) Price: $36.63 |
| 20 |
720-05521 |
HAND KNOB 5/16-18 Price: $10.17 |
| 21 |
727-05654 |
DAMPNER CYLINDER This part replaces 727-05274A. Price: $38.57 |
| 22 |
732-05966A |
EXTENSION SPRING .57 x 5.38 Price: $7.81 |
| 23 |
738-05694 |
SHOULDER SCREW .491x3.937 3/8-16 Price: $4.69 |
| 24 |
738-06055 |
SHOULDER SCREW .394X.280:1/4-14 Price: $2.33 |
| 25 |
747-07430A |
HYDRO CONTROL ROD (RH) Price: $13.68 |
