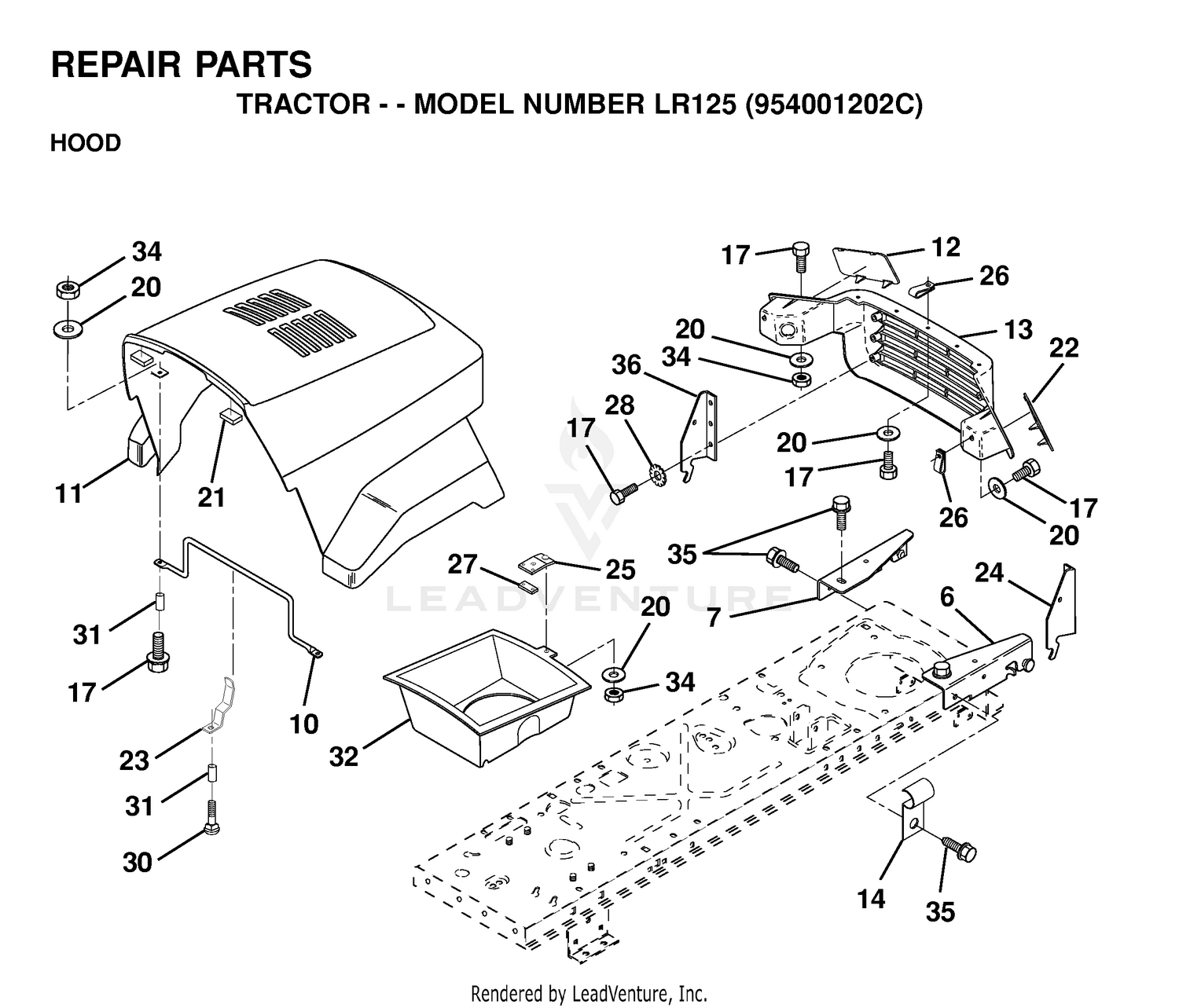

| Ref | Part Number | Description |
|---|
| 3 |
532128445 |
BRACKET HOOD Price: $2.99 |
| 6 |
532140051 |
BRACKET ASSY HOOD Price: $3.68 |
| 7 |
532140050 |
BRACKET ASSY Price: $3.99 |
| 10 |
532130850 |
BRACE HOOD Price: $2.99 |
| 11 |
532140142 |
HOOD - LR Price: $339.99 |
| 12 |
532130986 |
LENS.LR.LH.HUSQV. Price: $12.99 |
| 13 |
532404673 |
GRILLE.KIT.SERVICE.HUSQ.LR This part replaces 532130984. Price: $449.99 |
| 14 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 17 |
596582501 |
Bolts This part replaces 874780410. Price: $2.99 |
| 20 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 21 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 22 |
532130985 |
LENS RH Price: $13.22 |
| 23 |
532139969 |
HOOD LATCH Price: $3.45 |
| 24 |
532142873 |
BRACKET PIVOT Price: $2.99 |
| 25 |
532138740 |
CLIP Price: $5.46 |
| 26 |
532052921 |
CLIP TINNERMAN Price: $2.68 |
| 27 |
532131028 |
CLIP Price: $2.64 |
| 28 |
811050400 |
Washer, Lock, External Tooth 1/4 Price: $5.99 |
| 32 |
532123840 |
DUCT,AIR Price: $14.21 |
| 33 |
874780424 |
Bolt Hex Fin 1/4-20 Unc x 1-1/2 Price: $3.99 |
| 34 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
