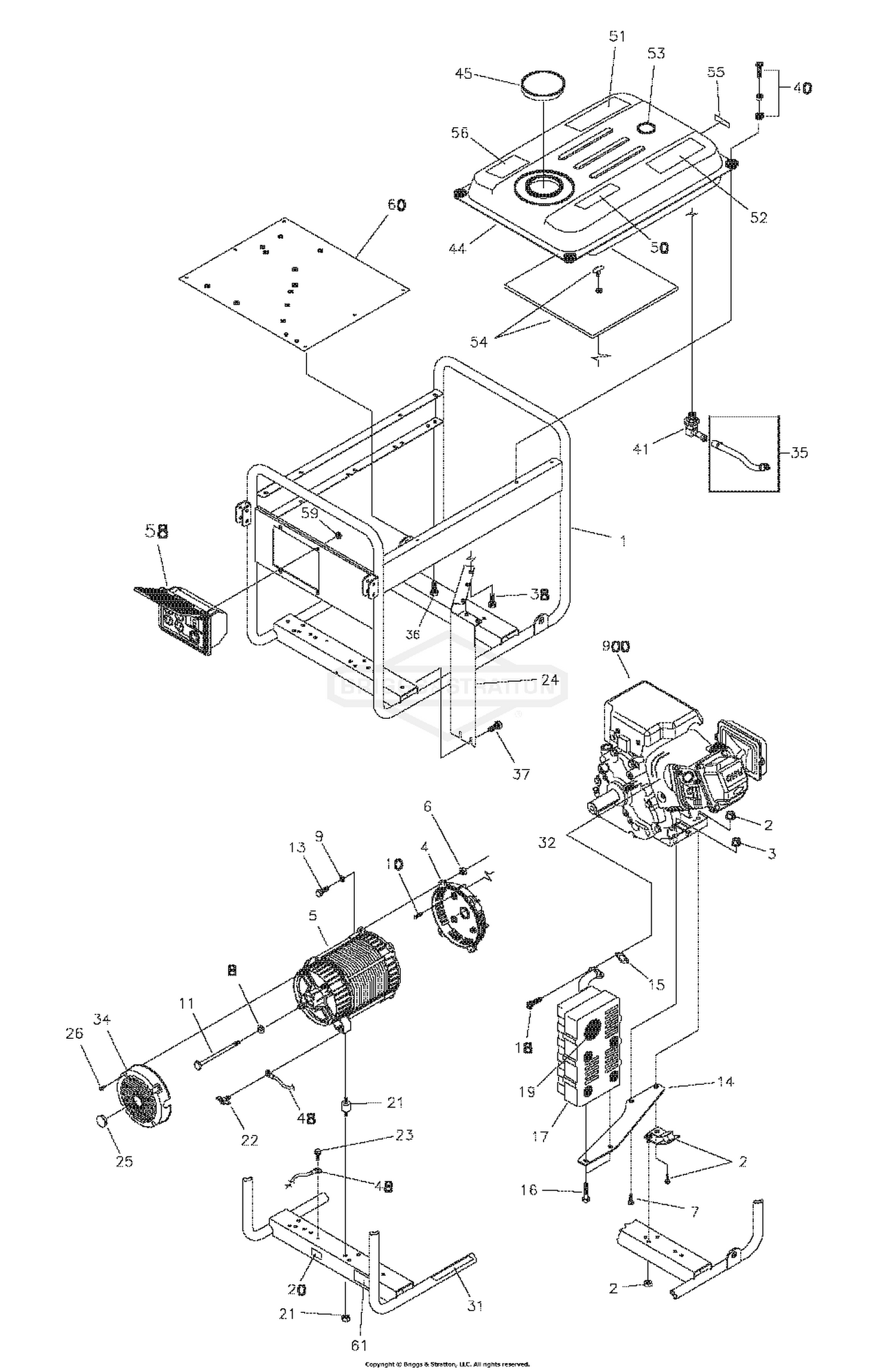

| Ref | Part Number | Description |
|---|
| 2 |
194150GS |
KIT, Vibration Mount, 45° Price: $12.92 |
| 3 |
67989GS |
NUT, Flange Serrated, M8 Price: $2.77 |
| 4 |
190220GS |
ADAPTER, Engine Price: $40.82 |
| 7 |
195398GS |
SCREW, Pan Head Torx, M8 1.25 x 35 Price: $2.49 |
| 8 |
96796GS |
WASHER, 8.4 x 22.2 x 3 Price: $2.79 |
| 10 |
190274BGS |
SCREW, 3/8-16 x 1 Price: $3.41 |
| 11 |
187365FGGS |
CAPSCREW, Hex Head, 5/16-24 x 7.44 Price: $20.99 |
| 14 |
189009GS |
BRACKET, Muffler Price: $20.75 |
| 15 |
695398 |
GASKET, Exhaust Price: $6.62 |
| 17 |
189008GS |
MUFFLER Price: $60.60 |
| 18 |
204885GS |
SCREW, M8 -1.25 x 20 Price: $2.25 |
| 19 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 20 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 21 |
194153GS |
MOUNT-VIBRATION Price: $10.54 |
| 22 |
87680GS |
NUT, Wing, M6-1 Price: $6.57 |
| 24 |
194390GS |
HEAT SHIELD Price: $75.99 |
| 25 |
191190GS |
CAP Price: $3.09 |
| 26 |
74908GS |
TAPTITE, M5 - 0.8 x 10 Price: $2.69 |
| 31 |
200310GS |
DECAL, Warning, Exhaust Price: $14.83 |
| 34 |
195422GS |
COVER, RBC Plastic with Cap Price: $12.35 |
| 36 |
192376GS |
SCREW, Thread Forming, 12-24 x 1/2 Price: $2.89 |
| 37 |
56893GS |
CRIMPTITE, 10-24 x 1/2 Price: $1.95 |
| 38 |
B2153GS |
SCREW, Self Driller, 12-14 x 7/8 Price: $3.95 |
| 40 |
199256GS |
BOLT, Shoulder, M6 - 1.0 w/washer Price: $1.60 |
| 41 |
310574GS |
VALVE, Fuel This part replaces 193272GS. Price: $9.40 |
| 45 |
189135GS |
CAP, Tank Price: $17.23 |
| 48 |
195373GS |
WIRE, Ground Price: $1.85 |
| 50 |
188333GS |
DECAL, Instruction Fuel Level Price: $20.85 |
| 51 |
194984GS |
DECAL, Warning, French Price: $13.99 |
| 52 |
94480GS |
DECAL, Instruction, Start, French Price: $14.83 |
| 53 |
192724GS |
GUAGE, Fuel Price: $6.70 |
| 54 |
194448GS |
KIT, Insulation w/Clip Price: $25.55 |
| 55 |
197797GS |
DECAL, Fuel Shutoff Price: $7.41 |
| 56 |
202997GS |
DECAL, Warning, CO Price: $12.80 |
| 58 |
202530GS |
ASSEMBLY, Control Panel Price: $172.50 |
| 59 |
189164GS |
PALNUT, 3/16 Price: $3.28 |
| 60 |
204594GS |
HEAT SHIELD Price: $78.99 |
| 61 |
200311GS |
DECAL, Neutral Bonded Price: $6.99 |
