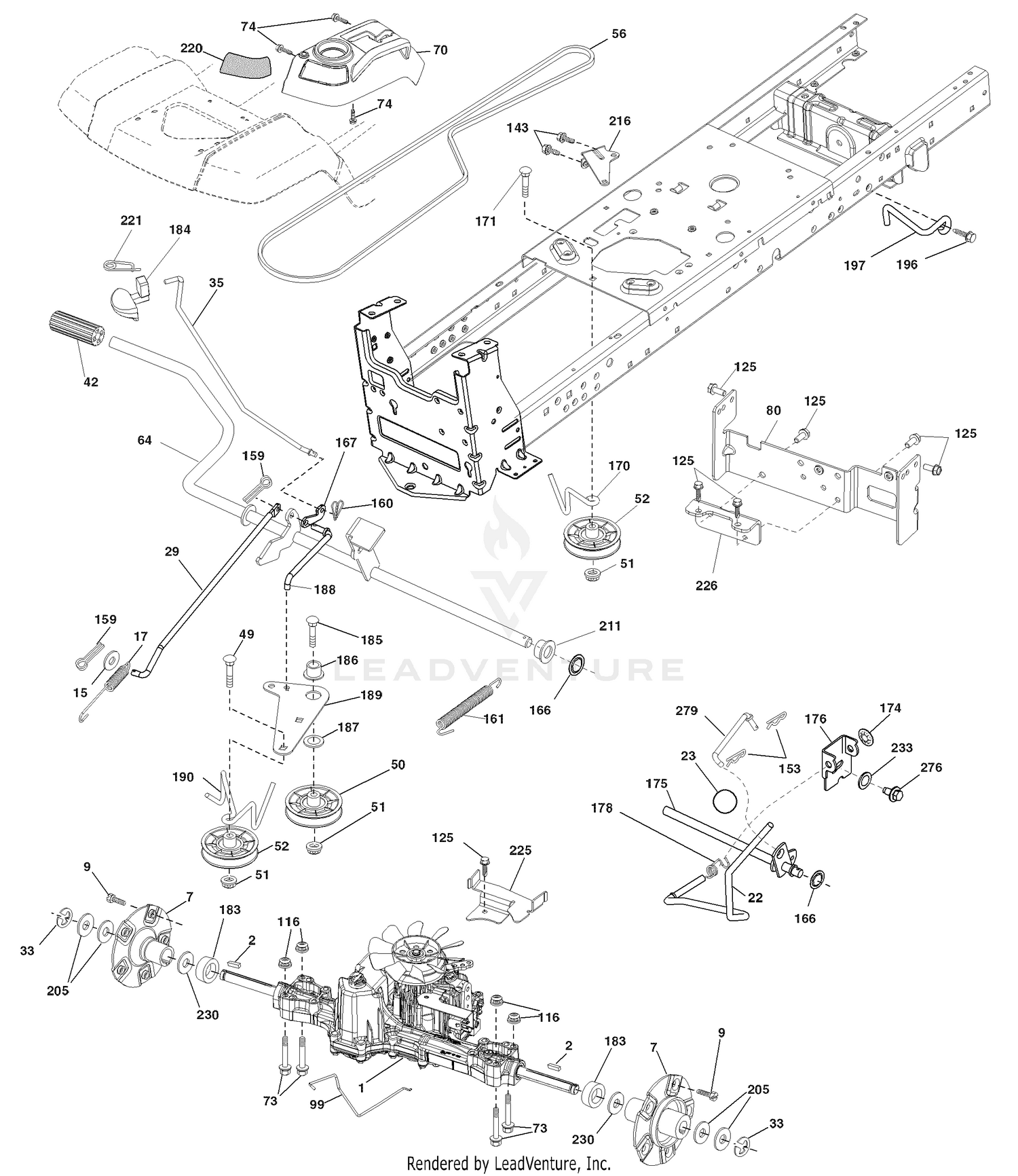

| Ref | Part Number | Description |
|---|
| 1 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 1 |
532414145 |
TRANSAXLE.K66.AD.FCH.TG Price: $799.00 |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 2 |
75-3780 |
FAN-ENGINE Price: $367.12 |
| 3 |
75-6380 |
SHAFT-FAN Price: $141.82 |
| 4 |
104-9312 |
PIN-GROOVED Price: $1.63 |
| 5 |
98-9743 |
PULLEY-DRIVE, FAN Price: $104.17 |
| 6 |
104-9259 |
WASHER-THRUST Price: $21.05 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 7 |
531149201 |
SERVICE KIT HUB.ASM HUB.ASM.WH This part replaces 532199837. Price: $39.99 |
| 8 |
104-0001 |
SPACER Price: $25.45 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 9 |
75-4450 |
HUB This part replaces 75-4450-03. Price: $205.03 |
| 10 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 11 |
67-1630 |
SPACER Price: $28.84 |
| 12 |
323-6 |
SCREW-HH Price: $0.66 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
98-4530-03 |
SUPPORT-FAN Price: $349.24 |
| 16 |
98-4575-03 |
LEVER-IDLER, FAN Price: $43.57 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
532401072 |
SPRING.BRAKE.K46 Price: $6.99 |
| 18 |
98-9744 |
BELT-FAN Price: $35.29 |
| 19 |
323-8 |
SCREW-HH Price: $1.20 |
| 20 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 21 |
98-9740 |
BRACKET-FAN, SUPPORT Price: $42.56 |
| 22 |
322-2 |
SCREW-HH Price: $0.69 |
| 22 |
532197329 |
ROD.SHIFT.FENDER.STGT. Price: $74.99 |
| 23 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 24 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 25 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 26 |
98-9741 |
BRACKET-MOUNT, FAN Price: $44.53 |
| 27 |
98-4561-03 |
SHIELD-ALTERNATOR Price: $56.98 |
| 28 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 29 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 29 |
532407245 |
ROD.BRAKE.K66 Price: $14.99 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
33114-016 |
SCREW-HH Price: $0.27 |
| 32 |
322-4 |
SCREW-HH Price: $0.35 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532125907 |
BELT Price: $34.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 70 |
532439660 |
SUBASM.CONSOLE.HUSQ.GT.HYDRO This part replaces 532400298. Price: $79.99 |
| 73 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
589333402 |
STRAP.PNT.TORQUE.K66.EDIP This part replaces 532407182. Price: $22.99 |
| 99 |
532415744 |
ROD.SPRING.BYPASS.K66.GT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
532408539 |
SHAFT.ASM.SHFT.T2.TLT Price: $22.99 |
| 176 |
532196214 |
ARM.CLEVIS.ROD.SHIFT Price: $6.99 |
| 178 |
532197456 |
SPRING.SHIFT.GT2006 Price: $4.99 |
| 183 |
532197357 |
SPACER.AXLE.HG.TEX Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 205 |
532123800 |
WASHER Price: $3.99 |
| 211 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $5.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 225 |
532407311 |
KEEPER.BELT.TRANSAXLE.K66 Price: $11.99 |
| 226 |
532407109 |
BRACKET.MOUNT.TORQUE.K66.TG Price: $8.99 |
| 230 |
532007563 |
WASHER T Price: $6.99 |
| 233 |
596135201 |
Washers This part replaces 532405296. Price: $2.99 |
| 276 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
