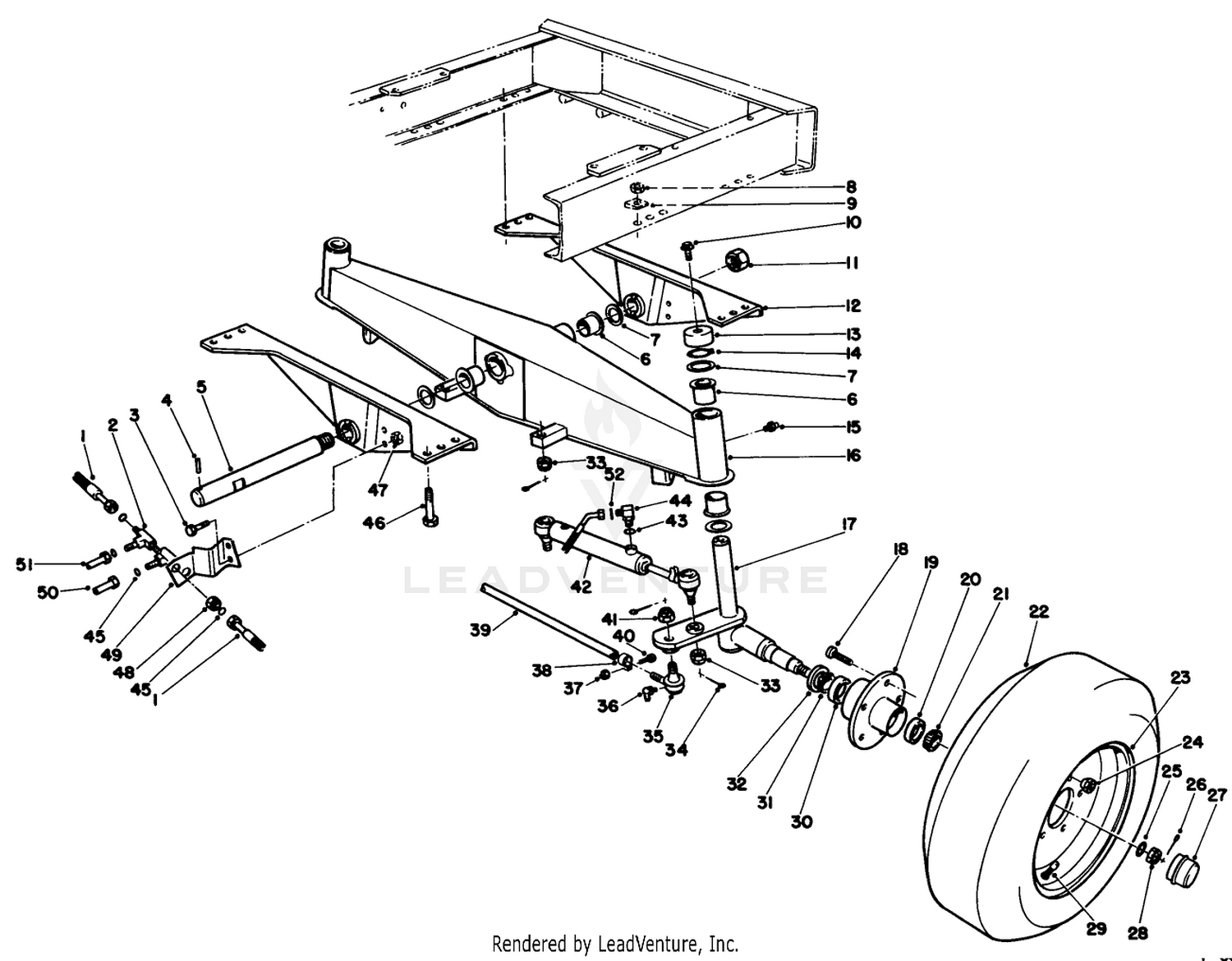

| Ref | Part Number | Description |
|---|
| 1 |
69-5510 |
HOSE ASM Price: $77.25 |
| 2 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 4 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 5 |
71-2590 |
SHAFT-PIVOT Price: $228.41 |
| 6 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 7 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 8 |
32128-23 |
NUT-HF Price: $1.51 |
| 9 |
3290-216 |
WASHER Price: $3.83 |
| 10 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 11 |
3296-68 |
NUT-LOCK, NI Price: $14.67 |
| 12 |
69-7960-01 |
SUPPORT-AXLE This part replaces 69-7960. Price: $461.54 |
| 13 |
69-8890 |
CAP-SPINDLE Price: $13.32 |
| 14 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
69-7420-01 |
DISCONTINUED This part replaces 69-7420. Price: Call Us |
| 17 |
98-4434 |
LH WHEEL SPINDLE ASM This part replaces 69-7370. Price: $631.93 |
| 18 |
69-2990 |
STUD-WHEEL Price: $4.85 |
| 19 |
117-8969 |
HUB ASM This part replaces 69-2960. Price: $336.24 |
| 20 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 21 |
254-92 |
CONE-BEARING, OUTER Price: $15.84 |
| 22 |
69-9880 |
TIRE (23X10.5-12) 6-PLY Price: $189.93 |
| 23 |
217-116 |
WHEEL Price: $258.19 |
| 24 |
23-7270 |
NUT-LUG Price: $10.37 |
| 25 |
49-0010 |
PIVOT SPACER Price: $3.39 |
| 26 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 27 |
69-2970 |
CAP-HUB Price: $20.74 |
| 28 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 29 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 30 |
254-107 |
CUP-BEARING, TAPERED Price: $9.93 |
| 31 |
254-106 |
CONE-BEARING, TAPERED Price: $19.51 |
| 32 |
69-2980 |
SEAL Price: $33.94 |
| 33 |
32136-13 |
NUT-SHH Price: $2.85 |
| 34 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 35 |
110-6141-03 |
RH TIE ROD END ASM This part replaces 2116-4. Price: $148.18 |
| 36 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 38 |
2412-7 |
CLAMP ASM Price: $23.32 |
| 39 |
110-6143-01 |
TIE ROD ASM This part replaces 3-3710. Price: $513.93 |
| 41 |
32136-2 |
NUT-SHH Price: $3.55 |
| 42 |
132-1308 |
HYD CYLINDER ASM This part replaces 69-1960. Price: $813.52 |
| 43 |
237-78 |
O-RING Price: $3.85 |
| 44 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 45 |
237-22 |
O-RING Price: $2.43 |
| 46 |
325-6 |
SCREW-HH Price: $1.42 |
| 47 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 48 |
340-70 |
NUT-LOCK Price: $2.10 |
| 49 |
69-9400 |
DISCONTINUED Price: Call Us |
| 50 |
69-6010 |
TUBE-HYD Price: $162.05 |
| 51 |
69-6020 |
TUBE-HYD Price: $138.98 |
